ABB UAC383AE01 HIEE300890R0001 LD-MUB-01 Measurement Unit Board

UAC383AE01 HIEE300890R0001 LD-MUB-01 Measurement Unit Board

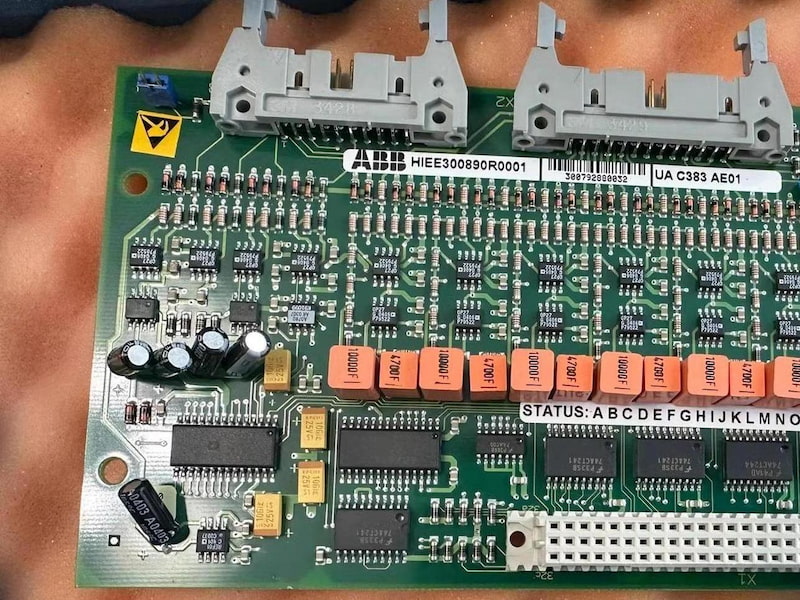

The UAC383AE01 measurement unit board is mounted on the EXU ( Excitation Unit ) swivel frame cabinet, between the measurement sensor and the CCB board ( Converter Control Board) with a lateral connection.

This measurement unit board is used to measure signals and output signals between the rectifier control board and the measurement interface board, it can form an electrical interface between the power stage and the electro-weak part.

The measurement unit board is controlled by CCB board, this board contains 3 analog-to-digital conversions and can read in 8 analog signals simultaneously.

One or two (brushless excitation) measurement unit boards are able to be connected to the CCB board via digital expansion channels. On the MUB boards, the addressing capability is ensured by jumper X4.

Key Features

· Filtering and digital AC sampling

· Calculation of magnetic field currents and voltages, input currents and voltages of SCR rectifiers, active and reactive power, power factor and generator frequency.

· Power System Stabilizers (PSS) with accelerated power and frequency input signals.

· Control algorithm is based on IEEE Std. 421-2A

· Adaptive power system stabilizers (replacement for PSS)

Technical Specifications
