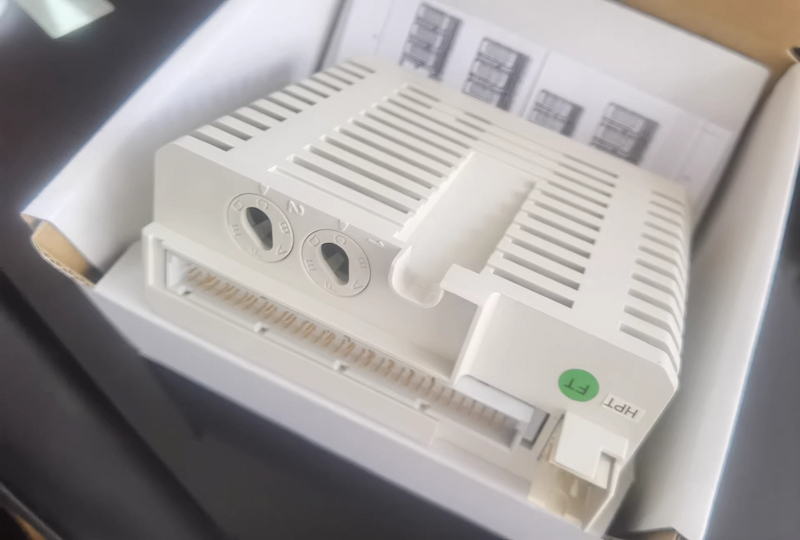

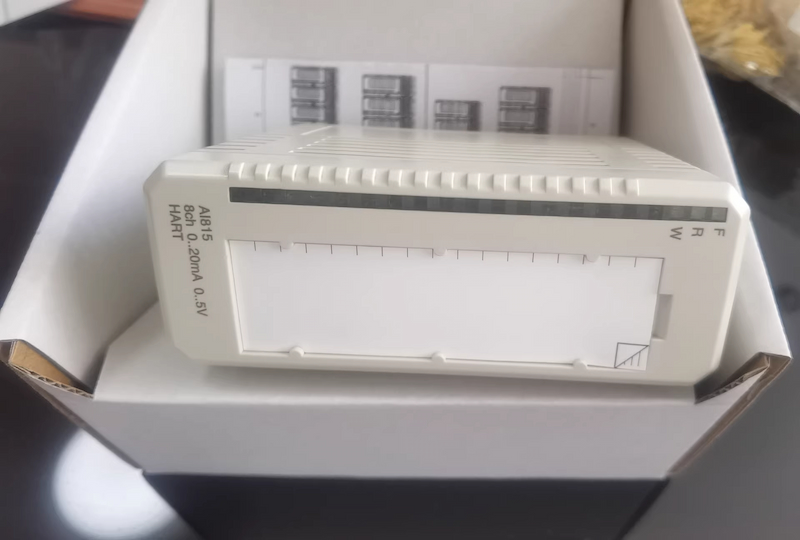

ABB AI815 3BSE052604R1 Analog Input Module

ABB AI815 3BSE052604R1 Analog Input Module

The AI815 is a analog input module, this module can be configured for voltage or current inputs. Current and voltage signals cannot be mixed on the same I/O module. Please Contact Us For Availability!

  • Brand :

    ABB
  • Part number :

    AI815 3BSE052604R1
  • Description :

    Analog Input Module
  • Origin :

    Sweden
  • Condition :

    New
  • Dimension :

    45 mm x 102 mm x 119 mm
  • Weight :

    0.23 kg
  • Payment :

    Bank Transfer
Contact Us:



AI815 3BSE052604R1 Analog Input Module



The AI815 Analog Input Module has 8 channels. The modules can be configured for voltage or current inputs. Current and voltage signals cannot be mixed on the same I/O module. The voltage and current input is able to withstand an over voltage or under voltage of at least 11 V d.c.



The input resistance for voltage input is greater than 10 M ohm, and the input resistance for current input is 250 ohm. The module distributes the external HART compatible transmitter supply to each channel. This adds a simple connection to distribute the supply to 2-wire or 3-wire transmitters. The transmitter power is supervised and current limited. If an external power supply is used for feeding HART transmitters, the power supply must be HART compatible.



Features and benefits



· 8 channels for 0...20 mA, 4...20 mA, 0...5 V or 1...5 V d.c., single ended unipolar inputs

· 1 group of 8 channels isolated from ground

· 12 Bit resolution

· Current limited transmitter supply per channel

· HART pass-through communication



Technical Specifications

Manufacturer ABB
Part Number AI815
Ordering Information 3BSE052604R1
Product Catalog S800 I/O
Description Analog Input Module
Voltage 24 Vdc
Current 50 mA
Dimensions 45 mm x 102 mm x 119 mm
Weight 0.23 kg



ABB AI815



3BSE052604R1



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
