ABB PM825 3BSE010796R1 S800 Processor Module

ABB PM825 3BSE010796R1 S800 Processor Module

The Advant® Controller 80 (AC 80) is a high-performance programmable logic controller specially designed for drives.

Here are a few basic functions of the AC 80:

• Execution of fast drive control application programs

• Communication with drives

• Communication with other controllers

• Communication with S800 I/O, special I/O and fieldbus adapter units

• Modbus- protocol panel/printer port.

The AdvaBuild for Windows program suite (more specifically, the Function Chart Builder) can be used for programming, configuring and diagnosing of the AC 80. Configuring and programming the AC 80 looks and feels the same as other Advant controllers. Compatibility to the APC2 (Application Program Controller; the previous-generation controller) is preserved when using function blocks from the APC2 library.

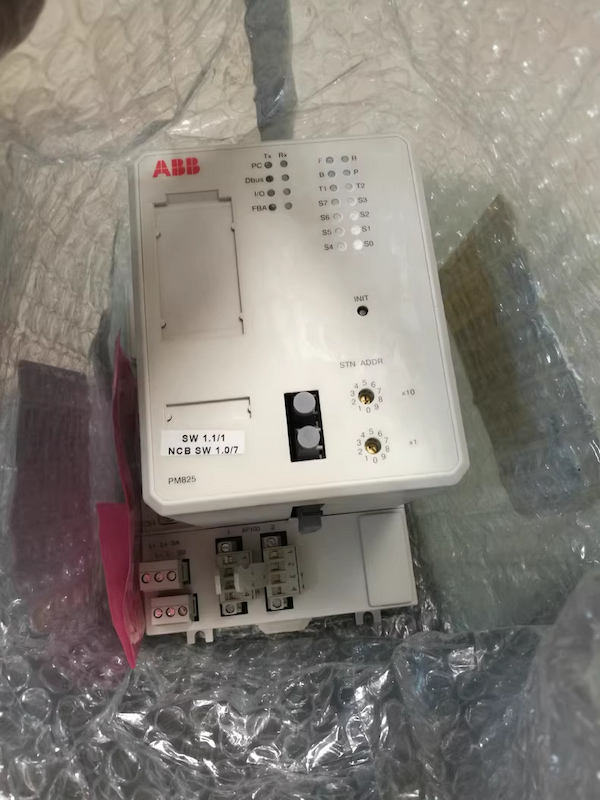

PM825, the processor module of the AC 80, is based on an MC68360 microprocessor running at 25 MHz in 16-bit mode. The system and user application programs are stored in 1024 KB and 512 KB of FLASH PROM respectively. 1024 kilobytes (512K*16bit) of RAM is available for the execution of the system and user application programs.

The AC 80 may be used either independently (stand-alone) or as part of an AF 100 (Advant Fieldbus 100) network. The user interfaces of the AC 80 are DriveWindow, Modbus-protocol panels and printers, and the Man-Machine Interface via AF 100.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
