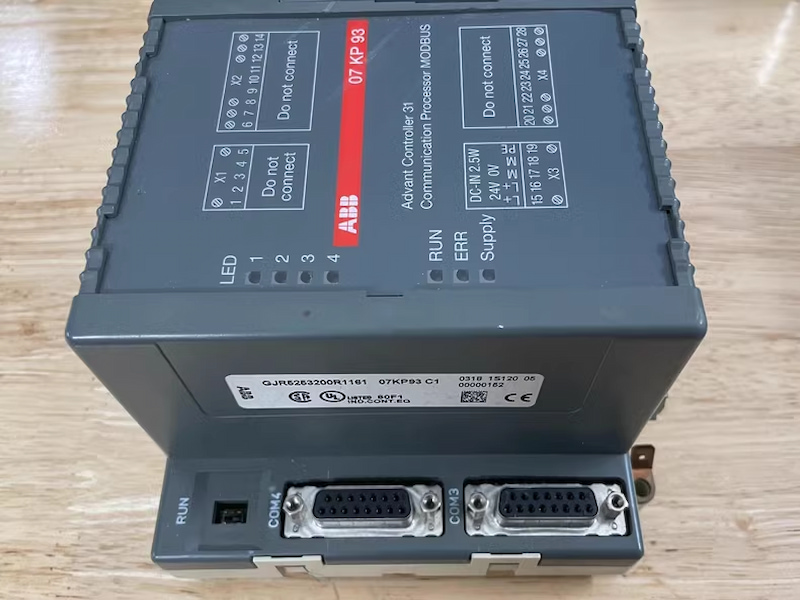

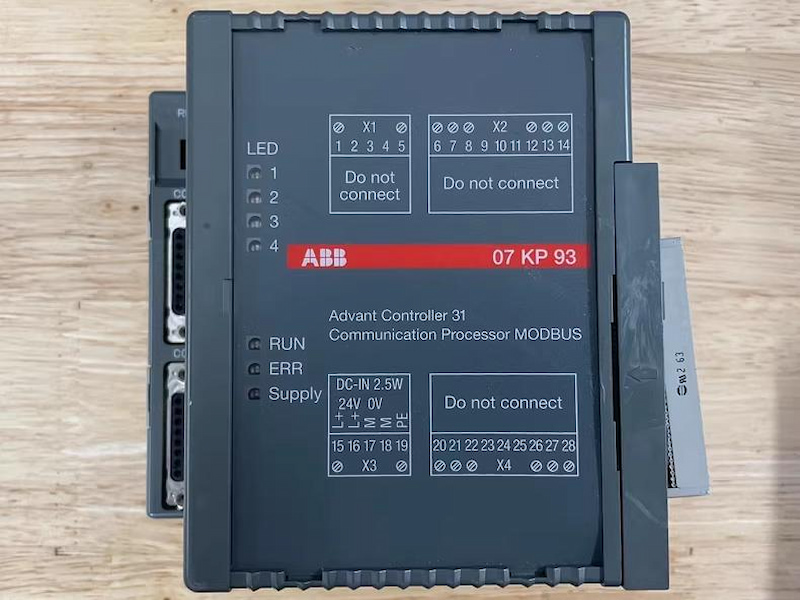

ABB 07KP93 GJR5253200R1161 Communication Processor

07KP93 GJR5253200R1161 Communication Processor

The 07 KP 93 communication processor is an interface module with 2 serial MODBUS RTU interfaces.

The communication processor allows external units to be connected to the Advant Controller 31 system using the MODBUS RTU protocol.

The most important features of the communication processor are:

· 2 serial interfaces: usable in accordance with EIA RS-232 or EIA RS-485 (COM3, COM4)

Possible operating modes:

COM3  COM4

Master Slave (Master-master does not work)

Slave    Master

Slave    Slave

· Communication with AC 31 basic units is performed with function blocks / connection elements.

Networking interface

The communication processor can be connected to AC31 basic units of the 90 series which have a networking interface. The housing of the communication processor is connected to the housing of the AC31 basic unit by a snap fit connection. The electrical connection is via a 40-pole ribbon cable with socket connector, soldered onto the 07 KP 93 side.

Mounting the expansion housing

1. Detach the cover on the basic unit from the networking interface.

2. Plug the socket strip of the 40-pole ribbon cable secured to the 07 KP 93 onto the networking connector of the basic unit.

3. Place both units on a level surface and slide them toget her so that they engage.

4. Slide in the connection part to fix the housing in position.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
