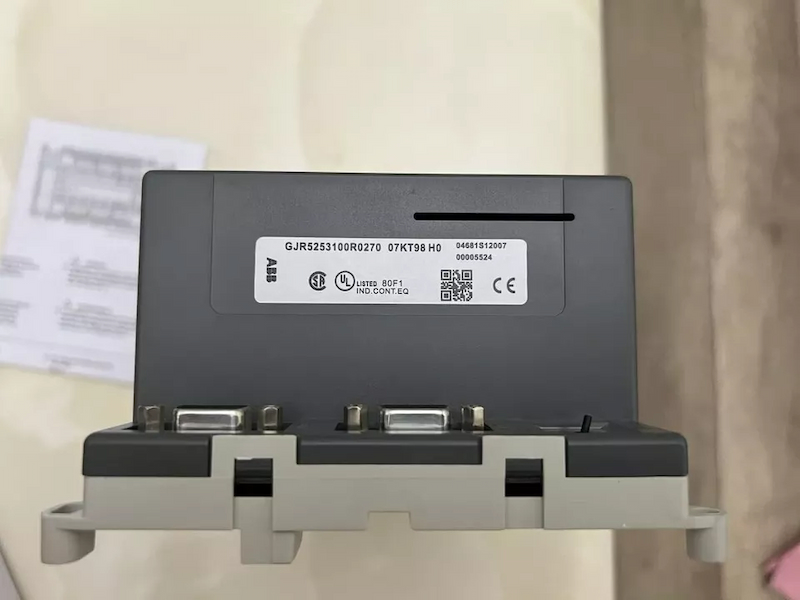

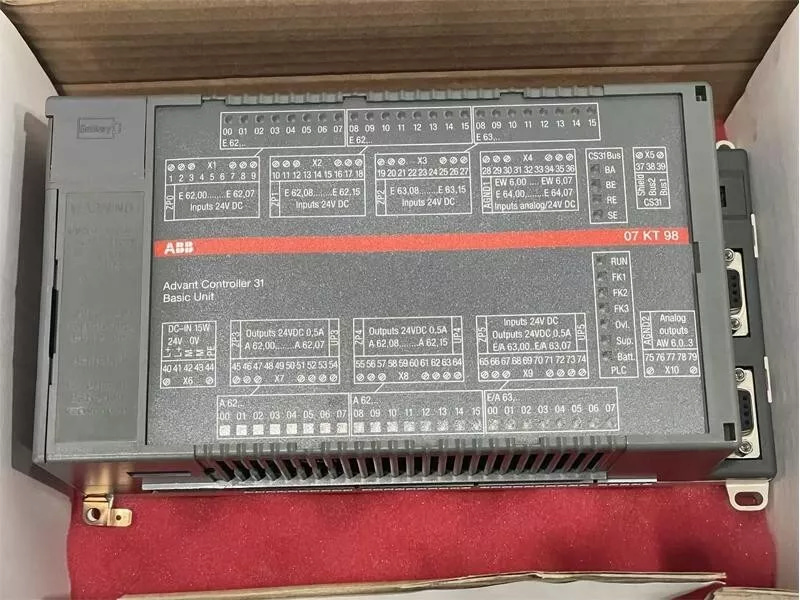

ABB 07KT98 GJR523100R0270 Base Unit

07KT98 GJR523100R0270 Base Unit

The basic unit 07 KT 98 works either as

• bus master in the decentralized automation system Advant Controller 31 or as

• slave (remote processor) in the decentralized automation system Advant Controller 31 or as

• stand-alone basic unit.

The basic unit is powered by 24 V DC.

Main Features

• 24 digital inputs with LED displays

• 16 digital transistor outputs with LED displays

• 8 digital inputs/outputs with LED displays

• 8 individually configurable analog inputs 0...10 V, 0...5 V, ±10 V, ±5 V, 0...20 mA, 4...20 mA, differential

inputs, Pt100 (2-wire or 3-wire), the analog inputs are also individually configurable as digital inputs

• 4 individually configurable analog outputs ±10 V, 0...20 mA, 4...20 mA

• 2 counters for counting frequencies up to 50 kHz, configurable in 7 different operating modes

• 1 CS31 system bus interface for system expansion

• 1 interface for connecting communication modules (e.g. 07 KP 90)

• 2 serial interfaces COM1, COM2

– as MODBUS interfaces and

– for programming and test functions

– as freely programmable interfaces

• Real-time clock

• LEDs for displaying operating conditions and error messages

• Detachable screw-type terminal blocks

• Fastening by screws or by snapping the device onto a DIN rail

• The lithium battery 07 LE 90 can be put into the battery compartment in order to

– store and backup data which is additionally contained in the RAM, e.g. the status of flags (RETAIN)

– backup the time and date (real-time clock)

• RUN/STOP switch for starting and aborting the program execution

• Extensive diagnosis functions

– self-diagnosis of the basic unit

– diagnosis of the CS31 system bus and the connected modules

• Integrated Flash EPROM for storing program and data

• Exchangeable SmartMedia Card 07 MC 90 for user data or for updating the operating system or PLC program.

Technical Specifications
