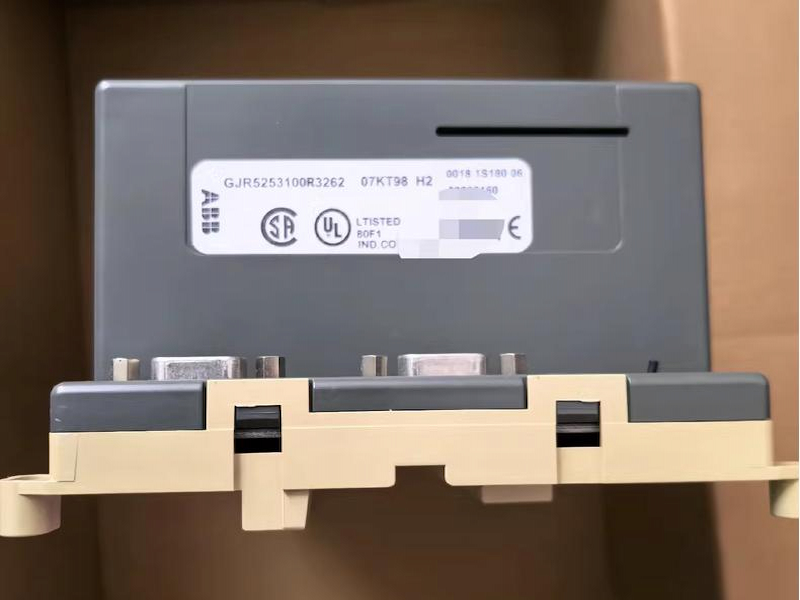

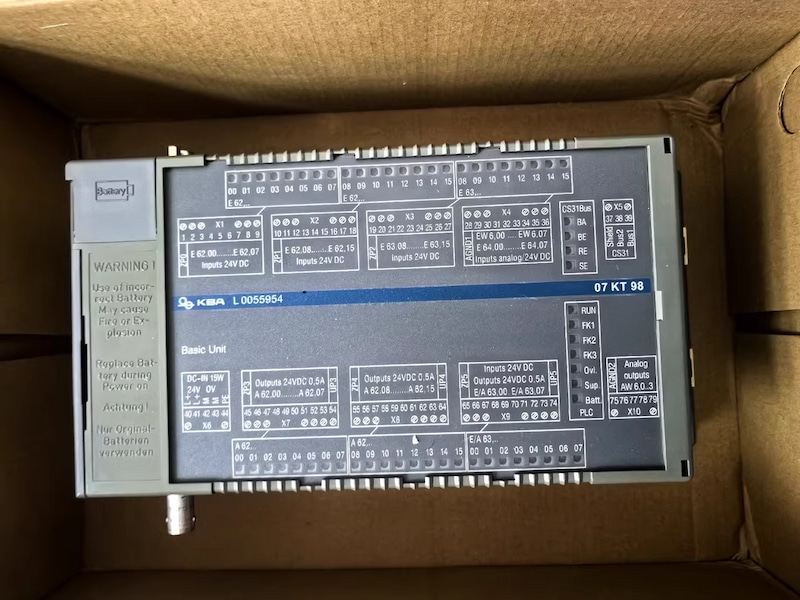

ABB 07KT98 GJR5253100R3262 Base Unit

07KT98 GJR5253100R3262 Base Unit

The basic unit 07 KT 98 are programmed using the programming system 907 AC 1131, manufactured by ABB and commercialized under the reference GJR5253100R3262.

Features:

• Operation as DP master of class 1 or as DP slave, as desired.

• Automatic setting of the operation mode during configuration.

• Operation mode DP master of class 1:

- up to 244 bytes of input data and 244 bytes of output data per slave

- 57344 I/O points max.

• Operation mode DP slave:

- up to 244 bytes of input or output data each, together max. 368 bytes

- 2944 I/O points max.

- automatic baud rate detection

Networking interface

The 07 KT 98 basic unit is equipped with a special parallel interface. It is thus possible to network it with another bus system using an additional communication processor module.

The additional communication processor has its own housing. Both housings (of the 07 KT 98 and of the communication processor) are assembled by means of a snap-on connection.

Project planning / start-up

The following has to be observed for project planning and start-up:

• Programming is performed with AC31 programming software, which can be run on commercially available IBM compatible PCs.

• Online program modification A quick modification of the user program is possible without interrupting the operation.

• Possible operating modes

– Stand-alone basic unit

– Bus master basic unit

– Slave basic unit

• Backup of data areas, i.e. saving of data during power OFF/ON, is possible with an integrated battery and/or by storing them in the Flash EPROM.

• When using the PROFIBUS DP interface, project planning is performed in the same way as with 07 KT 97.For details see chapter "System Description".

Technical Specifications
