ABB PC D235 A 3BHE032025R0101 Combined Input Output Module

ABB PC D235 A 3BHE032025R0101 Combined Input Output Module

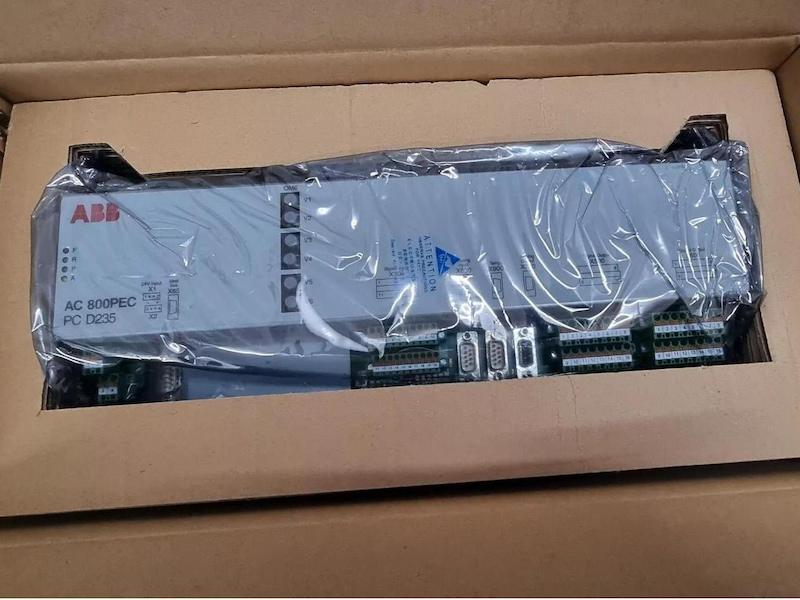

The Combined Input Output device PC D235 A is a general purpose interface device which provides digital and analog inputs and outputs. Redundancy of all system interfaces by means of two PC D235 A devices is supported.

The device is based on the AC 800PEC control platform and includes the FPGA based control module PD D205 A, application interface board UC D208 A, power supply KU D210 A and one optical module UF D202 A.

The device is powered by a redundant 24 volt supply input.

Features

· 16 Relay outputs

· 12 digital control inputs, 24V or 48V with two independent 24V polling voltage supplies

· 3 analog outputs, +/-10V

· 3 analog inputs, +/-10V or +/-20mA

· 3 interfaces to PT100 or PTC temperature sensors

· Isolated bender relay interface RS485

· 1 optical module interface with 3 optical links

· 4 system control LED’s

· Independent watchdog function

· High Reliability

· Operation temperature range –25 to +70°C

Technical Specifications
