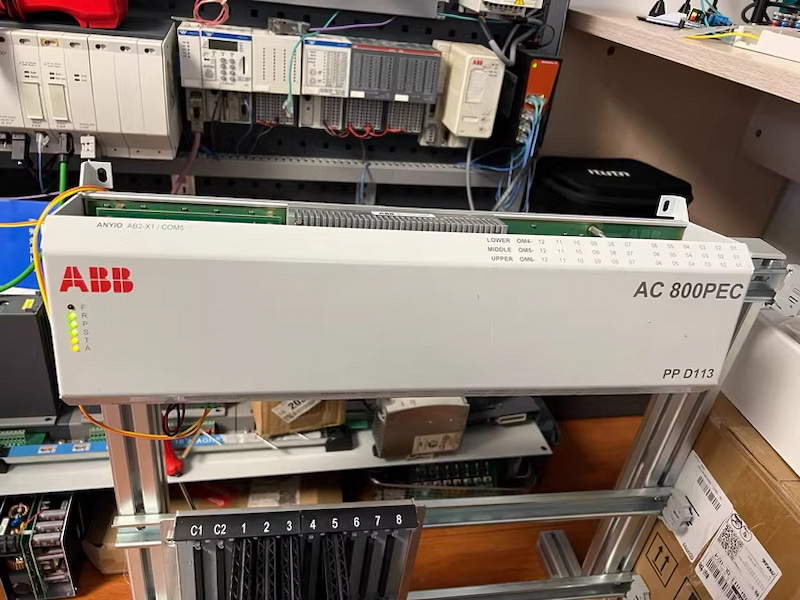

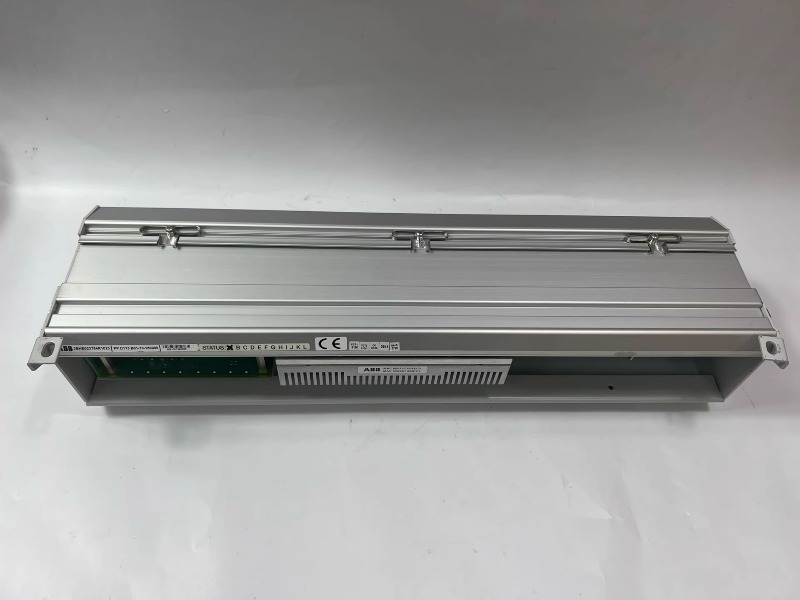

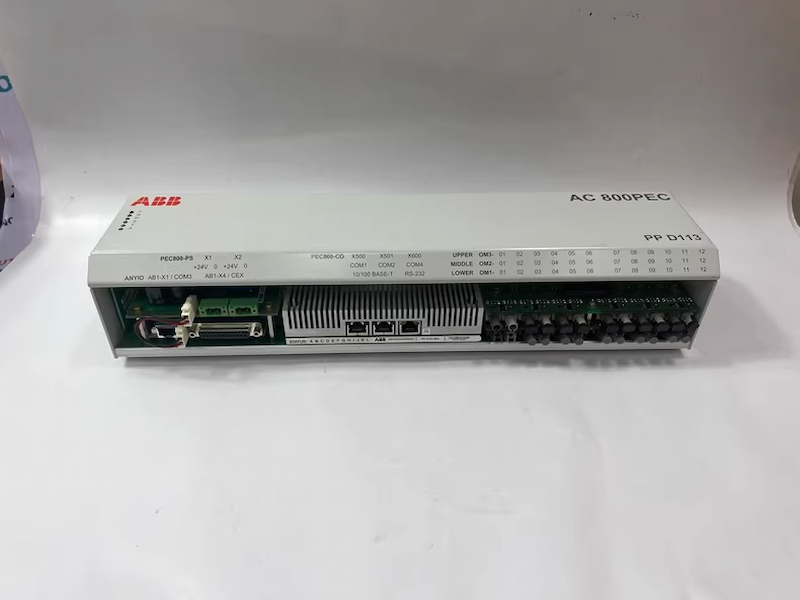

ABB PP D113 B03 3BHE023584R1023 AC 800PEC Controller

ABB PP D113 B03 3BHE023584R1023 AC 800PEC Controller

The PP D113 AC 800PEC Controller  comprises a low power circuit with high reliability. The hardware can be configured freely, depending on the process requirements and the selected communication with the upper control.

The AC 800PEC controller module contains the processor, the optical interfaces to the peripheral I/O, the field bus, and interfaces to the upper control:

• Base unit AC 800PEC BP (backplane with slots for mounting the processor, the power supply, and the optical and communication modules)

• Processor module AC 800PEC CPU

mounted on the AC 800PEC BP. The CPU is a fully-featured 750 MHz RISC processor with a 64-bit IEEE Floating-Point-Unit (FPU). It is optimized for applications with very fast control cycles

• Two AnyIO interfaces, each consisting of

– an AnyBus®-S slot

– an additional AnyIO extension slot for an AC 800PEC CEX interface or special applications

• Up to 6 AC 800PEC optical modules for fiber-optic links to various I/O modules.

Programs and data are stored in a robust solid state 16 MB Flash memory, which is formatted as a file disk. Active programs are operating out of the cached 64 MB SDRAM.

Technical Specifications
