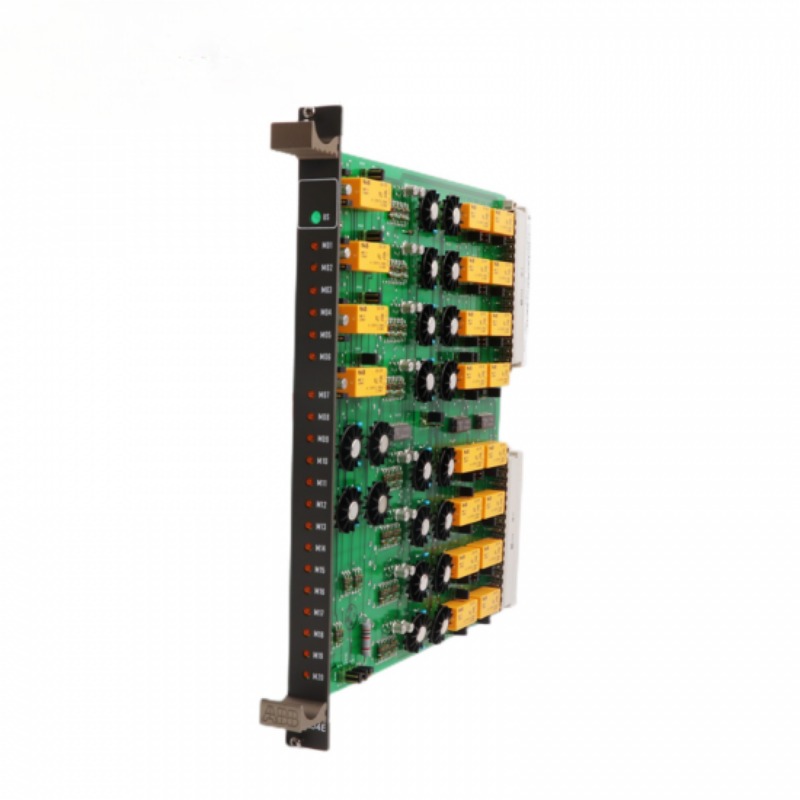

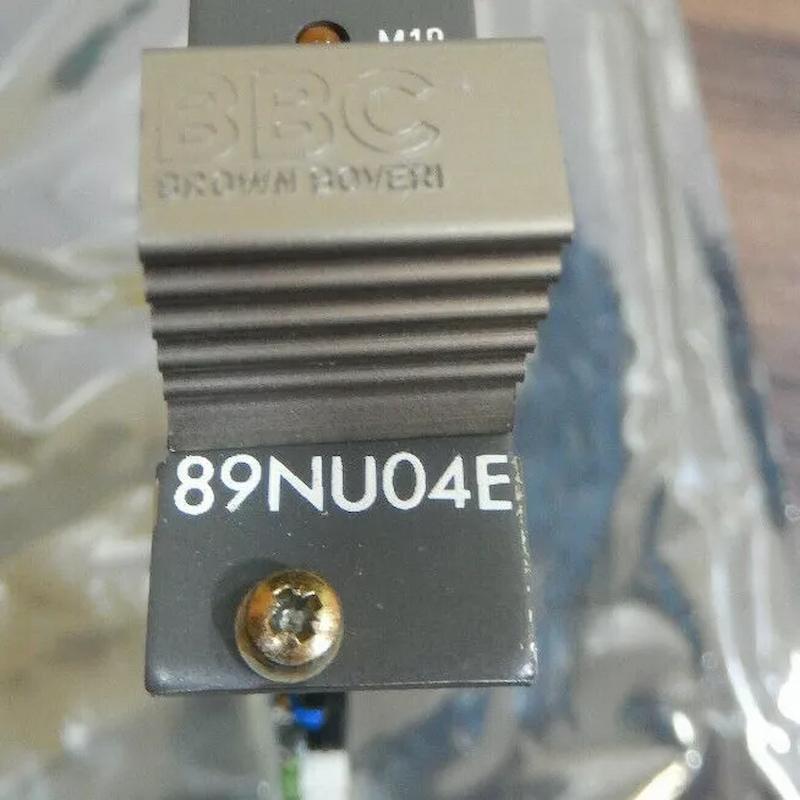

ABB 89NU04B-E GKWE853000R0200 Annunciation Module

89NU04B-E GKWE853000R0200 Annunciation Module

The annunciation module 89NU04 is used both in PROCONTROL multi-purpose processing stations and in monitoring stations.

It is used on the one hand for displaying different disturbance annunciation signals (generated in the station) by means of light emitting diodes on the front of the module.

On the other hand, these signals are transferred simultaneously via the appropriate outputs to the alarm annunciation system and passed on to the control system operator station.

The module is available in two versions:

89 NU04-E/R1 with 16 function units; for use in multi-purpose processing stations.

89 NU04-E/R2 with 20 function units; for use in monitoring stations.

Features:

The module requires the voltage US as the operating voltage.

It does not have an interface to the PROCONTROL bus system. The disturbance annunciation signals generated by the corresponding annunciation facilities are transferred to the module hard-wired in parallel (conventional) configuration. This also applies to the transfer of the output signals from the module to the alarm annunciation system. All output signals are output from the module via relays. The module is potential-isolated if the relays are supplied by an external voltage.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
