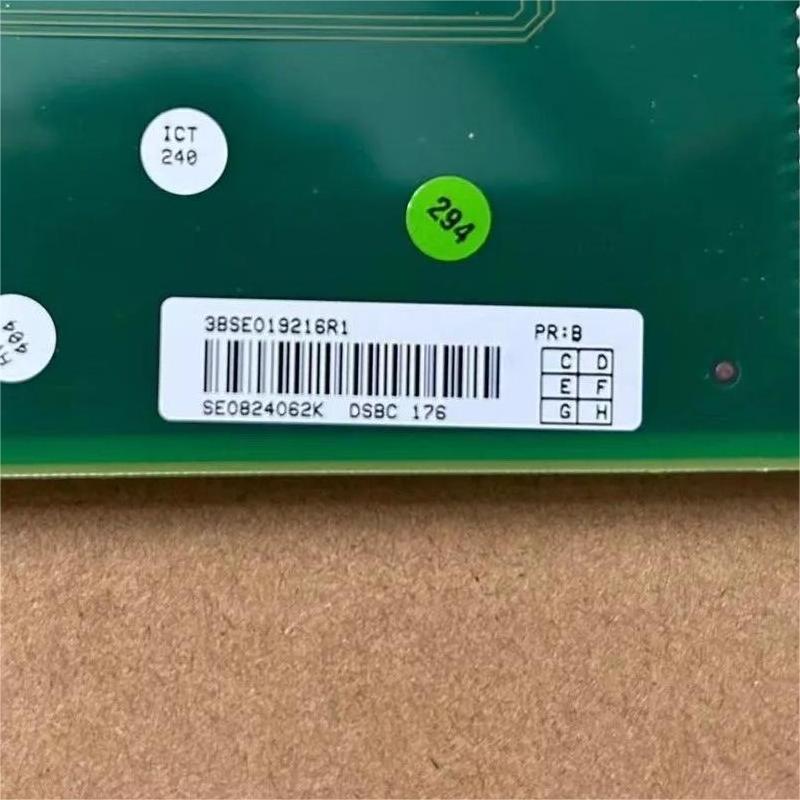

ABB DSBC 176 3BSE019216R1 Bus Extender Board

DSBC 176 3BSE019216R1 Bus Extender Board

DSBC 176 bus extender could be used in two different configurations:

• Single CPU configuration

• Redundant CPU configuration with single bus cable and extenders.

DSBC 176 should be placed in the last position of the I/O sub rack. DSBC 176 could also be used as a replacement for DSBC 173A in a CPU PM510 application. The correct operation mode is automatically set and the address jumpers have no meaning.

The following functions are supported by DSBC 176:

• Bus clock signals, generated for the backplane bus on the I/O sub rack.

• Supervision of functions such as fans and redundant regulators.

• LED's on the DSBC 176 front, indicating status of the I/O sub rack.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
