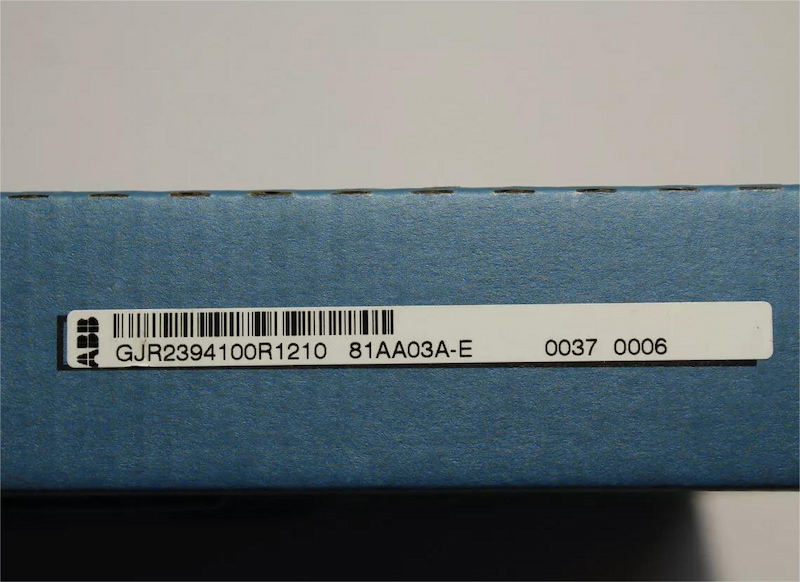

ABB 81AA03A-E GJR2394100R1210 Output Module

81AA03A-E GJR2394100R1210 Output Module

The 81AA03A-E output module is used to output analog signals in the signal range 0 ... 20 mA. It is used to activate indicating instruments or line recorders.

The module contains 8 function units. It is thus possible to output 8 different analog signals simultaneously.

Features

The module can be plugged into any multi ---purpose processing station of the PROCONTROL bus system. It incorporates a standard interface to the PROCONTROL station bus.

The module receives the analog signals to be output from the PROCONTROL bus system via the station bus in the form of telegrams. The telegrams are checked for faultless transfer by means of the parity bits before being output.

The analog signal outputs are short-circuit-proof and open-circuit-proof. They have a common reference conductor.

The output circuits are supplied with their own operating voltage to eliminate any interaction between the bus side and the process side.

The output signals can be simulated individually via the control system operator station. A simulated output is indicated by a light ---emitting diode (SIM) at the front of the module and is recorded by the control system operator station on a logger and displayed on a screen.

A binary signal is output per function unit if analog signals are marked as disturbed.

Any disturbance in the processing section is indicated by a disturbance annunciation (ST) at the front of the module.

Technical Specifications
