The 9905-971 LINKnet 16 Channel Discrete Input Module provides sixteen discrete input for field switches or relay contacts.
Brand :
WoodwardPart number :
9905-971Description :
LINKnet 16 Channel Discrete Input ModuleOrigin :
USACondition :
NewDimension :
220 mm x 114 mm x 60 mmWeight :
0.4 kgPayment :
Bank Transfer

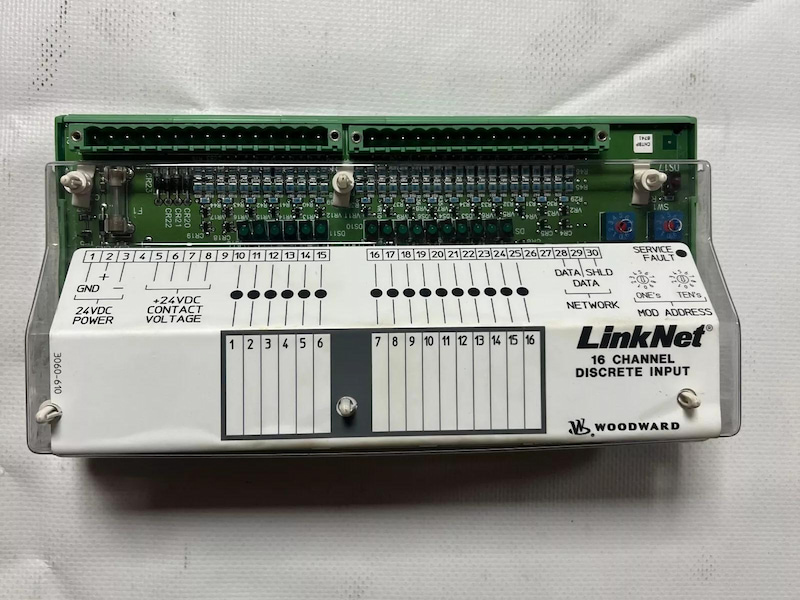

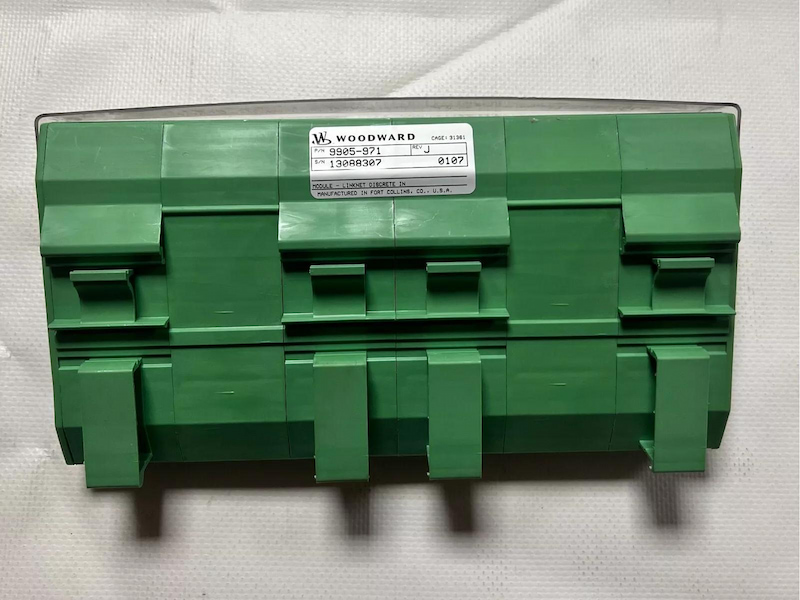

Woodward 9905-971 LINKnet 16 Channel Discrete Input Module
Functional Description
The 9905-971 LINKnet is a 16 Channel Discrete Input (DI) Module provides sixteen discrete input for field
switches or relay contacts. All sixteen inputs require a +24 Vdc source. A filtered and fused internal power
source is provided or an external +24 Vdc source referenced to the 24 V Common of the module may be
used to sense the state of the contact or switch.
The LINKnet* distributed I/O network provides low cost, easy to implement distributed I/O capabilities for
the NetCon* control system. The LINKnet I/O modules, while slower and less powerful than NetCon I/O
modules, are well suited for non-turbine control functions like sequencing and monitoring.
Features
· Low cost distributed I/O network
· I/O modules are hot replaceable
· Easy to implement
· Seamless interface with the NetCon* control
· Well suited for non-turbine functions such as sequencing and monitoring
Technical Specifications
Manufacturer | Woodward |
Part Number | 9905-971 |
Ordering Information | 9905-971 |
Product Catalog | MicroNet Simplex Digital Control |
Description | LINKnet 16 Channel Discrete Input Module |
Voltage | 24 Vdc |
Current | 1 A |
Dimensions | 220 mm x 114 mm x 60 mm |
Weight | 0.4 kg |
