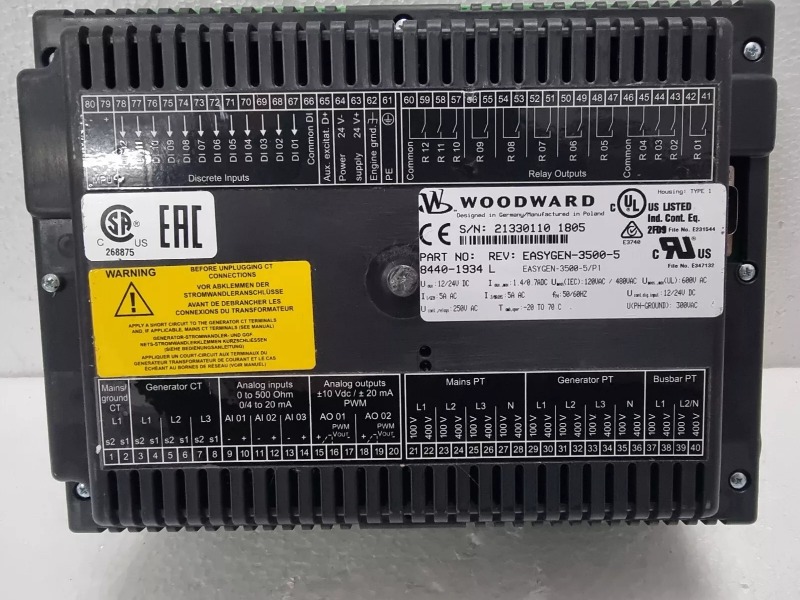

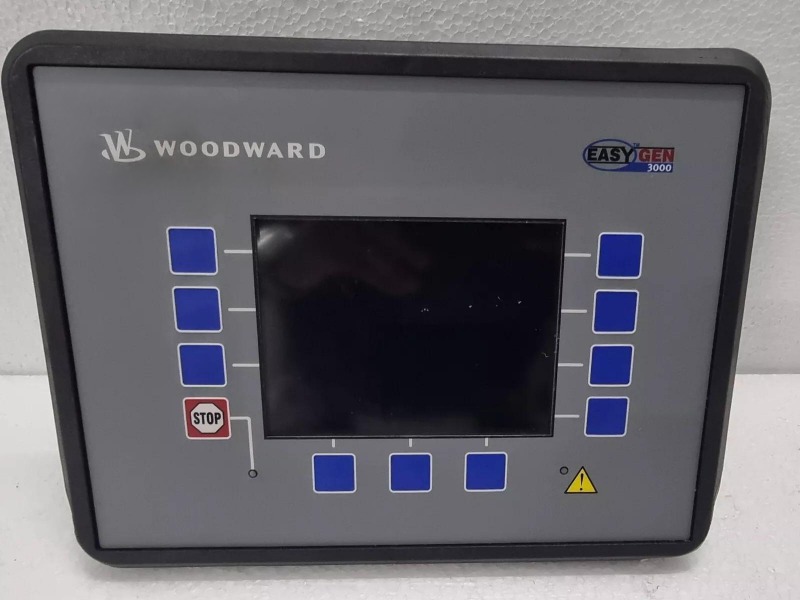

Woodward 8440-1934 Genset Control Unit

Woodward 8440-1934 Genset Control Unit

Functional Description

The easYgen-3500 Series are control units for genset applications. The numerous inputs and outputs, along

with a modular software structure, permit you to use the easYgen-3500 Series for a wide range of

applications. This includes stand-by, AMF, peak shaving, import-export, cogeneration or distributed

generation, among others. Also the easYgen-3500 Series is compatible for isolated, island parallel, mains

parallel and multiple unit mains parallel operations. The easYgen-3000 Series is able to control up to 32

gensets connected in a network with automatic sequencing.

The easYgen 3500 offer a wider range of functionality and applications than the lower numbered easYgens

and are preferred for communcation with Woodwards LS-5 synchronizers and load share controllers.

Features

· True RMS voltage and current sensing for generator, bus and mains

· Complete engine/generator protection, metering, and mains monitoring

· LogicsManager™ to combine measured values, internal conditions, and I/O states with Boolean operators

and programmable timers, allowing for complex controls

· Load share 32 gensets in island mode or paralleled to the utility

· Different load or process-dependent start/stop sequencing with kW/kvar load sharing

· Configurable generator, mains, and generator

· Communication to engine ECUs SCADA, external I/O and RP-3000 remote panel

· Support of CAN open, J1939, Modbus RTU and modem support

· Easy-to-read graphical display

· Selectable display languages

Technical Specifications
