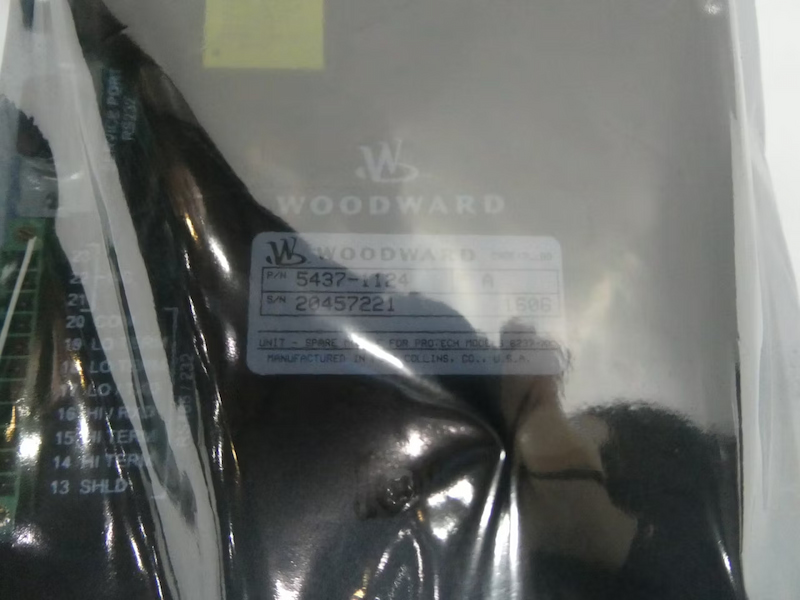

Woodward 5437-1124 Protection Module

Woodward 5437-1124 Protection Module

The 5437-1124 is a Protection Module mounted in ProTech-GII system panel mount package, Each ProTech-GII system consists of three separate internal modules (A, B, C), and each of these three modules accept two input power sources. Depending on the ProTech-GII model purchased, the internal modules will accept either two high voltage (HV) input power sources or one HV input power source and one low voltage (LV)  input power source. For reliability purposes, each ProTech-GII module will function normally with power sourced to either or both power supply inputs.

Installation

1. Insert module into slot by pressing firmly on handles. The module has guides to assist in location.

2. Tighten 4 module retaining screws.

3. Install back panel.

4. Install 4 retaining screws.

5. Install terminal blocks.

6. Apply power and observe that the power LED is ON

Mounting Location Considerations

Consider the following general requirements when selecting the mounting location:

· Adequate ventilation for cooling

· A location that will provide an operating temperature range of –20 to +60 °C (–4 to +140 °F)

· Space for opening & servicing

· Space for installing & removing panel mount covers

· Space for installing cable strain relief as needed

· Vertical orientation of the unit

· Protection from direct exposure to sunlight, water, or to a condensation-prone environments

· Protection from high-voltage or high-current devices which produce electromagnetic interference

· Avoidance of vibration

· A location that has H2S and SO2 gases at or below the levels classified in international standard IEC 721-3-3 1994 - environment Class 3C2

· Maximum purge pressure: 4 psi

Technical Specifications
