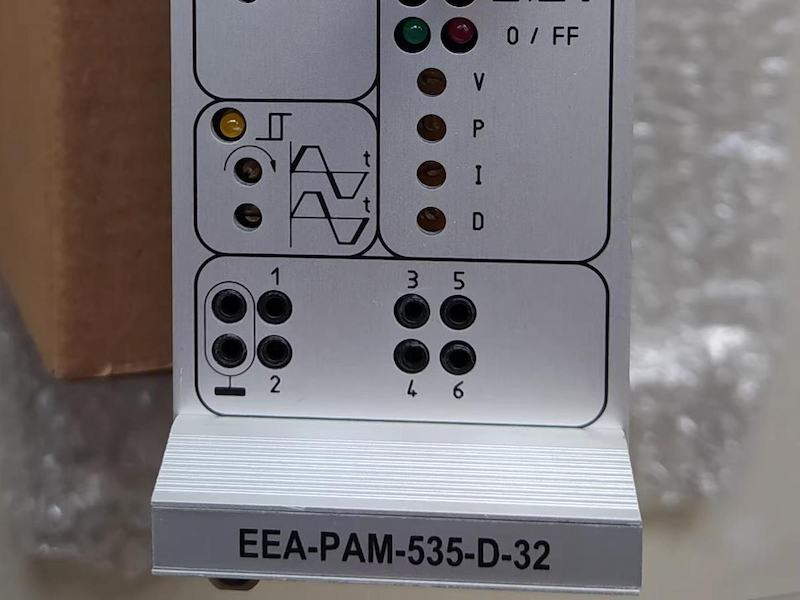

Vickers EEA-PAM-535-D-32 Power Amplifiers with PID Modules

EEA-PAM-535-D-32 Power Amplifiers with PID Modules

The EEA-PAM-535-D-32 Euro cards are power amplifiers with integrated PID modules. Each of these cards replaces two conventional electronic cards.

Features and Benefits

· Includes all features of "A" amplifiers (except gain)

· User configurable PID feed-forward, closed-loop operation

· Command input ramps

· Analog feedback sensor interface

· Automatic switch-over p/Q function

· Built-in test feature

· The design reduces the amount of external wiring, saves space in the rack enclosure and requires only one 24V supply

· The general purpose, integrated module can be configured using DIL switches (D1-D9) and potentiometers for the following applications:

– Closed-loop pressure control using either proportional pressure valves or servo-performance proportional valves

– Closed-loop velocity control

– Closed-loop position control

– p/Q control with internal or external switch-over from Q to p

· The DIL- switch and potentiometer settings can easily be reconfigured on different cards

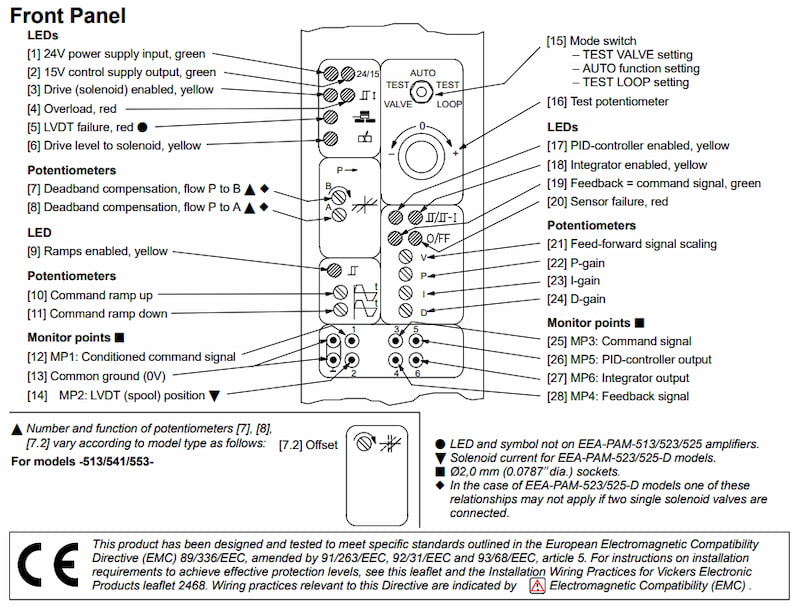

Module Diagrams

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
