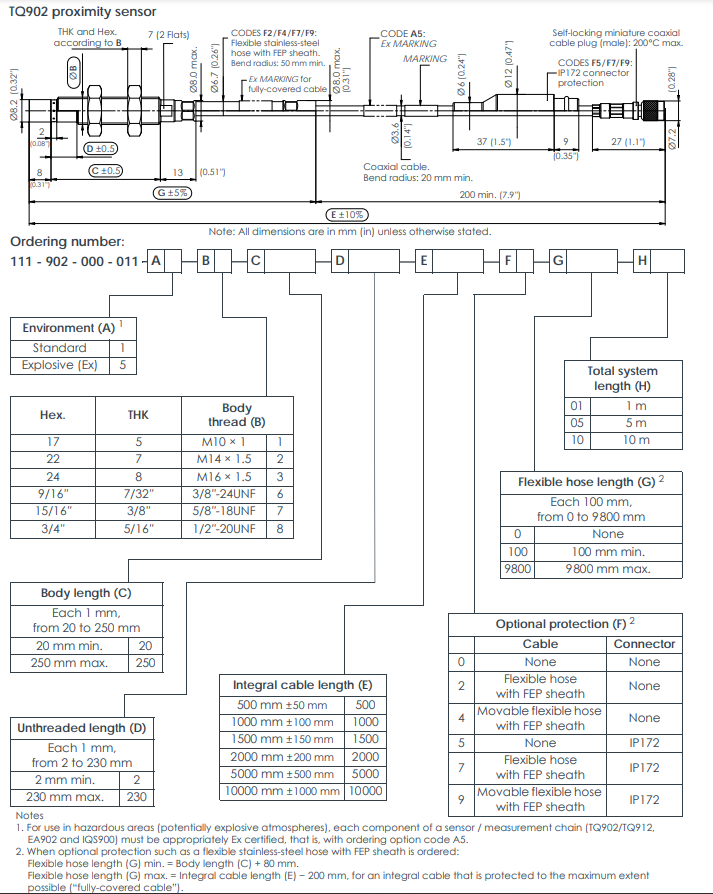

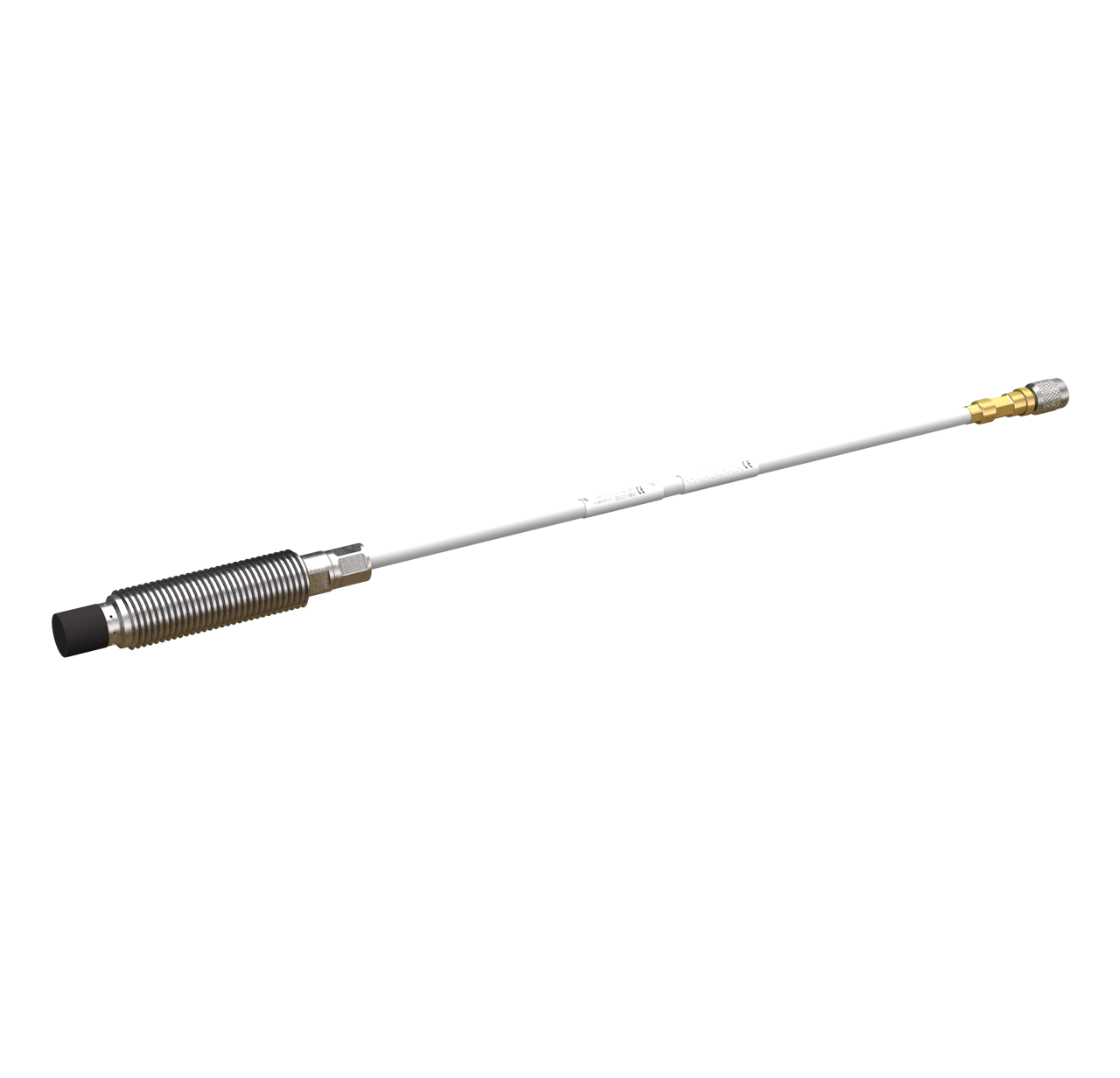

TQ902 111-902-000-011 Proximity Sensor

The TQ902/TQ912, EA902 and IQS900 form proximity measurement chains.

TQ9xx-based proximity measurement chains allow contactless measurement of the relative displacement of moving machine elements, and provide an output signal proportional to the distance between the sensor tip and the target. Accordingly, these measurement chains are ideally suited for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbo compressors  and pumps.

A TQ9xx-based proximity measurement chain consists of a TQ9xx proximity sensor, an optional EA90x extension cable and an IQS900 signal conditioner, configured for a particular industrial application. The EA90x extension cable is used to effectively lengthen the front-end, as required. Together, these form a calibrated proximity measurement chain in which each component is interchangeable.

The IQS450 form a proximity measurement system, this proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.

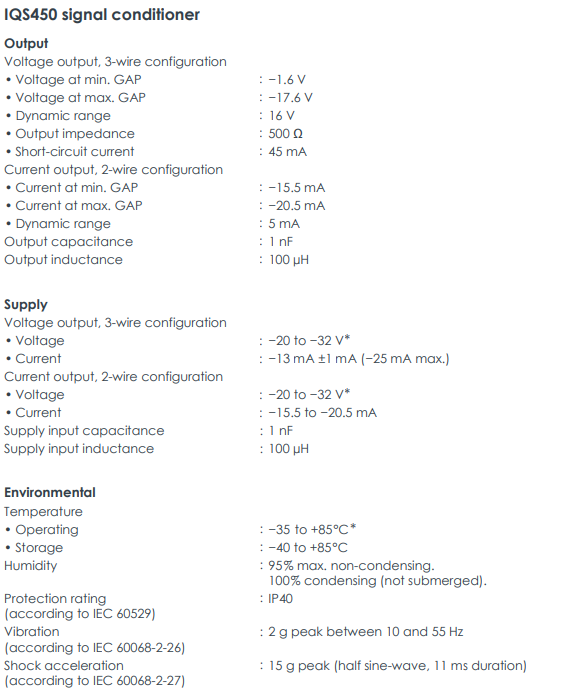

The IQS450 signal conditioner contains a high frequency modulator/demodulator that supplies a driving signal to the transducer.

This generates the necessary electro-magnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in an aluminium extrusion.

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
