The IS430SNUAH1A is an Universal I/O Module used in a wide range of process control and turbo-machinery applications.
Brand :
GEPart number :
IS430SNUAH1ADescription :
Universal I/O ModuleOrigin :
USACondition :
NewDimension :
260 mm x 220 mm x 40 mmWeight :
1.2 kgPayment :
Bank Transfer

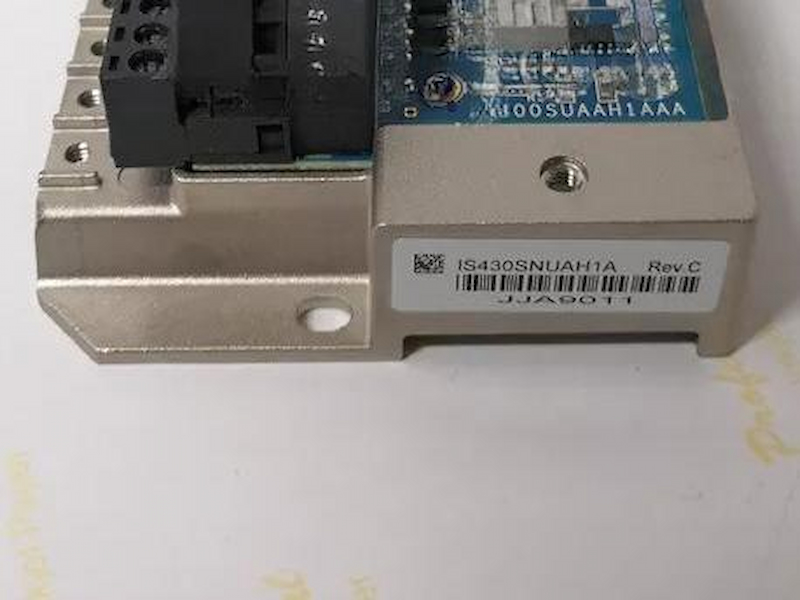

GE IS430SNUAH1A Universal I/O Module
Functional Description

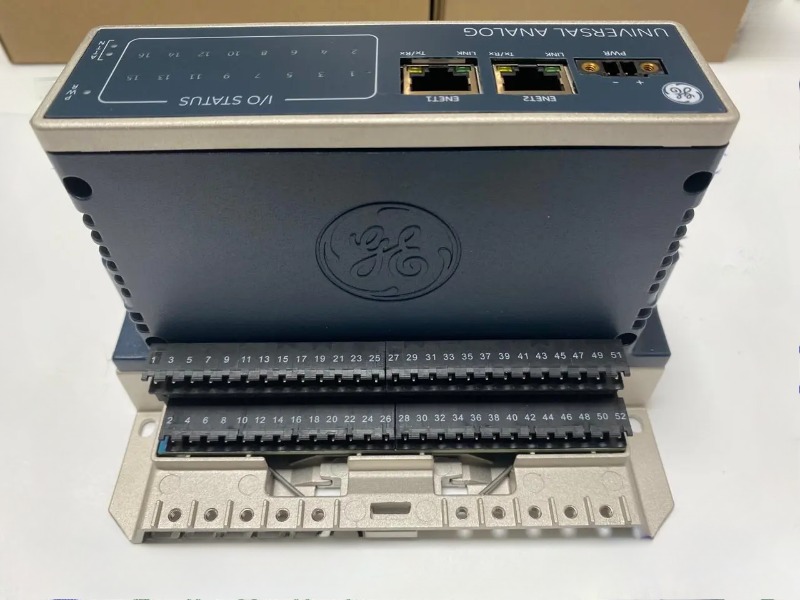

The IS430SNUAH1A module consists of the PUAAH1A I/O pack connected to the SUAAH1A terminal board.
The initial release of the module meets a variety of international regulations and standards, as detailed in
GEH-6721_Vol_I system manual, including RoHs components.
Sixteen Simplex analog channels can be configured individually as any of the following types: Thermocouple,
RTD, Voltage Input (± 5 Vor ± 10 V), 4–20 mA current input, 0–20 mA current output, pulse accumulator, or
digital input. Configuration of I/O channels is accomplished with the ToolboxST* application.
The boards internal to the I/O pack include one BPPC processor, one BCAR carrier board, and four MIO
universal analog I/O boards. The BPPC processor is common to many Mark VIe I/O packs. The SUAA
terminal board provides removable terminal blocks to reduce maintenance down times. The PUAA module
operates on simplex control side power as supplied by a 28 V source. There are no internal jumpers,
switches, or fuses required to configure the module.
The PUAA continues to meet the same high level of reliability/availability standards as other Mark VIe
control system products. Savings to the customer include fewer panels/footprint and variations for
replacement parts.
Technical Specifications
| Manufacturer | GE |
| Part Number | IS430SNUAH1A |
| Ordering Information | IS430SNUAH1A |
| Product Catalog | Mark VIe |
| Description | Universal I/O Module |
| Voltage | 24 Vdc |
| Current | 4-20 mA |
| Dimensions | 260 mm x 220 mm x 40 mm |
| Weight | 1.2 kg |
