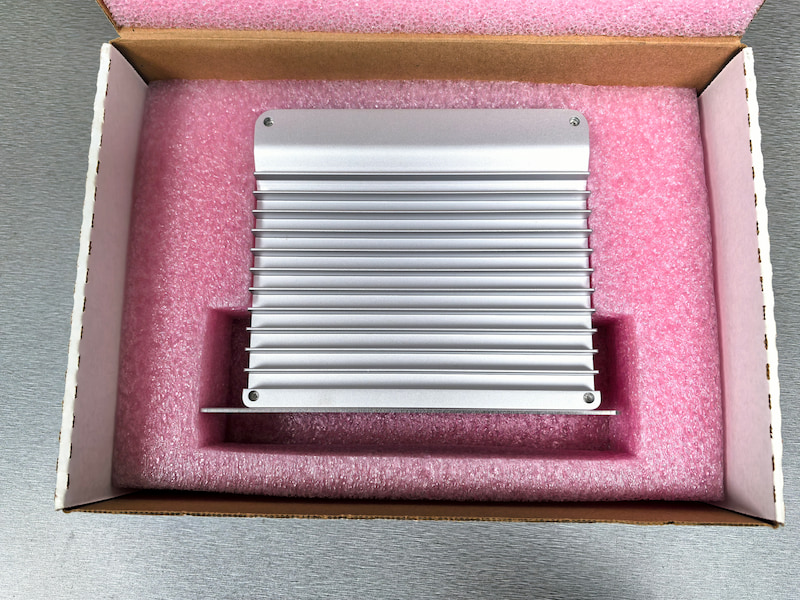

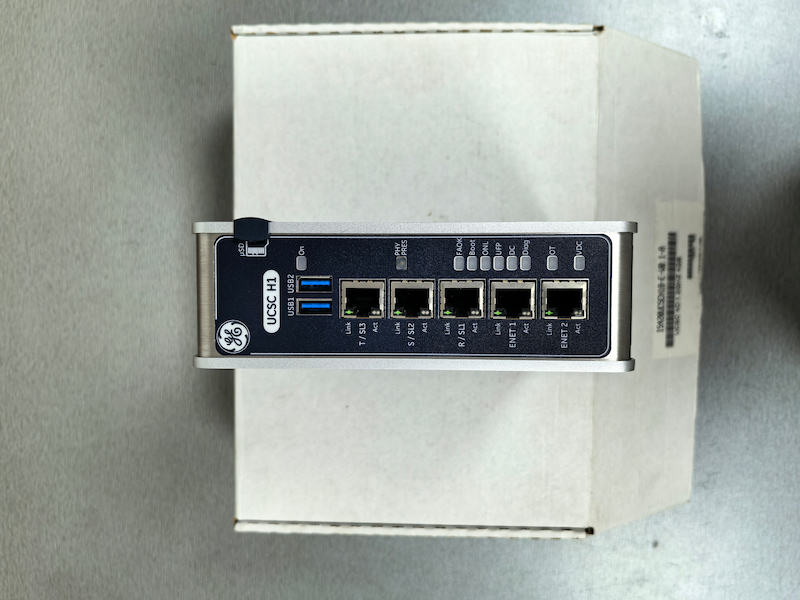

GE IS420UCSCH1B Quad Core Controller

GE IS420UCSCH1B Quad Core Controller

The Mark VIe IS420UCSCH1B quad core controller uses real-time hypervisor technology and QNX® Neutrino, a real-time, multi-tasking operating system (OS) to run high-speed, high-reliability industrial applications. Embedded Field Agent (EFA) technology is used to apply Predix™ cloud-based applications

and/or locally hosted web applications over a secure connection and deliver real-time data.

The IS420UCSCH1B controller is loaded with software specific to its application. As a turbine or balance of plant (BoP) controller, it runs the Mark VIe firmware and applications and utilizes IONet interfaces. IONet is a private special-purpose Ethernet that only supports Mark controls I/O packs and controllers. IEEE 1588 protocol is used through the IONet interfaces to synchronize the clock of the I/O modules and controllers to within ±100 microseconds. External data is transferred to and from the control system database in the controller over the IONet interfaces. This includes process inputs/outputs to the I/O modules. Unlike traditional controllers where I/O is on a backplane, the UCSC controller does not host any application I/O. In a redundant set, all I/O networks are attached to each controller, providing them with all input data. This hardware and software architecture guarantees that no single point of application input is lost if a controller is powered down for maintenance or repair.

The IS420UCSCH1B is available beginning with ControlST* V07.01, and supports Simplex, Dual, and Triple Modular Redundant (TMR) redundancy.

Features

• Single module

• No battery

• No fan

• No jumper settings required

• Flash memory can be conveniently updated

• Can be expanded to include seven additional I/O ports
