GE IS220YAICS1A Mark VIeS Safety Analog I/O Pack

GE IS220YAICS1A Mark VIeS Safety Analog I/O Pack

The IS220YAICS1A is a Safety Analog I/O Pack, manufactured and designed by General Electric as part of the Mark VIeS Series used in GE Distributed Gas Turbine Control Systems. US$4,200.00

  • Brand :

    GE
  • Part number :

    IS220YAICS1A
  • Description :

    Mark VIeS Safety Analog I/O Pack
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    8.3 cm × 4.2 cm × 12.2 cm
  • Weight :

    340 g
  • Payment :

    Bank Transfer
Contact Us:



IS220YAICS1A Mark VIeS Safety Analog I/O Pack

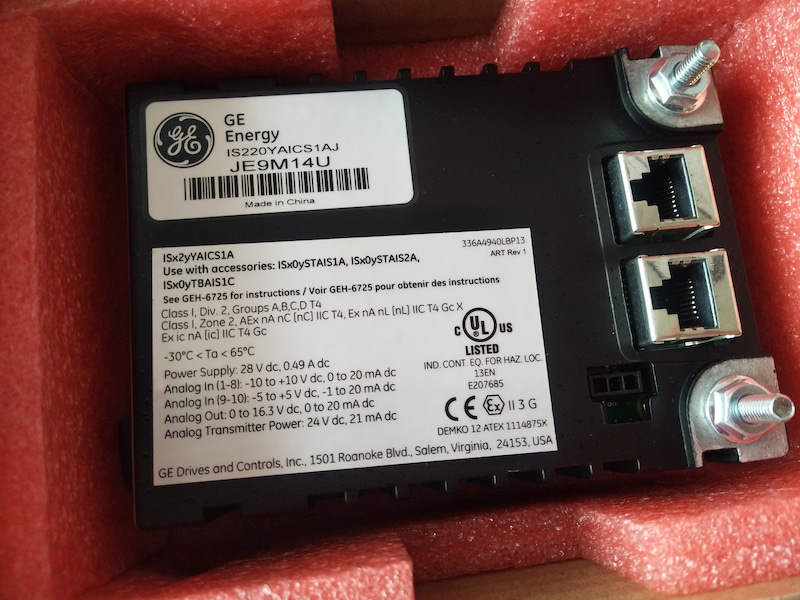

The Analog I/O pack (IS220YAICS1A) provides the electrical interface between one or two I/O Ethernet networks and an analog I/O terminal board. The YAIC contains a common processor board and an acquisition board specific to the analog input function. The I/O pack is capable of handling up to 10 analog inputs, the first eight of which can be configured as ±5 V or ±10 V inputs, or 4-20 mA current loop inputs. The last two inputs can be configured as ±1 mA or 4-20 mA current inputs.

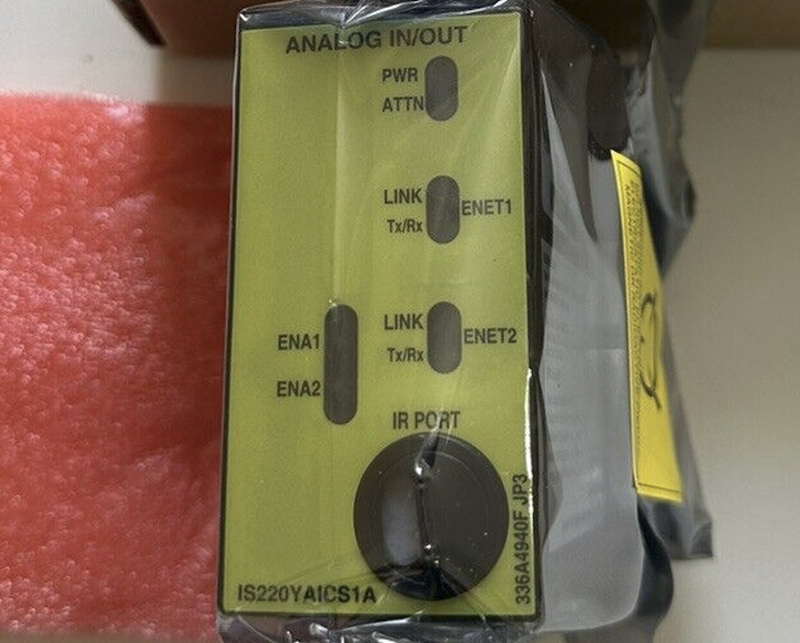

The load terminal resistors for current loop inputs are located on the terminal board and voltage is sensed across these resistors by the YAIC. The I/O pack also includes support for two 0-20 mA current loop outputs. The I/O pack receives or sends data through dual RJ-45 Ethernet connectors to the controller and has a three-pin connector to power it on. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.



Technical Specifications

Manufacturer GE
Part Number IS220YAICS1A
Ordering Information IS220YAICS1A
Product Catalog Mark VIeS
Description Safety Analog I/O Pack
Voltage 24 Vdc
Current 20 mA
Dimensions 8.3 cm × 4.2 cm × 12.2 cm
Weight 340 g



GE IS220YAICS1A

 IS220YAICS1A



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com
