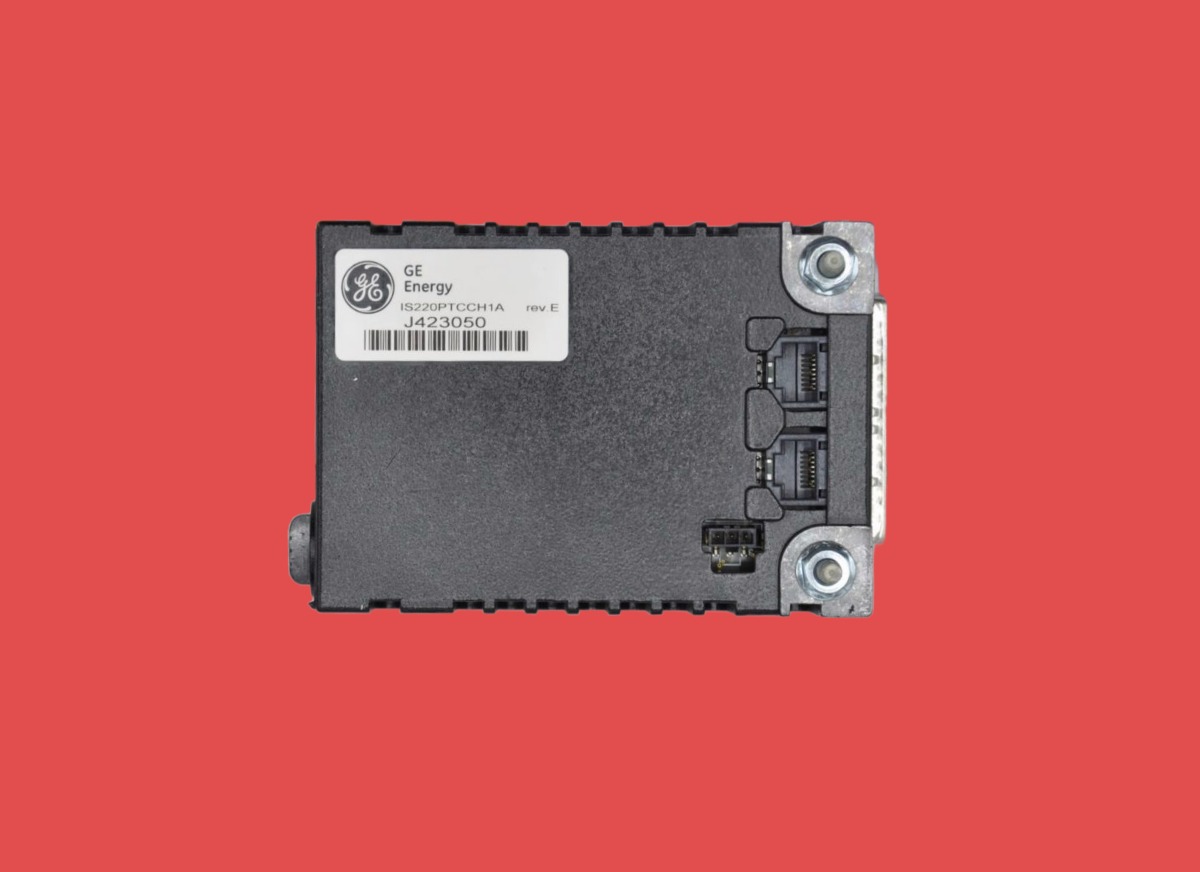

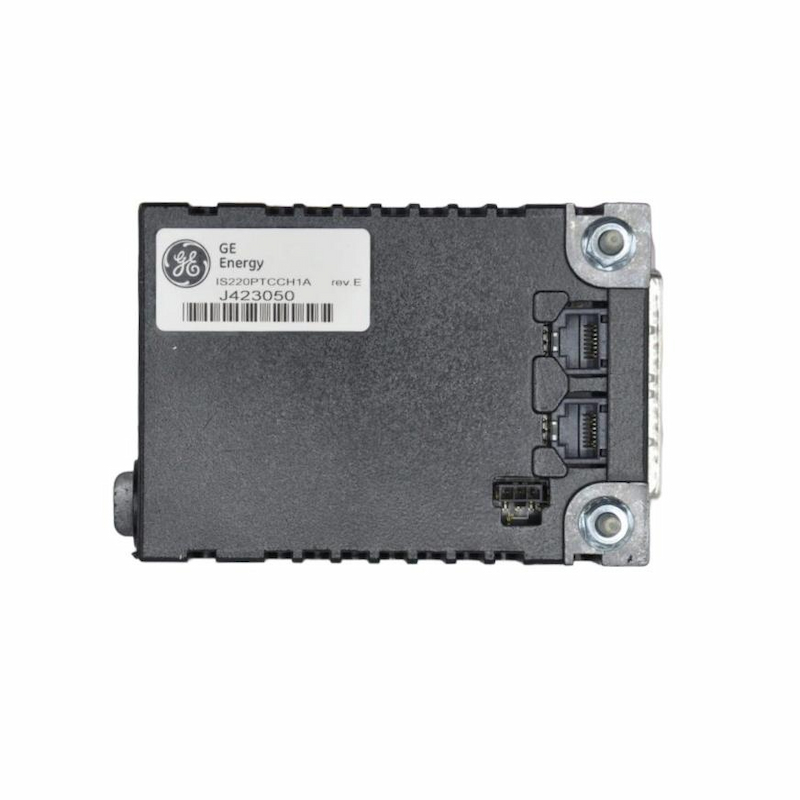

The IS220PTCCH1A is a Thermocouple Input Module, manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Control Systems.US$7,800.00
Brand :
GEPart number :
IS220PTCCH1ADescription :
Thermocouple Input ModuleOrigin :
USACondition :
NewDimension :
8.3 cm × 4.2 cm × 12.2 cmWeight :
340 gPayment :
Bank Transfer
IS220PTCCH1A Thermocouple Input Module

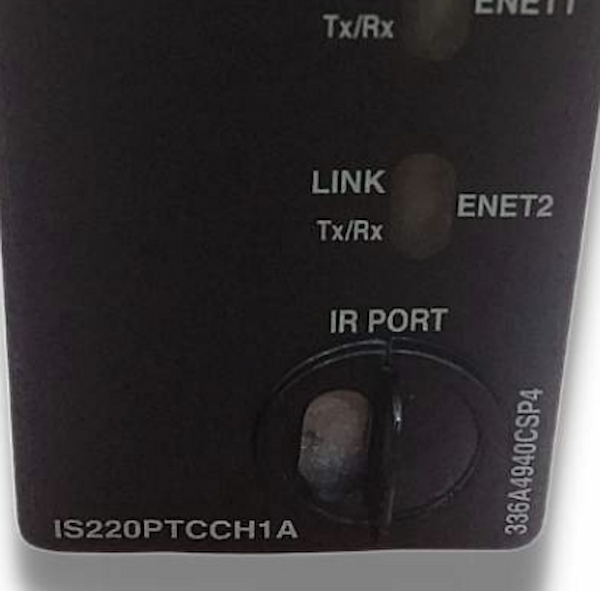

The Thermocouple Input (PTCC) pack provides the electrical interface between one or two I/O Ethernet networks and a thermocouple input terminal board. The pack contains a processor board common to all Mark* VIe distributed I/O packs and an acquisition board specific to the thermocouple input function. In the Simplex configuration using TBTCH1C, each pack is capable of handling up to 12 thermocouple inputs, for a total of 24 inputs using two packs. In the Simplex configuration using TBTCH1B, each pack is capable of handling up to 12 thermocouple inputs, for a total of 24 inputs provided the packs only use the JRA and JTB connectors. In the TMR configuration with the TBTCH1B terminal board, three packs are used with three cold junctions, but only 12 thermocouples are available. Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector that mates directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.
IS220PTCCH1A supports E, J, K, S, T types of standard thermocouples and mV inputs. The mV span is –8 mV to +45 mV.
Technical Specifications
| Manufacturer | GE |
| Part Number | IS220PTCCH1A |
| Ordering Information | IS220PTCCH1A |
| Product Catalog | Mark VIe |
| Description | Thermocouple Input Module |
| Voltage | 28 Vdc |
| Current | 45 mA |
| Dimensions | 8.3 cm × 4.2 cm × 12.2 cm |
| Weight | 340 g |
