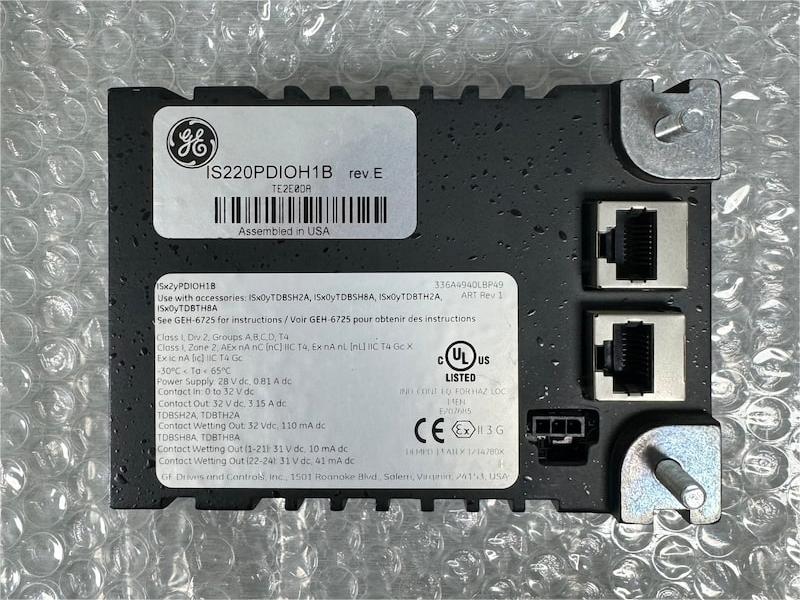

GE IS220PDIOH1B Discrete Input/Output Module

IS220PDIOH1B Discrete Input/Output Module

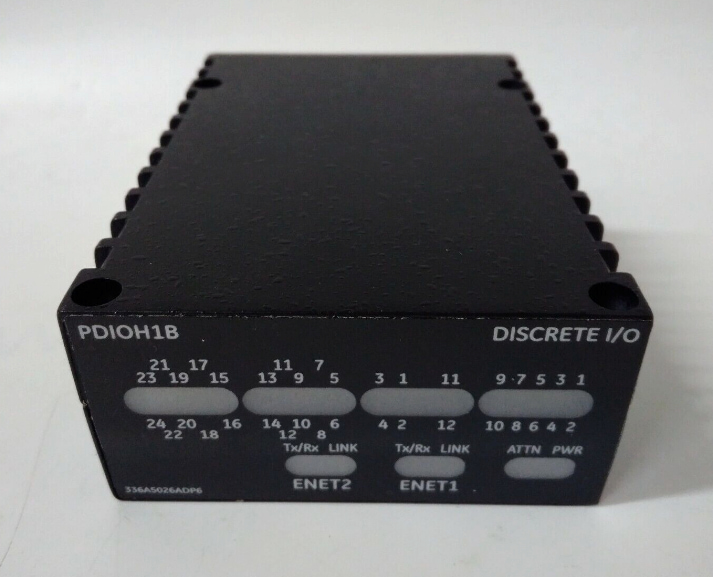

The Discrete Input/Output (PDIO) pack provides the electrical interface between one or two I/O Ethernet networks and a discrete input/output terminal board. The pack contains a processor board common to all Mark* VIe distributed I/O packs and an acquisition board specific to the discrete input/output function. The pack accepts up to 24 contact inputs, controls up to 12 relay outputs, and receives terminal board specific feedback signals. The associated terminal board determines voltage capability of PDIO. System input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Discrete signal input/output is through a DC-62 connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator  LEDs.

IS220PDIOH1B is the functional equivalent of a PDIA and PDOA I/O pack combined into a single assembly. For simplex applications, it goes on a TDBS terminal board that is the equivalent of a SRLY relay terminal board combined with a STCI contact input terminal board. For TMR applications, it goes on a TDBT terminal board that, with the WROB option, provides the equivalent of a terminal board combined with a TBCI contact input terminal board.

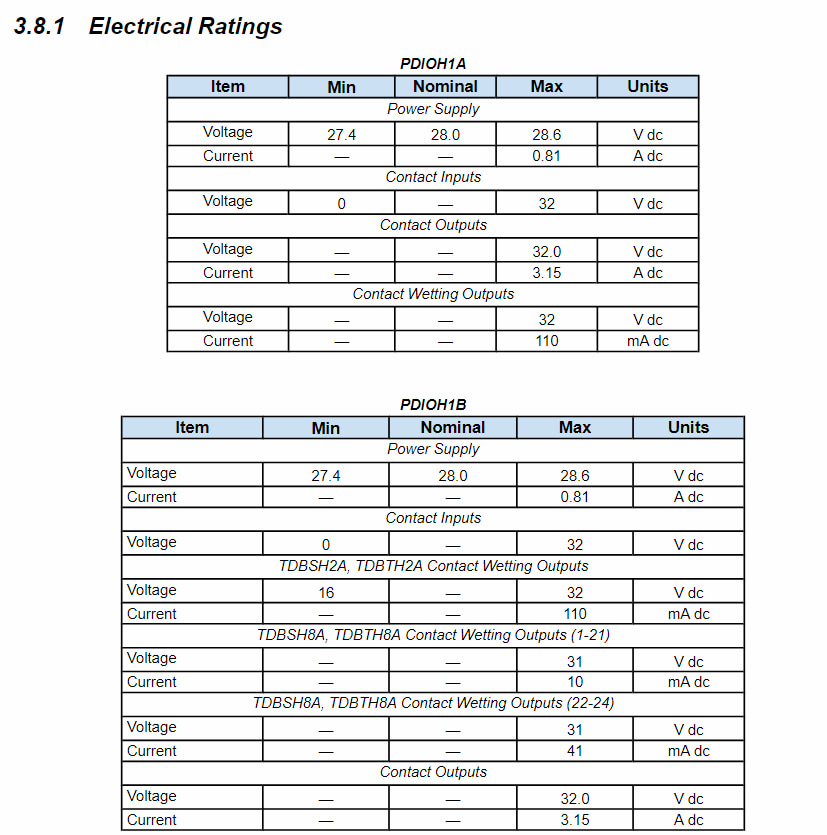

Technical Specifications
