GE IS2020RKPSG3A VME Rack Power Supply Module

IS2020RKPSG3A VME Rack Power Supply Module

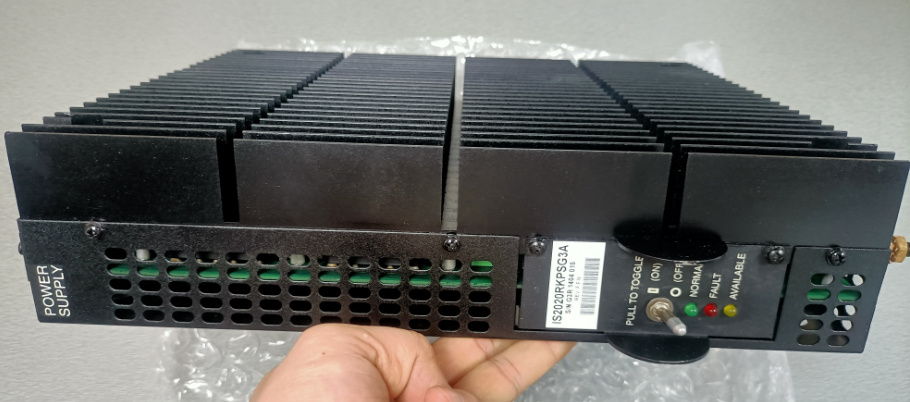

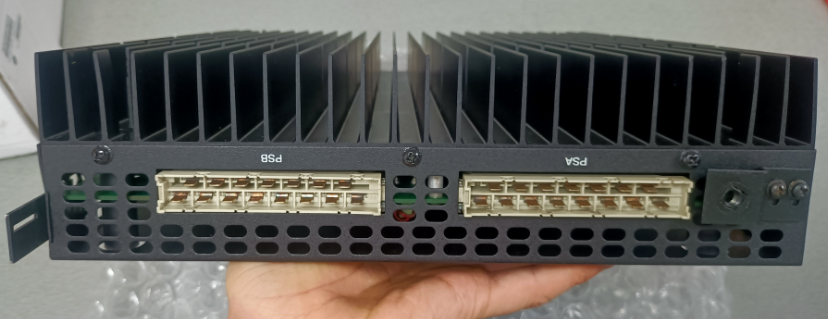

The IS2020RKPSG3A Mark* VI VME rack power supply mounts on the side of the VME control and interface racks. It supplies +5, ±12, ±15, and ±28 V dc to the VME backplane, and an optional 335 V dc output for powering flame detectors connected to TRPG.

Two supply input voltage selections are available. There is a 125 V dc input supply that is powered from a Power Distribution Module (PDM) and a low voltage version for 24 V dc operation.

Operation:

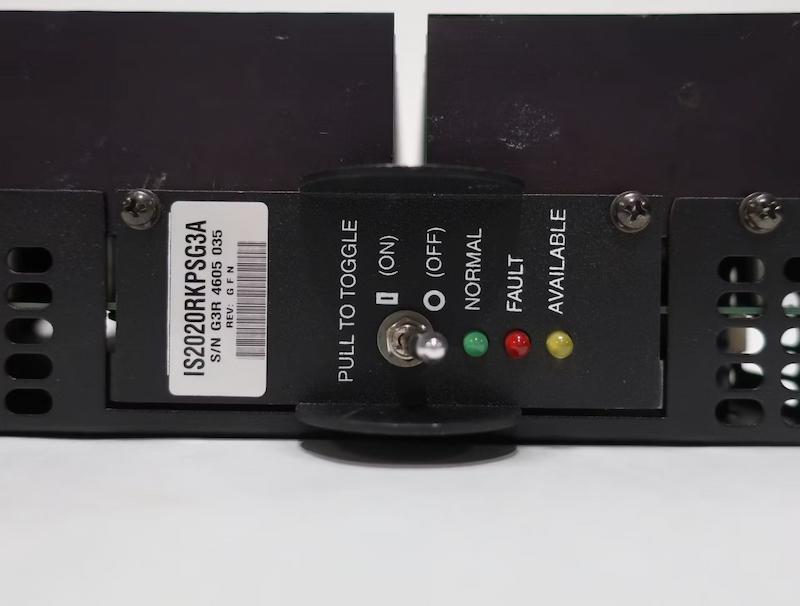

The VME Rack power supply has only one user control, the power switch, and three status LED indicators. The power switch provides front-panel control of the power supply output voltages and when toggled serves as a fault reset. The yellow, red and green LEDs indicate the status of the input power, fault presence, and normal operation.

Power Switch:

The front panel power switch is a locking type that must be pulled out to change position. This switch is a low voltage control to enable or disable the output voltages. If the red LED is ON indicating a fault condition the power switch can be toggled OFF and then back ON again to clear the fault. The fault will only be cleared if the condition that caused it no longer exists.

Yellow LED :

When the power switch is OFF the yellow LED will indicate the status of the input power. If this LED is ON there is power present on the supply input connector. For the newer design, the yellow LED will only turn ON if the input voltage is above the input under-voltage fault threshold.

Red LED:

This LED will only be ON if there is input power, the power switch is ON, and a fault has been detected.

Green LED/Status Output:

If there is input power, the power switch is ON, and there are no detectable faults, the Green LED will be ON. The newer designs also have a status output that mimics the status of this LED. The status output is a NO solid-state relay contact that will be CLOSED when the green LED is ON.
