GE IS200VCMIH1BCC Bus Master Controller Board

IS200VCMIH1BCC Bus Master Controller Board

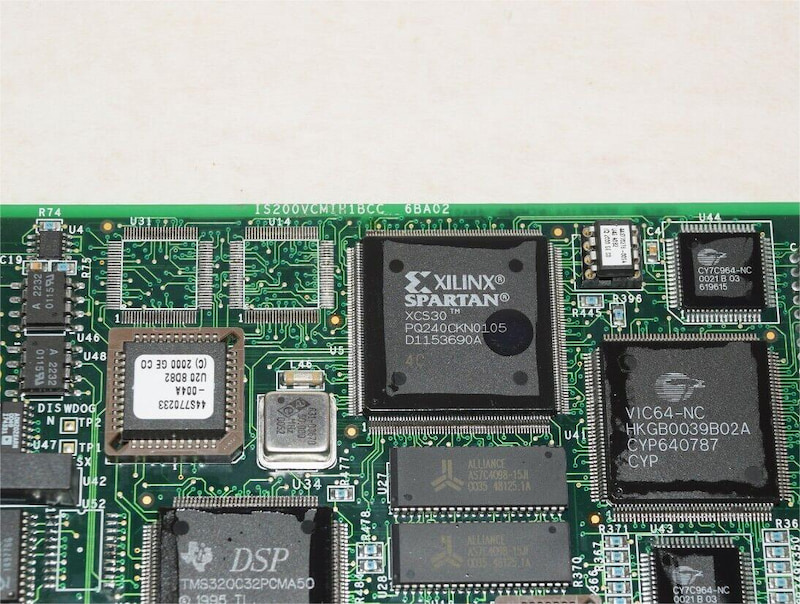

The IS200VCMIH1BCC is a Bus Master Controller Board, manufactured and designed by General Electric as part of the Mark VI Series used in the GE Speedtronic Control System.

The VCMI serves as a linchpin in the intricate web of communication within a control system. Its multifaceted functionalities are indispensable for ensuring seamless interactions between the controller, various I/O boards, and the overarching system control network, IONet. This expansion delves into the pivotal responsibilities undertaken by VCMI in the control and I/O racks, shedding light on its role as the VME bus master and the manager of board IDs and associated terminal boards.

Features

· Diverse Communication Interfaces of the Control System: In the realm of modern control systems, robust communication infrastructure is paramount for seamless interactions between various components. The system under discussion boasts a comprehensive array of communication interfaces, each tailored to specific needs and scenarios. Here, we delve into the distinct features of these interfaces, ranging from Ethernet ports to serial and parallel connections.

· Three IONet 10 Base2 Ethernet Ports: The heart of the system's communication architecture lies in its IONet Ethernet ports. Three robust 10 Base2 Ethernet ports, equipped with BNC connectors, provide a high-speed communication backbone operating at 10 Mbits/sec. These ports facilitate efficient data exchange, supporting real-time communication between different components within the control system. The utilization of BNC connectors enhances reliability, ensuring secure and stable connections.

· High-Speed Data Transfers: The system leverages VME bus block transfers to facilitate high-speed data exchanges. This methodology optimizes data transfer rates within the VME bus, a widely adopted standard for embedded systems. The integration of VME bus block transfers ensures efficient communication between the various boards and devices connected to the bus, promoting swift and reliable information flow.

· RS-232C Serial Port: Complementing the Ethernet ports, the system features an RS-232C serial port. Equipped with a male D style connector, this serial port supports flexible communication with varying bit rates, offering options of 9600, 19,200, or 38,400 bits/sec. This serial port serves as a versatile interface for connecting with external devices, providing a standardized and widely used protocol for serial communication.

· Bi-Directional Parallel Port: For parallel communication needs, the system is equipped with a parallel port featuring eight-bit bi-directional capabilities. Operating in EPP (Enhanced Parallel Port) Version 1.7 mode of IEEE 1284-1994, this parallel port ensures high-speed and efficient data transfer between the control system and connected peripherals. The bidirectional nature of the port enhances versatility, allowing simultaneous data transfer in both directions.

· Diverse Connection Options: By incorporating a range of communication interfaces, the control system ensures connectivity across a diverse array of devices and networks. From the high-speed capabilities of Ethernet ports to the flexibility offered by serial and parallel connections, the system caters to the varied communication needs encountered in contemporary industrial and control applications.

· Interoperability and Standardization: The system's adherence to widely accepted standards, such as IEEE 1284-1994 for parallel communication and RS-232C for serial communication, ensures interoperability with a myriad of devices. This commitment to standards enhances the system's compatibility, enabling seamless integration with both legacy and modern equipment.
