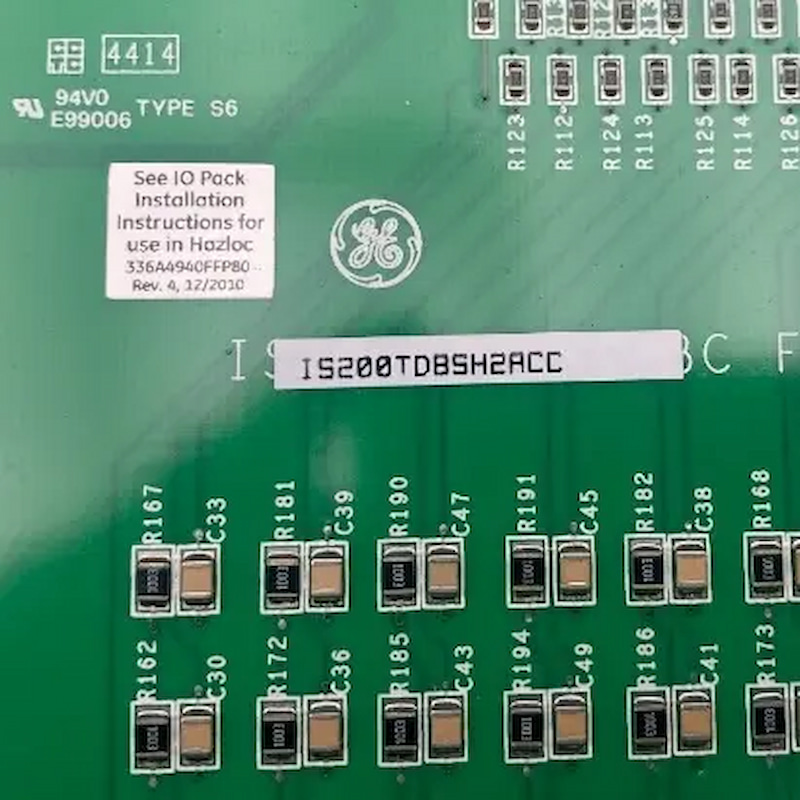

GE IS200TDBSH2ACC Simplex Discrete Input/Output Terminal Board

IS200TDBSH2ACC Simplex Discrete Input/Output Terminal Board

The Simplex Discrete Input/Output (TDBS) terminal board is a simplex contact input/output terminal board designed for DIN-rail or flat mounting. The TDBS board accepts 24 group isolated contact inputs that are supplied with a nominal 24, 48, or 125 Vdc wetting voltage from an external source. The contact inputs have noise suppression to protect against surge and high-frequency noise. TDBS provides 12 form-C relay outputs and accepts different option cards to expand relay functions.

Mark VIe Systems

In the Mark* VIe systems, the PDIO I/O pack works with the TDBS. The I/O pack plugs into the D-type connector and communicates with the controller over Ethernet. A single connection point for PDIO is provided with one or two network connections possible from PDIO to the controllers.

Board Versions

Three versions of TDBS are available as follows:

There are three option boards available that plug on to TDBS:

• IS200WROB turns the relay portion of TDBS into the functional equivalent of IS200TRLYH1B. This option provides fused and sensed power distribution to the first six relay outputs and dedicated power to the last relay output.

• IS200WROF puts a single fuse in series with each relay common connection. Fuse voltage feedback is included.

• IS200WROG distributes power from an input connector to each relay through a single fuse. Fuse voltage feedback is included.

Technical Specifications
