GE IS200TBAIH1CCC Analog Input/Output Terminal Board

IS200TBAIH1CCC Analog Input/Output Terminal Board

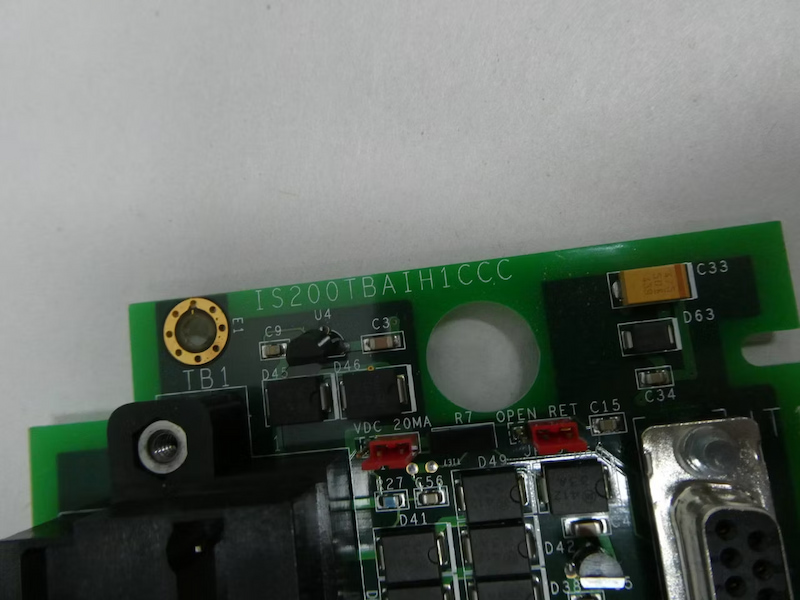

The IS200TBAIH1CCC is a Analog Input/Output Terminal Board, manufactured and designed by General Electric as part of the Mark VIe Series used in the GE Speedtronic Control System.

The Analog Input Terminal Board is designed to support a total of 10 analog inputs and two outputs, offering a versatile interface for various types of transmitters. These inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters, ensuring flexibility and compatibility across different transmitter configurations. Moreover, the analog outputs can be configured for either 0-20 mA or 0-200 mA current output settings, providing adaptability to diverse operational requirements.

Features:

· Noise Suppression and Protection:Inputs and outputs are fortified with specialized noise suppression circuitry, serving as a protective measure against surge and high-frequency noise. This integrated circuitry safeguards the integrity of the signals, ensuring accurate and reliable transmission of analog data without being affected by external interferences.

· Connectivity and Configuration Options: Equipped with three DC-37 pin connectors to facilitate connection to the I/O processors. Configuration options include either simplex connectivity via a single connector (JR1) or Triple Modular Redundant (TMR) setup, utilizing all three connectors. Connections can be established either through cables or directly to the electronics, offering flexible connectivity solutions tailored to specific system configurations and setups.

· TMR Functionality and Output Operation:In Triple Modular Redundant (TMR) applications, input signals are distributed or fanned out across the three connectors, designated for the R, S, and T controls. TMR outputs operate by aggregating the current from the three connected output drivers and determining the total current via a measuring shunt on the TBAI. Subsequently, presents this total current signal to the electronics for regulation, aligning it with the commanded setpoint for enhanced operational control and accuracy.

· Channel Configuration and Output Capabilities:Each terminal board boasts 12 channels, allocating 10 channels for Analog Input (AI) and reserving 2 channels for Analog Output (AO). The input span for transmitters ranges from 1-5 V DC derived from a 4-20 mA current input range. Furthermore, the outputs deliver 24 V each, providing a maximum output of 21 mA per connection, ensuring robust output capabilities for diverse operational demands.

Installation:

· The installation process for the Analog Input Terminal Board (TBAI) involves direct wiring of the 10 inputs and two outputs to two I/O terminal blocks mounted on the board. Each block is secured with two screws and features 24 terminals capable of accommodating wires up to #12 AWG. Adjacent to each terminal block, there's a designated shield terminal attachment point, crucial for proper shielding and minimizing interference during operation.

· The TBAI is designed to support various types of analog inputs and outputs, providing compatibility with different transmitter configurations and voltage specifications. This includes support for two-wire, three-wire, four-wire, and externally powered transmitters, as well as voltage inputs spanning ±5 V or ±10 V DC. Additionally, the analog outputs can be configured for either 0-20 mA or 0-200 mA, ensuring adaptability across a wide range of industrial applications.

· The I/O terminal blocks, with their secure fastening and multiple terminals capable of handling sizable wires, facilitate stable and efficient connectivity for the inputs and outputs. The adjacent shield terminal attachment points add an extra layer of protection by enabling proper shielding against interference, ensuring reliable signal transmission and integrity within the system.

Technical Specifications
