GE IS200STTCH2A IS200STTCH2ABA Simplex Thermocouple Input Terminal Board

IS200STTCH2A IS200STTCH2ABA Simplex Thermocouple Input Terminal Board

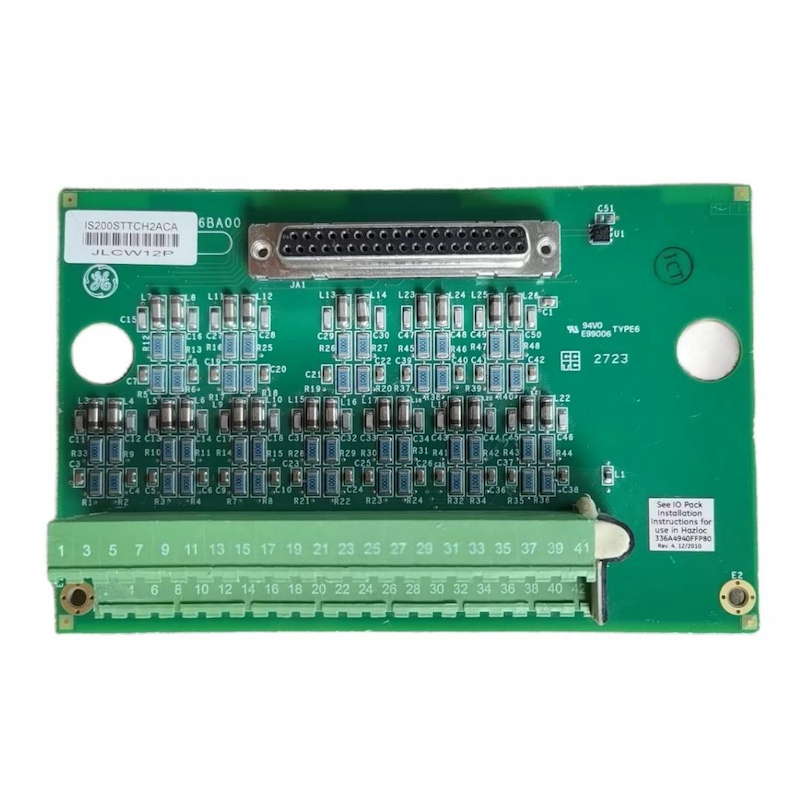

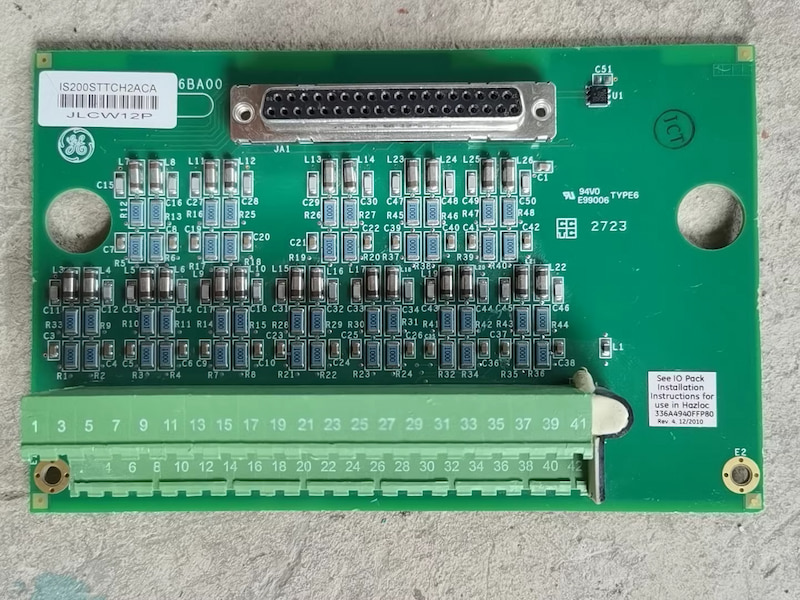

The Simplex Thermocouple Input (STTC) terminal board is a compact terminal board designed for DIN-rail or flat mounting. The board has 12 thermocouple inputs and connects to the PTCC thermocouple processor board or to the YTCC pack on the Mark VIeS SIS. The on-board signal conditioning and cold junction reference is identical to those on the larger TBTC board. High-density Euro-Block type terminal blocks are mounted to the board, and two types are available. An on-board ID chip identifies the board to the processor for system diagnostic purposes.

Installation

The STTC and a plastic insulator mount on a sheet metal carrier, which mounts on a DIN rail. The STTC and insulator mount on a sheet metal assembly that bolts directly in a panel. Thermocouples are wired directly to the terminal block using typical #18 AWG wires. The Euro-block type terminal block has 42 terminals that can be fixed or removable.

Two types of Euro-Block terminal blocks are available as follows:

• Terminal board STTCH1 and STTCS1 has a permanently mounted terminal block with 42 terminals.

• Terminal board STTCH2 and STTCS2 has a right-angle header accepting a range of commercially available plugged terminal blocks, with a total of 42 terminals.
