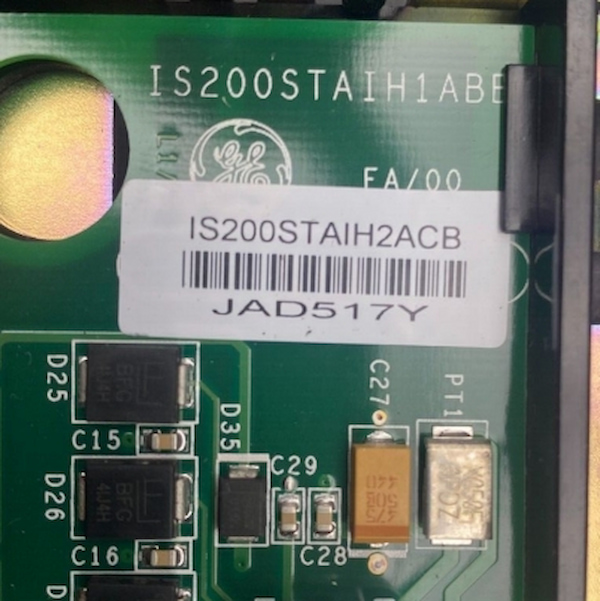

GE IS200STAIH2ACB Simplex Analog Input Terminal Board

GE IS200STAIH2ACB

The IS200STAIH2ACB is a Simplex Analog Input Terminal Board, manufactured and designed by General Electric as part of the Mark VIe Series used in the GE Speedtronic Control System.

The Simplex Analog Input (STAI) terminal board is a compact analog input terminal board that accepts 10 analog inputs and two analog outputs, and connects to the pack. The 10 analog inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters. The two analog outputs are 0-20 mA but one can be jumper configured to 0-200 mA current. Only a simplex version of the board is available.

High-density Euro-block type terminal blocks are used. An on-board ID chip identifies the board to the pack for system diagnostic purposes.

Features:

· Analog Inputs and Outputs: The board accommodates 10 analog inputs and two analog outputs. These inputs can handle various types of transmitters, including two-wire, three-wire, four-wire, or externally powered transmitters.

· Output Configuration: The two analog outputs are typically set to a range of 0-20 mA. However, one of the outputs can be jumper configured to support a wider range of 0-200 mA current output.

· Simplex Configuration: The board is available only in a simplex version, meaning it operates independently without redundant counterparts. While redundancy is not provided at the board level, overall system redundancy may be achieved through other means.

· Terminal Blocks: The board features high-density Euro-block type terminal blocks for secure and reliable connections. These terminal blocks ensure easy and efficient wiring of analog inputs and outputs.

· On-board ID Chip: An on-board identification (ID) chip is integrated into the STAI board. This chip plays a crucial role in system diagnostics by identifying the board to the pack for system diagnostic purposes.

· Programmable Analog Input Controller (PAIC). It provides essential information such as the board's serial number, type, revision number, and connector location, facilitating effective troubleshooting and maintenance.

Technical Specifications
