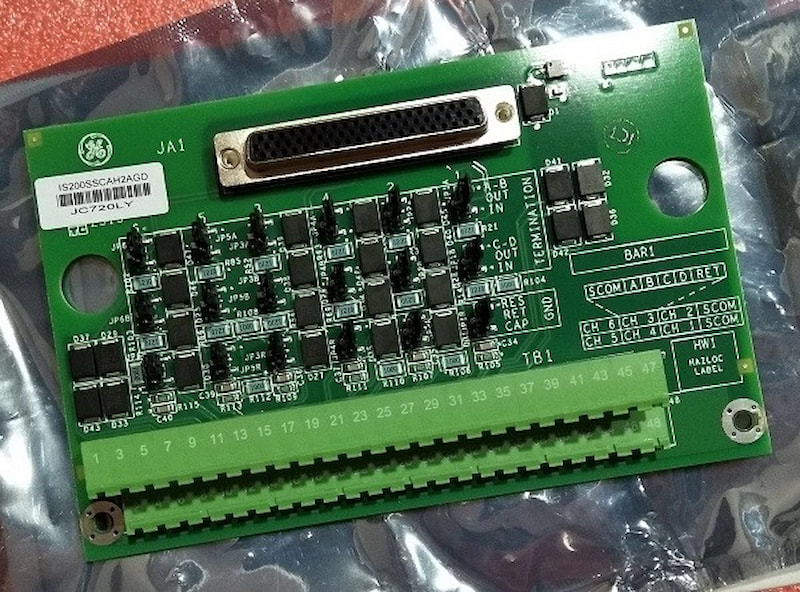

GE IS200SSCAH2AGD Simplex Serial Communication Input/Output Terminal Board

GE IS200SSCAH2AGD

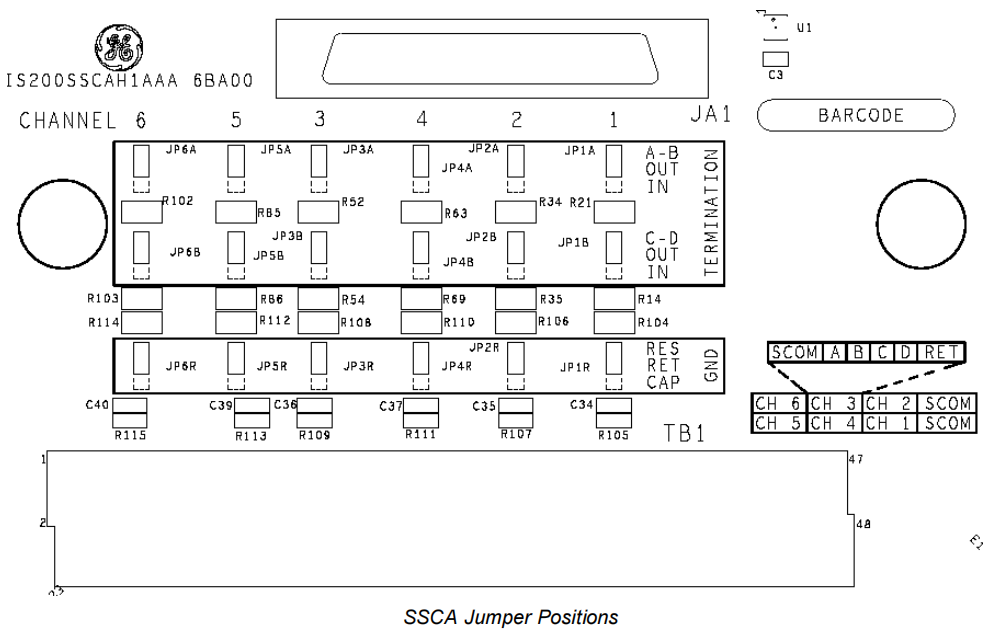

The Simplex Serial Communication Input/Output (SSCA) terminal board is a compact serial communication terminal board that provides up to six communication channels. Each channel may be configured for RS-232C, RS-485, or RS-422 signaling. The PSCA I/O pack works with the SSCA. The I/O pack plugs into the DC-37 pin connector and communicates with the controller over Ethernet.

Installation

The SSCA board is mounted on a DIN-rail using a sheet metal carrier and plastic insulator mount. This assembly will also bolt directly into a cabinet. There are two types of Euro-Block terminal blocks available:

• IS200SSCAH1A has a permanently mounted terminal block with 48 terminals.

• IS200SSCAH2A has a right-angle header accepting a range of commercially available pluggable terminal blocks, with 48 terminals.

Typically, SSCA uses #18 AWG (shielded twisted pair) wiring. The I/O cable shield termination is on an external mounting bracket supplied by the customer or by GE. The chassis ground connection uses E1 and E2 as mounting holes. One of the SCOM terminals (37-48) must be connected to a suitable shield ground.

Technical Specifications
