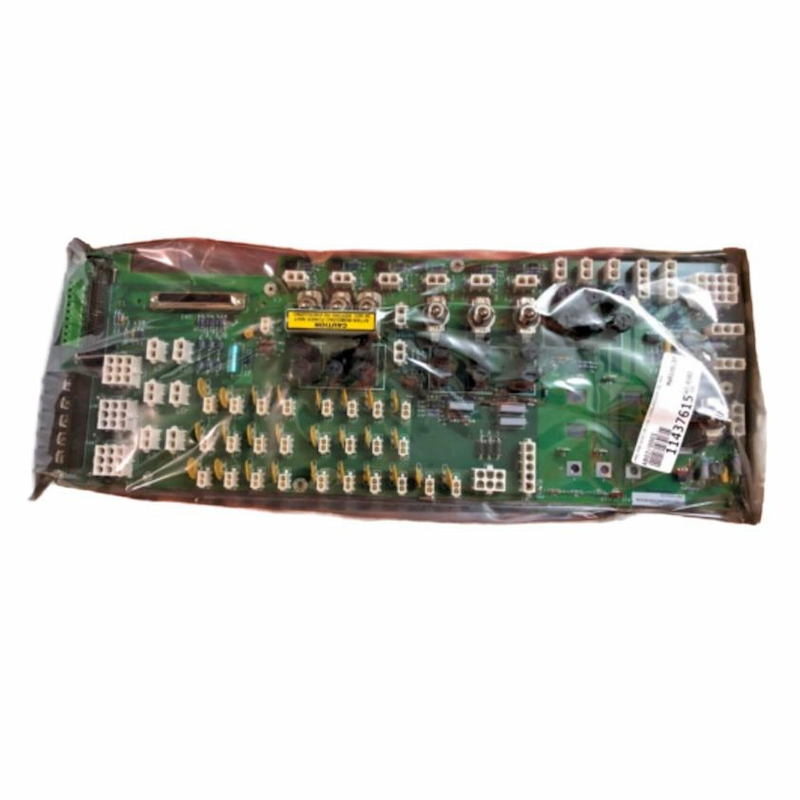

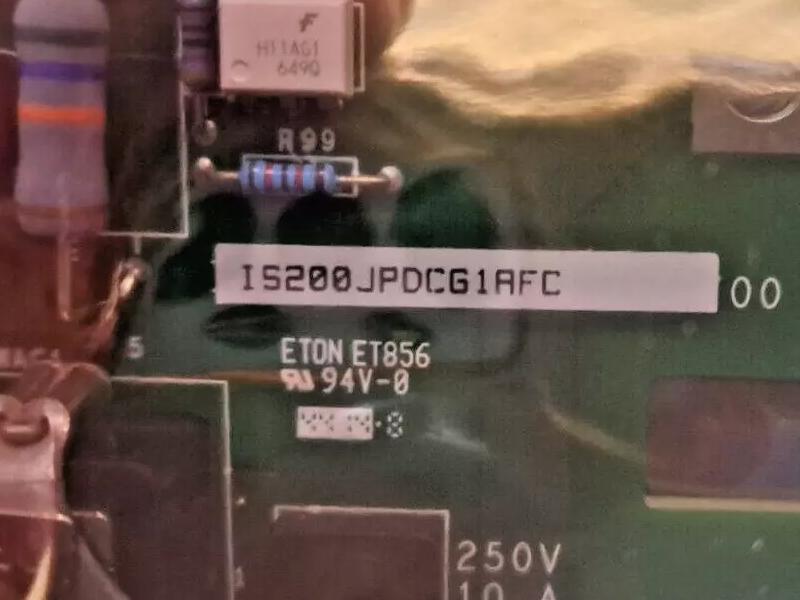

The IS200JPDCG1A is power distribution module manufactured and designed by General Electric as part of the Mark VI Series used in Gas Turbine Control Systems.

The IS200JPDCG1A can host a Power Distribution System Feedback (PPDA) pack used in the Mark*VIe Power Distribution System. JPDC can also receive diagnostic feedback signals from other distribution boards and route these signals to the PPDA I/O pack as well.

The intent is that the PPDA I/O pack should be mounted on the JPDC module. Therefore, no provision is made to transmit diagnostic signals from JPDC to another distribution board.

Installation

The JPDC module is typically mounted vertically with the 115/230 V ac input connector (JAC) at the bottom. It is attached with four screws using the mounting holes located at the top and bottom of the module base.Location within the control cabinet is not critical, however, distribution boards are usually mounted low in the cabinet to facilitate grounding. Refer to the section, Grounding.

The optional PPDA I/O pack is plugged into connector JA1. It is secured to the JPDC base using an angle bracket, held in place with nuts threaded onto studs, that are permanently attached to the base for that purpose.

Diagnostic feedback inputs from other distribution boards are routed to JPDC through a 50-pin ribbon cable attached to connector P2.

Input power connections include:

• Either one or two 125 V dc battery input connections through connectors JD1 and JD2

• 125 V dc DACA module connection made using connector JZ2

• 115 or 230 V ac input applied to connector JAC

Up to three separate 28 V dc sources can be made to connectors JR, JS, and JT respectively. The positive sides of these three inputs are isolated from each other and designated as 28PR, 28PS, and 28PT power busses. If only one 28 V dc input is used, the three power busses can be linked together if desired. Refer to the section, Operation.
