GE IS200HFPAG1ADC High Frequency AC/Fan Power Supply Board

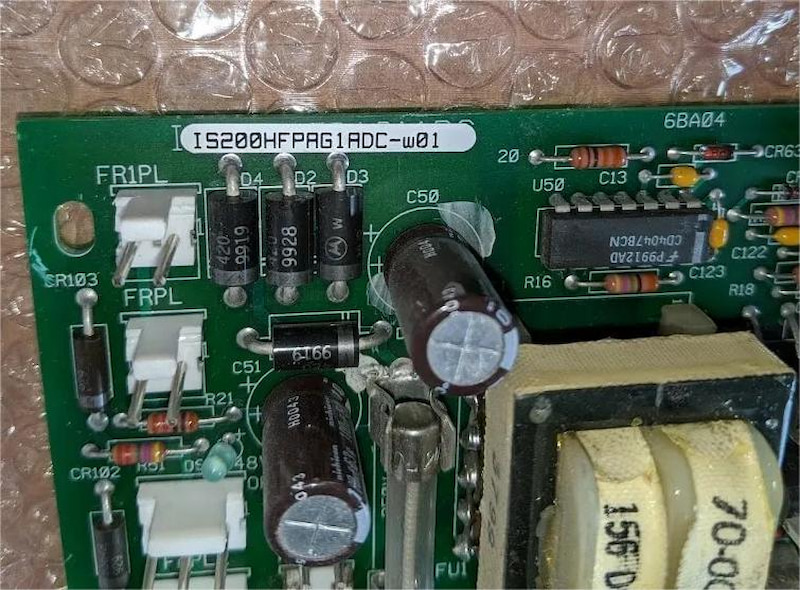

IS200HFPAG1ADC High Frequency AC/Fan Power Supply Board

The IS200HFPAG1ADC High Frequency Ac/Fan Powe Supply Board (HFPA) receives ac or dc input voltage and converts it into the following output voltages:

· 48 V ac (G1)/52 V ac (G2) squarewave

· 48 V dc (G1)/52 V dc (G2)

· Isolated 17.7 V ac (G1)/19.1 v ac (G2) squarewave used to power circuitry isolated from high voltage.

Total output loading for HFPA G1 or G2 boards should not exceed 90 VA.

The HFPA board includes four stab-on connectors for voltage input and eight plug connectors for voltage outputs.

Two LEDs provide status of voltage outputs. Four fuses are also provided for circuitry protection.

Voltage inputs

Power supply input is received from an isolated 230 V ac winding on stab-on terminals ACF1 and ACF2 or from the drive's main dc power supply (dc link) on stab-on terminals DCF1 and DCF2 (230-1000 V dc).

Technical Specifications
