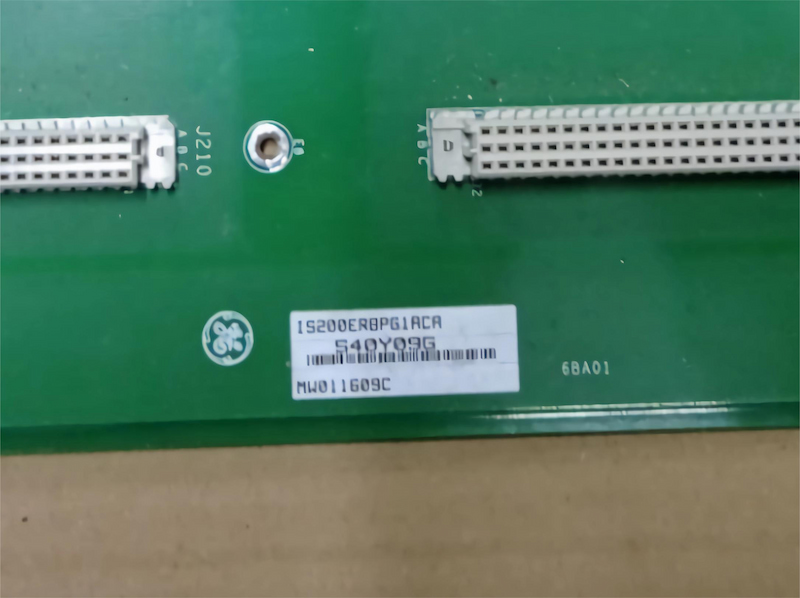

GE IS200ERBPG1ACA Exciter Regulator Backplane

IS200ERBPG1ACA Exciter Regulator Backplane

The IS200ERBPG1ACA Exciter Regulator Backplane provides the connectivity between all the printed circuit boards mounted in it and cable connectors to externally mounted boards/modules that it supports. The ERBP is used in simplex and redundant regulator control applications.

The EPBP holds three independent EPSMGl power supply modules that supply logic level power to the Ml, M2, and C controllers. It also holds three EGDMground detection modules.

EPBP is supplied with 125 V dc power from the EPDMhrough three cable connectors. Backplane connectors Pl and P2 carry power fromthe EPSM tO EPBP. EPBP distributes +5 V de,+15 V de, and +24 V dc power (from EPSM) to the con-trol backplane (EBKP) through cable connectors.

Power is also supplied to external modules as follows: +24 V de to power the de-excitation module, crowbar module, ground detector . dule(EDCF).and the field voltage/current so lated +70 V dc the ExTB and ECTB board.

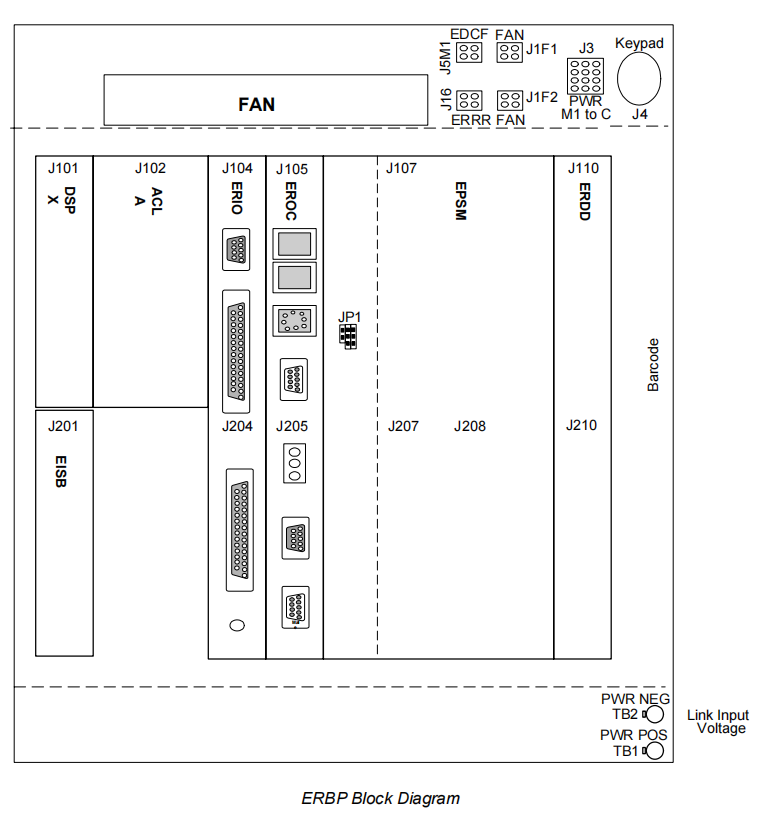

In simplex applications the ERBP contains an ACLA, DSPX, IS200ERIO Exciter Regulator I/O Board (ERIO), EPSM, IS200ERDD IGBT Exciter Regulator Interface and Dynamic Discharge Board (ERDD), IS200EROC Exciter Regulator Options Card (EROC), and the connectors associated with those boards. In redundant applications it contains the same boards and is designated as the M1 control. Optionally, the ERBP can also contain an EISB board. Refer to the following diagram for ERBP layout.

Technical Specifications
