GE IS200DTURH1A IS210DTURH1A Simplex Pulse Rate Input Terminal Board

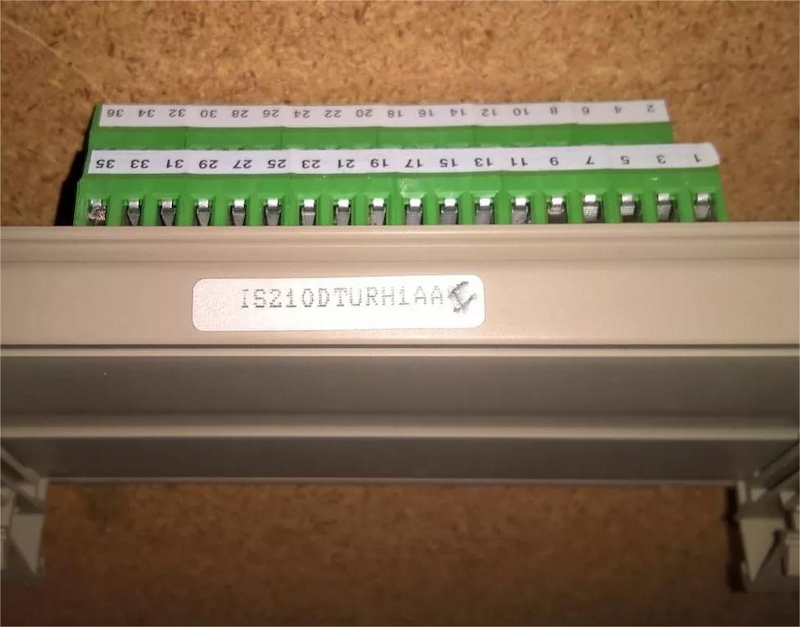

IS210DTURH1A Simplex Pulse Rate Input Terminal Board

The IS210DTURH1A Simplex Pulse Rate Input (DTUR) terminal board is a compact pulse-rate terminal board designed for DIN-rail mounting. The board accepts four passive pulse-rate transducers (magnetic pickups) for speed and flow measurement. It connects to the VTUR processor board with a 37-pin cable and a 15-pin cable. These cables are identical to those used on the larger TTUR terminal board. VTUR only accommodates one DTUR board.

Installation

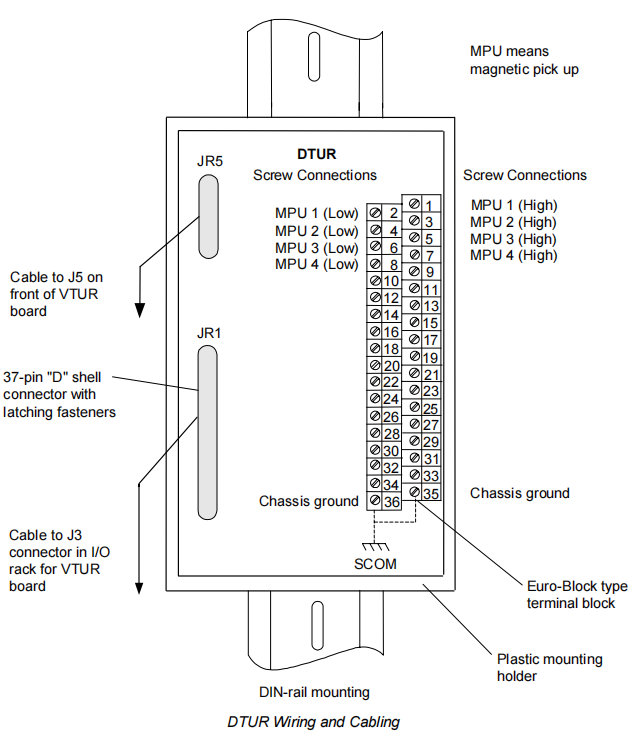

Mount the plastic holder on the DIN-rail and slide the DTUR board into place. DTUR boards can be stacked vertically on the DIN-rail to conserve cabinet space. Connect the wires for the magnetic pickups directly to the terminal block, which has 36 terminals. Typically #18 AWG shielded twisted pair wiring is used. Two screws, 35 and 36, are provided for the SCOM (ground) connection, which should be as short a distance as possible. Connect DTUR to VTUR using the JR1 and JR5 connectors.

Technical Specifications
