GE IS200DTCIH1A IS210DTCIH1A Simplex Contact Input with Group Isolation Terminal Board

GE IS200DTCIH1A IS210DTCIH1A

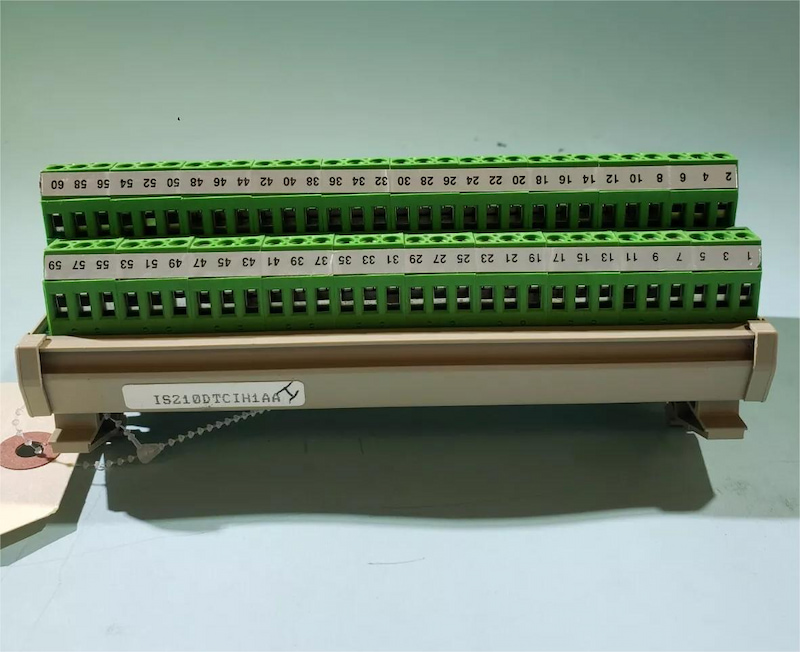

The IS210DTCIH1A Simplex Contact Input with Group Isolation (DTCI) terminal board is a compact terminal board designed for DIN-rail mounting. The DTCI board has 24 contact inputs with a nominal excitation of 24 V dc, and connects to the VCCC (or VCRC) processor board with a single cable. Two DTCI boards can be connected to the VCCC or VCRC for a total of 48 contact inputs. The terminal boards can be stacked vertically on a DIN-rail to conserve cabinet space. Only a simplex version of this board is available.

Installation

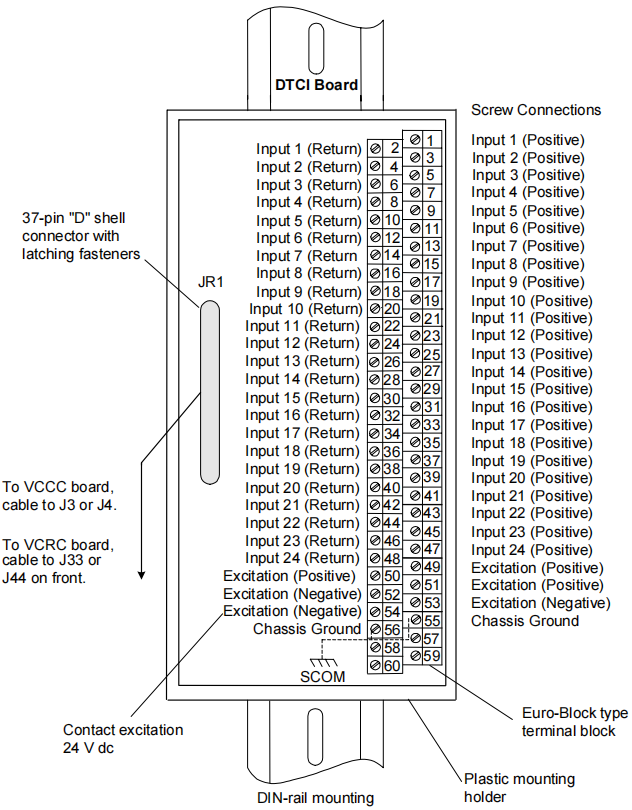

Mount the plastic holder on the DIN-rail and slide the DTCI board into place. Connect the wires for the contact inputs directly to the terminal block. The EuroBlock type terminal block has 60 terminals and is permanently mounted on the terminal board. Typically #18 AWG wires are used. Two screws, 55 and 56, are provided for the SCOM (ground) connection, which should be as short a distance as possible. Six screws are provided for the 24 V dc excitation power.

Technical Specifications
