GE IS200DSPXH1DBD Digital Signal Processor Control Board

IS200DSPXH1DBD Digital Signal Processor Control Board

The IS200DSPXH1DBD Digital Signal Processor Control Board (DSPX) is the primary controller for the bridge and motor regulator and gating functions for Innovation Series drives. It also controls generator field control functions for the EX2100 Excitation Control. The board provides logic, processing, and interface functions.

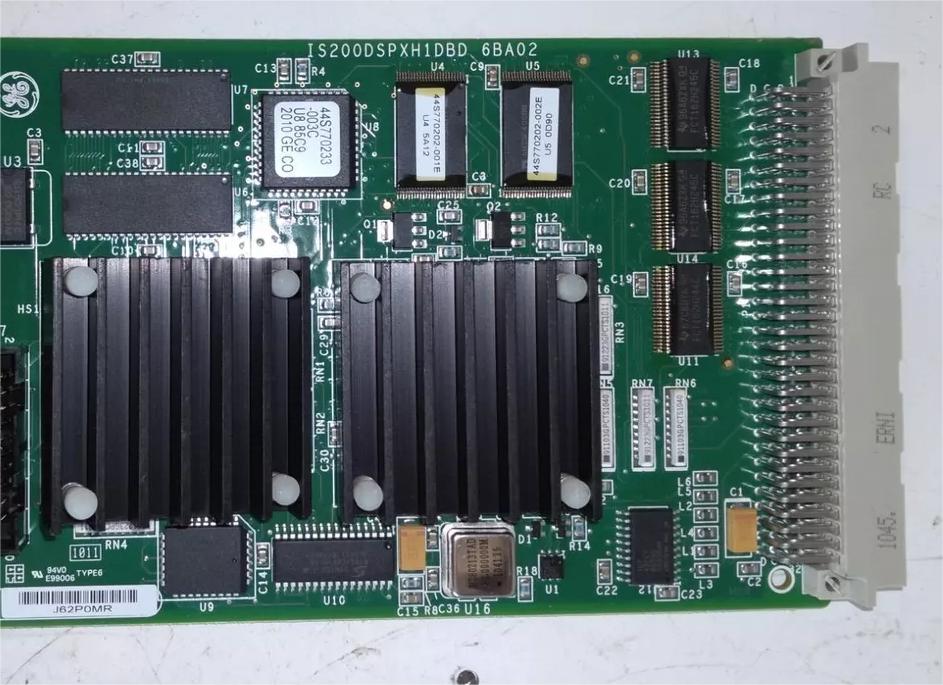

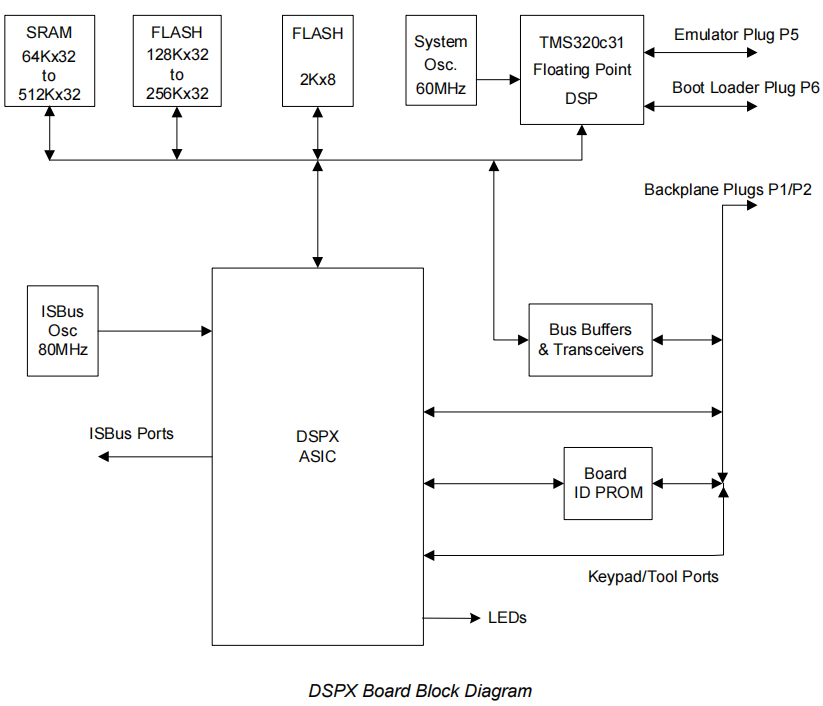

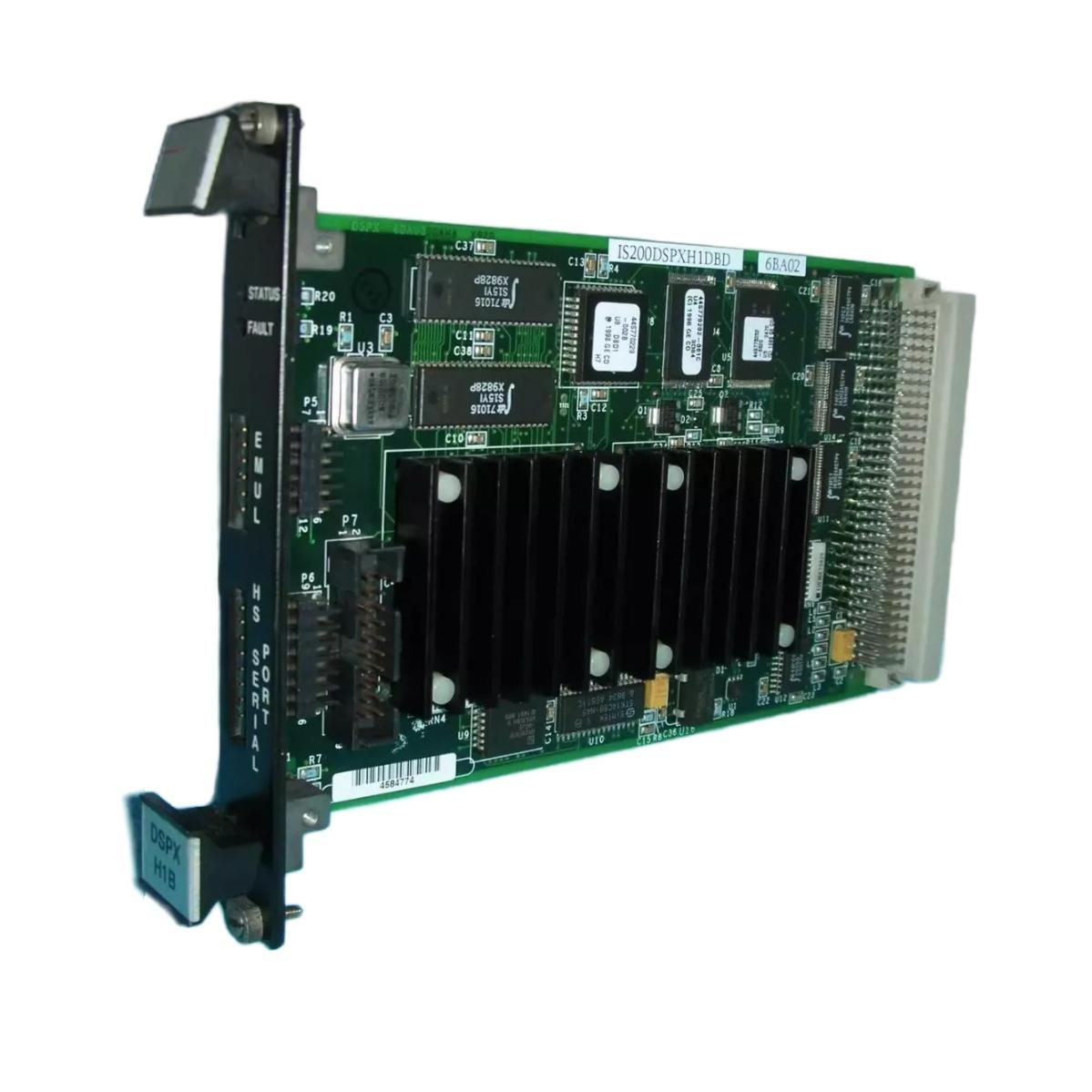

The DSPX board includes a high performance digital signal processor (DSP), standard memory components, and an application specific integrated circuit (ASIC) that performs custom logic functions, as shown below.

Features

The DSPX's Digital Signal Processor (DSP) runs at 60 MHz. Four external interrupts to the DSP are provided during normal operation:

• Stack overflow (INT0)

• Inner loop load pulse (INT1)

• Two configurable inputs (INT2, INT3)

The following types of memory are provided on the DSPX board:

• FLASH memory for DSP boot images, code execution, and configurable item storage, along with system history records.

• RAM for data storage and code execution.

• NVRAM for nonvolatile data storage.

• Add-only memory for board revision identification.

Technical Specifications
