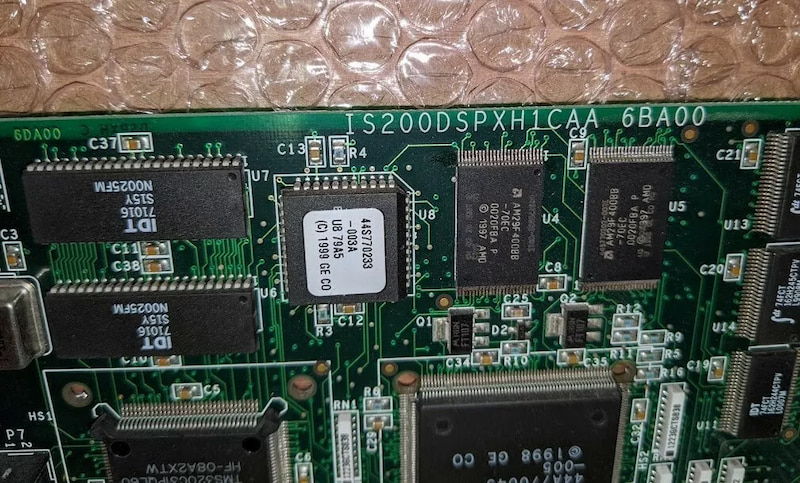

GE IS200DSPXH1CAA Digital Signal Processor Control Board

IS200DSPXH1CAA Digital Signal Processor Control Board

The IS200DSPXH1CAA is the primary controller for the bridge and motor regulator and gating functions for Innovation Series drives. It also controls generator field control functions for the EX2100 Excitation Control System.

The DSPX's Digital Signal Processor (DSP) runs at 60 MHz. Four external interrupts to the DSP are provided during normal operation:

• Stack overflow (INT0)

• Inner loop load pulse (INT1)

• Two configurable inputs (INT2, INT3)

The following types of memory are provided on the DSPX board:

• FLASH memory for DSP boot images, code execution, and configurable item storage, along with system history records

• RAM for data storage and code execution

• NVRAM for nonvolatile data storage

• Add-only memory for board revision identification

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
