GE IS200DAMDG2A IS200DAMDG2AAA Gate Drive Interface Board

IS200DAMDG2AAA Gate Drive Interface Board

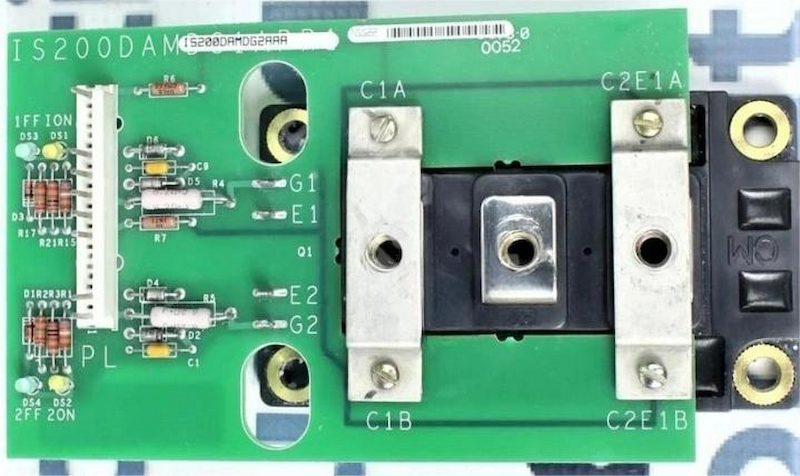

The IS200DAMDG2AAA is a Gate Drive Interface Board, it is manufactured and designed by General Electric as part of the Drive Control Innovation Series used in GE Speedtronic Drive Turbine Control Systems.

The function of the gate drive interface board is to amplify the gate signal that controls the power switch and connects to the machine control system. The interface board has a frame rate of 125, which refers to the frequency at which the board sends signals to the machine. The Powerrex IGBT used in this board is the CM200DY-28H. the board comes with three board/driver units, which means that three separate units can be used to control different aspects of the machinery. The IGBT/phase pin configuration of each unit is a dual, meaning that each unit contains a dual IGBT for controlling one phase pin of the machinery. The Digital Amplifier Module Board is a circuit board that is used as an interface between power switching devices (specifically insulated gate bipolar transistors) and the low voltage driver control rack.

FEATURES

· Interface Between Power Switching Devices and Control Rack

· Power Rating

· Non-Amplifying Interface

· Absence of Fuses, Test Points, and Configurable Items

· Dual-IGBT Module per Phase Leg

· Light-Emitting Diodes (LEDs)

· Connector Pins for IGBT Connections

· Compact and Attachable Design
