GE IS200DAMBG1A IS200DAMBG1ACB Gate Driver Board

IS200DAMBG1ACB Gate Driver Board

The Innovation Series IS200DAMBG1ACB Gate Driver Board (DAMB) provide an interface between the control rack and the power switching devices (IGBT's) of an innovation Series low voltage drive. They include TEDs that indicate the lGBT on/off status.

There are six variations of the gate drive boards, determined by the drive power rating.

· DAMA           620 frame

· DAMB           375 frame

· DAMC           250 frame

· DAMD           G1 for=180 frame; G2 for 125 or 92 G2 frame

· DAME            65 frame

The DAMA, DAMB, and DAMC boards amplify current to provide the final stage of gate drive for one phase leg of the drive's power bridge. They receive a+15/-7.5 power supply input. The DAMD and DAME boards provide an interface without amplification. They have no power input.

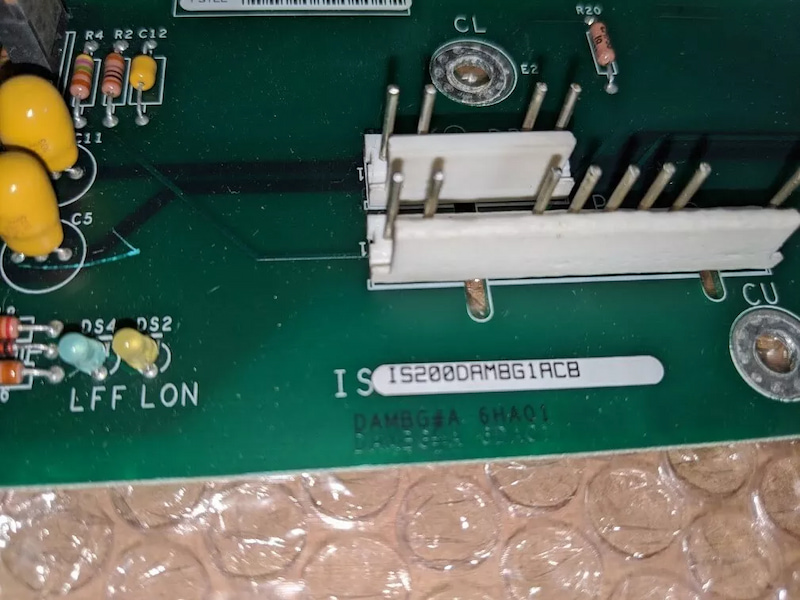

The IS200DAMBG1A is a rectangular circuit board which is small in size. This circuit card has a number of small components located on either side and a few situated in the center. Four large silver components which are made of metal are positioned on the IS200DAMBG1A. Two (2) of these are on the left half and the other two (2) are on the right. A collection of eight (8) capacitors which are solid yellow and round are situated on the IS200DAMBG1A. They are divided into two (2) groups of four (4) capacitors each. These groups are arranged in square formations. Each of these squares has two (2) grey resistors in the center. Many other resistors which are smaller in size but covered in bands that are red, black and yellow can be found on various places on the IS200DAMBG1A. Four light-emitting diodes or LEDs are featured on the IS200DAMBG1A. Two (2) of the LEDs are blue and two (2) of them are yellow.

These LEDs are small in size. On each side of the IS200DAMBG1A, two (2) light-emitting diodes are paired together, one of each color. Near the top left corner of the IS200DAMBG1A, two (2) small integrated circuits are placed paired together. In the center of the IS200DAMBG1A, there are two (2) long white components.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
