The IS200CABPG1BAA is a Control Assembly Backplane (CABP) made by General Electric for its Innovation Series. Topteng Technology can also supply unused and rebuilt parts with warranty. Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.
Brand :
GEPart number :
IS200CABPG1BAADescription :
Control Assembly Backplane BoardOrigin :
USACondition :
NewDimension :
18 cm x 18 cm x 3 cmWeight :
0.5 kgPayment :
Bank Transfer

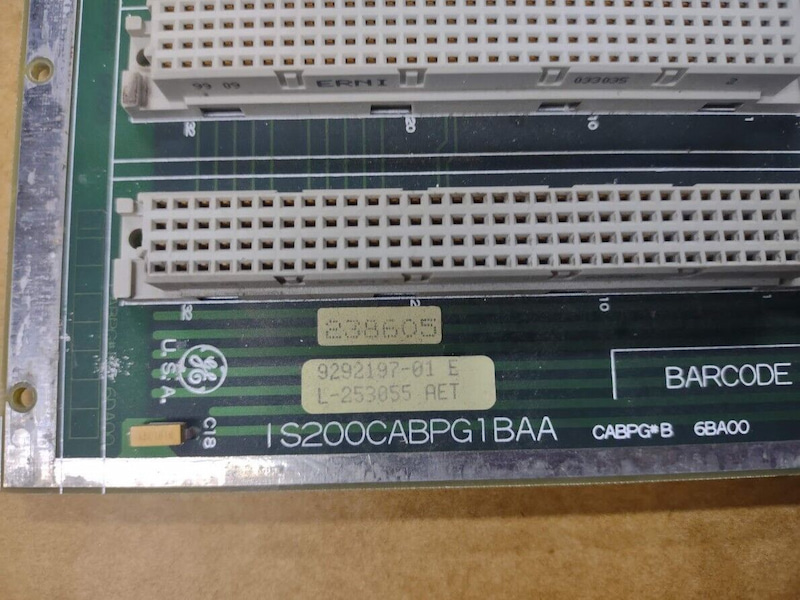

IS200CABPG1BAA Control Assembly Backplane Board
The IS200CABPG1BAA Control Assembly Backplane (CABP) board is a multi-layer printed wiring board that provides the interconnections for the printed wiring boards inserted into it and interfaces to external signals. The boards inserted will vary with the power level and application of the Innovation Series™ drive that the CABP board is part of. These boards are:
· IS200BAIA Bridge Interface Board (BAIA)
· IS215GBIA Auxiliary Genius Interface Module (GBIA), IS215PBIA Auxiliary Profibus Interface Module (PBIA), or IS200ACL_ Application Control Layer Board (ACL_)
· IS200DSPX Digital Signal Process Control Board (DSPX) (Optional)
· IS200RAPA Rack Power Supply Board (RAPA)
· IS200BIC_ Bridge Interface Board (BIC_ )
· IS200BPl_ Drive Bridge Personality Interface Board (BPI_ ) or IS200FOSA Bridge Interface Board (FOSA)
Connectors are also provided for various external interfaces such as user control inputs/outputs (I/O), four front panel meters, diagnostic/configuration tools, a front panel keypad, four ISBus™ ports, and power supply inputs. The CABP board is mounted to the Innovation Series board rack that provides the mounting points for the individual boards.
The CABP board is powered from a single IS200HFPA High Frequency Ac/Fan Power Supply Board (HFPA). Power connections are via atwisted/shielded pair cable for the 48 V ac power and a separate isolated twisted pair cable for the 17 Vac power. Isolation for these cables is 1000 Vdc.
The CABP board connects the isolated power returns to the control cabinet common (CCOM) either through an impedance (resistor/capacitor) or directly. It also connects DCOM to CCOM. Provisions are available to tie cable shields (when applicable) to the chassis directly.
There are two application-specific stab-on connectors each for CCOM and for Chassis Ground (GND). GND is tied to the board rack chassis through the mounting screws. CCOM and GND are tied together through a capacitor. The CABP board CCOM is connected to the control cabinet CCOM via the stab-on connectors.
Technical Specifications
| Manufacturer | GE |
| Part Number | IS200CABPG1BAA |
| Ordering Information | IS200CABPG1B |
| Product Catalog | Mark VI |
| Description | Control Assembly Backplane Board |
| Voltage | 17 Vac |
| Functional acronym | CABP |
| Dimensions | 18 cm x 18 cm x 3 cm |
| Weight | 0.5 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
