GE IS200BICLH1AFD IGBT Drive/Source Bridge Interface Board

IS200BICLH1AFD IGBT Drive/Source Bridge Interface Board

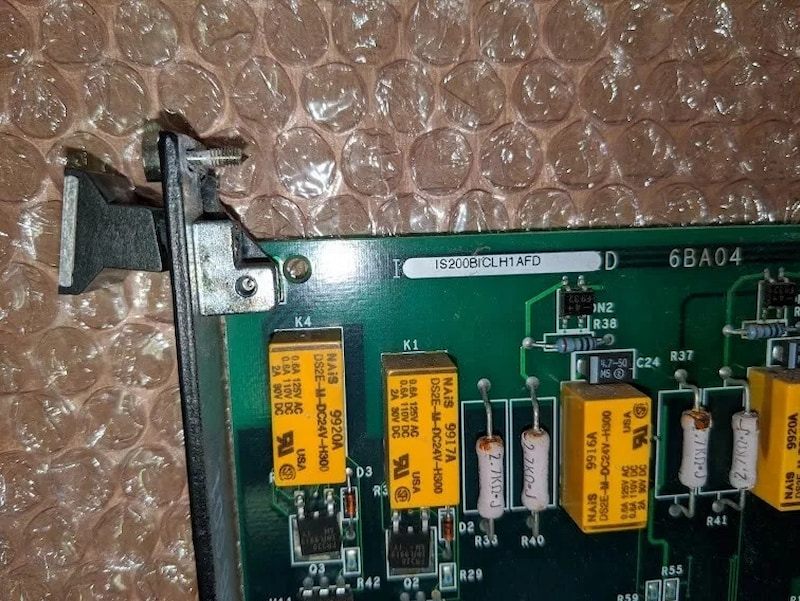

The IS200BICLH1AFD Bridge Interface Board (BICL) provides an interface between the Innovation Series Drive main control board and the Bridge Personality Interface boards (IS200BPIA, IS200BPIB, or IS200SCNV). This board also provides a panel and system fault string interface, bridge and ambient temperature monitoring, and a fan pulse width modulated (PWM) speed control interface. Bridge control, fault string, temperature monitoring, and fan control connections are made through the (P1) connector. The main control board and logic power supply connections are made through the (P2) connector. The BICL board is designed to be mounted in a VME type rack.

Control logic on this board is implemented in an electronically programmable logic device (EPLD) that is configured from the central processing unit (CPU) of the main control board on power-up or a hard reset. At the present time there are two EPLD configurations. The BICLEPLD configuration is required to interface with a BPIA or BPIB card and the SCNVEPLD configuration for the SCNV card.

Technical Specifications
