GE IS200ATBAG1B IS200ATBAG1BAA1 Application I/O Terminal Board

IS200ATBAG1B IS200ATBAG1BAA1 Application I/O Terminal Board

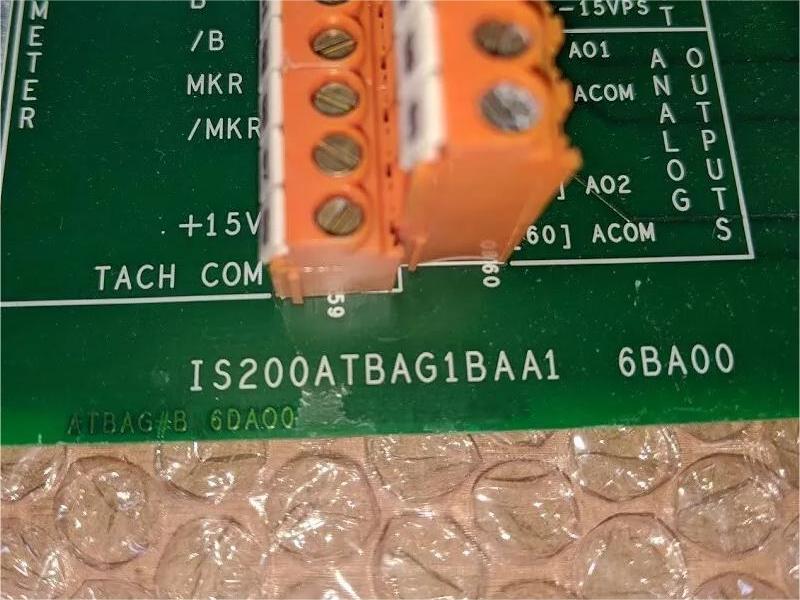

The IS200ATBAG1BAA1 developed by General Electric is an Application I/O Terminal Board designed for the Mark VI series. The Mark VI series is part of the Speedtronic family of gas/steam turbine management. This boards primary function is to provide terminal block connections for the signals found on backplane connectors J6/J7 of the Control Assembly Backplane Board. It is designed with one terminal block that has sixty positions to connect to the J6/J7 connectors on the CABP board.

It also has two lines of thirty connectors that are labeled in blocks as follows:

system fault string, local fault string, digital input, analog inputs, pot, analog outputs, MA pilot, MA fdbk, SSR, relay contacts, isolate power and tachometer.

They are bordered on one edge by a cable shield and on the other by two connectors, which are labeled J6 and J7. J6 is a 36-pin vertical male pin connector (4 x 9.) J7 is a 25-pin vertical male pin connector. It installs with nine metal screws and washers into standoffs and it is important to fully tighten the screws to secure the board in place.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
