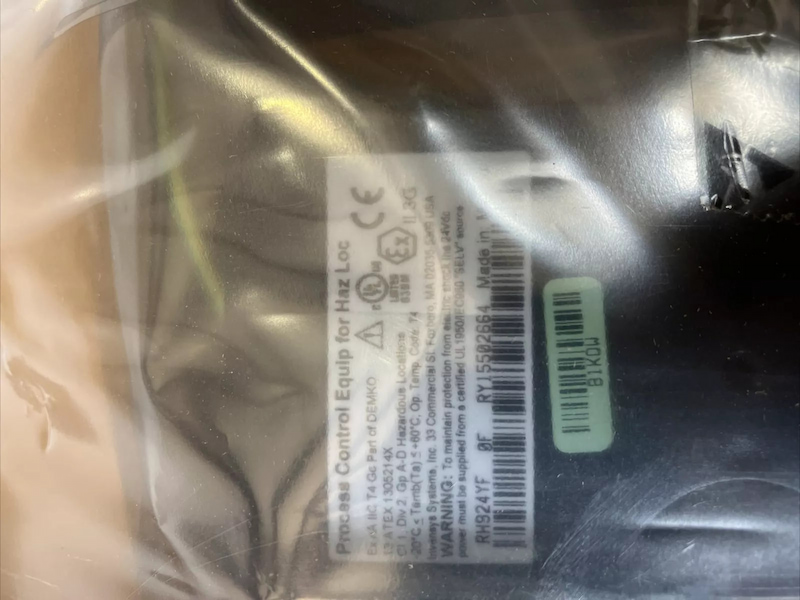

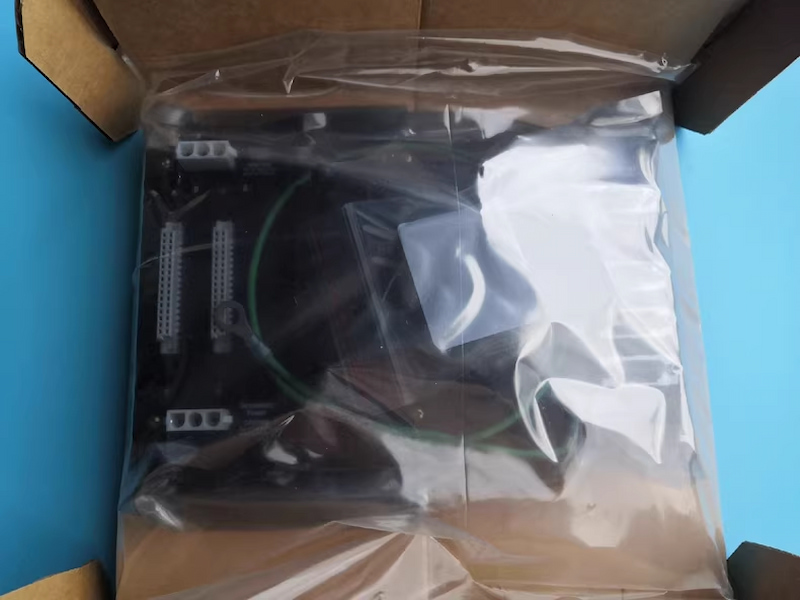

Foxboro FCP280 RH924YF Vertical-Mounted Baseplate

Foxboro FCP280 RH924YF Vertical-Mounted Baseplate

The RH924YF is a 2-position baseplates support a non-faulttolerant single or fault-tolerant pair of FCP280s, as well as two copper (RH924UQ) or fiber (RH924WA) adapters, required for connection to the Foxboro Evo Control Network.

The FCP280 baseplate provides support for four HDLC field buses (PIO channels). Field bus port 1 can be terminated, if needed, by the DIP switches provided on the baseplate. Field bus ports 2-4 are internally terminated in the FCP280 baseplates and no external hardware or switches are required for their termination.

There is also an optional dual cable version of this baseplate that supports four PIO channels but has separate A versus B bus connectors. The dual cable baseplate also has dedicated connectors for the optional Time Strobe inputs. The dual cable baseplate can be installed on either a horizontal or vertical DIN rail, provided that the baseplate itself remains in the horizontal orientation.

The FCP280 baseplates can be added in the field to existing or new configurations. They have similar dimensions as the FCP270 Only 2-position baseplates for ease of replacement.

When upgrading existing CP60 systems to use FCP280s, you can recover an additional two FBM positions after removal of the old FCM10E/FCM10Efs.

Features

• Connection for optional GPS time strobe.

· Primary and secondary 24 V dc power and communications connections

· Keyed positions dedicated to FCP280 individual CP-type modules

· Passive backplane to increase system reliability.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
