The Epro PR6426/010-110 is commonly used to measure vibration of machine shafts, eccentricity, thrust (axial displacement), differential expansion, valve position, and air gaps.
Brand :
Emerson EPROPart number :
PR6426/010-110Description :
32mm Eddy Current SensorOrigin :
GermanyCondition :
NewDimension :
5 mWeight :
1 kgPayment :
Bank Transfer

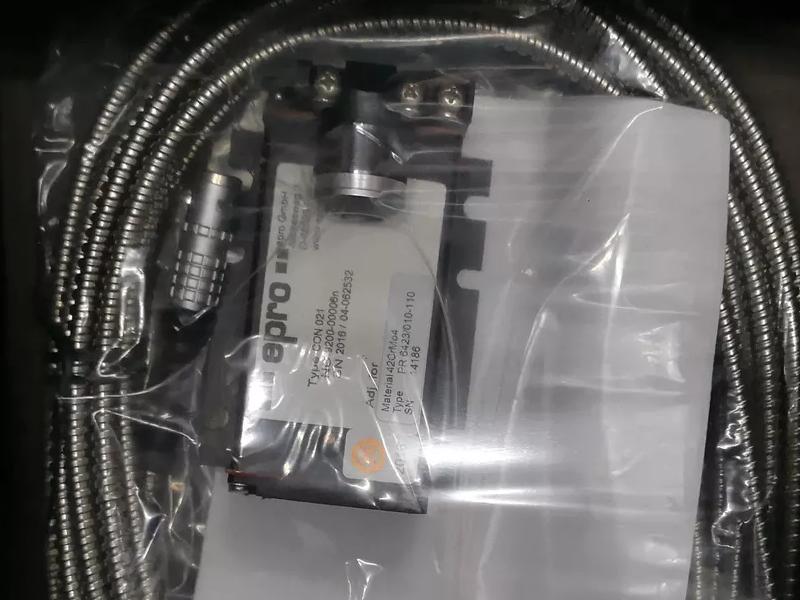

EPRO PR6426/010-110 32mm Eddy Current Sensor
The Epro PR6426/010-110 is a Non-contact sensor designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement: position, eccentricity and motion.
Technical Parameters
· Measuring range: 8 mm, max. 24 mm
· Sensor head diameter: 32 mm
· Frequency range: 0 ... 20 kHz (-3dB)
· Operational temperature: –35...+180 °C
· Extended range up to 24 mm available by converter configuration
· Mounting base: 40x80 mm
· Cable length selectable 4...10 m
· ATEX certified
· It is designed for connection to EZ1000, CON011, CON031, CON041 converters or directly to AMS3000 series modules
| Dynamic Performance | |
| Sensitivity | 2 V/mm (50.8 mV/mil) ≤ ±1.5% max |
| Air Gap (Center) | Approx. 5.5 mm (0.22”) Nominal |
| Long Term Drift | < 0.3% |
| Range Static | ±4.0 mm (0.157”) |
| Target | |
| Target/Surface Material | Ferromagnetic Steel (42 Cr Mo4 Standard) |
| Maximum Surface Speed | 2,500 m/s (98,425 ips) |
| Shaft Diameter | ≥200 mm (7.87”) |
| Environmental | |
| Operating Temperature Range | -35 to 175°C (-31 to 347°F) |
| Temperature Excursions <4 Hours | 200°C (392°F) |
| Maximum Cable Temperature | 200°C (392°F) |
| Temperature Error (at +23 to 100°C) | -0.3%/100°K Zero Point |
| <0.15%/10°K Sensitivity | |
| Pressure Resistance To Sensor Head | 6,500 hpa (94 psi) |
| Shock and Vibration | 5g (49.05 m/s2) @ 60Hz @ 25°C (77°F) |
| Physical | |
| Material | Sleeve – Stainless Steel, Cable – PTFE |
| Weight (Sensor & 1M Cable, no Armor) | ~800 grams (28.22 oz) |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
