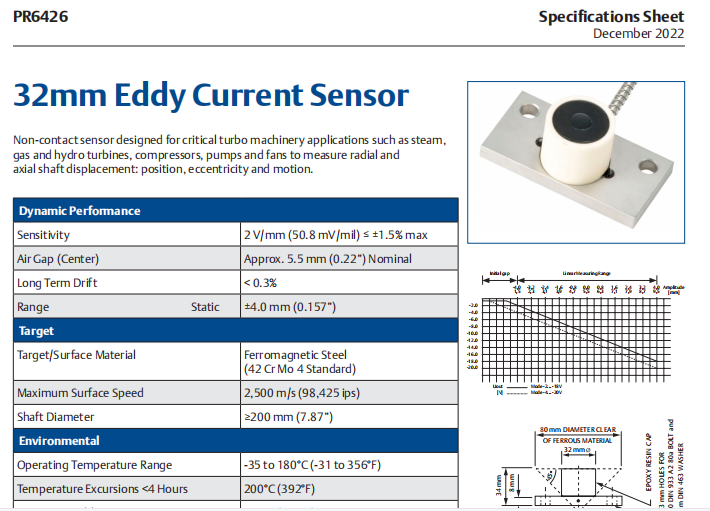

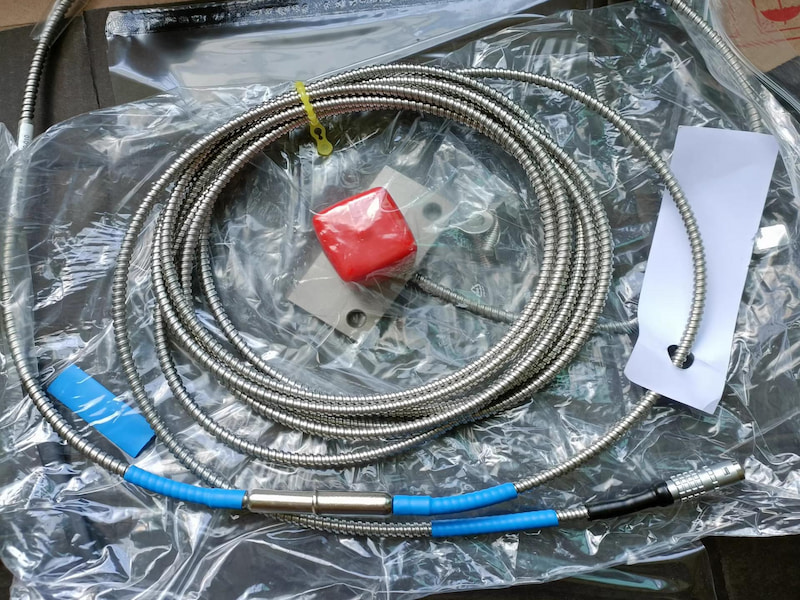

Emerson EPRO PR6426/010-140 32mm Eddy Current Sensor

EPRO PR6426/010-140 32mm Eddy Current Sensor

The PR6426/010-140  is a non-contact eddy current transducer with a rugged construction and is designed for extremely critical turbo machinery applications such as steam, gas, compressor and hydro turbo machinery, blowers and fans.

The purpose of a displacement probe is to measure position or shaft movement without contacting the measured surface – the rotor. In the case of sleeve bearing machines, the shaft is separated from the bearing material by a thin film of oil. The oil acts as a dampener and therefore the vibration and position of the shaft are not transmitted through the bearing to the bearing case.

The use of case vibration sensors is discouraged for monitoring sleeve bearing machines since the vibration produced by shaft motion or position is greatly attenuated through the bearing oil film. The ideal method of monitoring shaft position and motion is by mounting a non contact  eddy sensor through the bearing, or inside the bearing, measuring the shaft motion and position directly.

The PR6426/010-140 is commonly used to measure vibration of machine shafts, eccentricity, thrust (axial displacement), differential expansion, valve position, and air gaps.

· Non-contact measurement of static and dynamic shaft displacement

- Axial and radial shaft displacement (position, differential expansion)

· Meets international standards, DIN 45670, ISO 10817-1 and API 670

· Rated for explosive area, Eex ib IIC T6/T4

· Other displacement sensor selections include PR 6422, 6423, 6424 and 6425

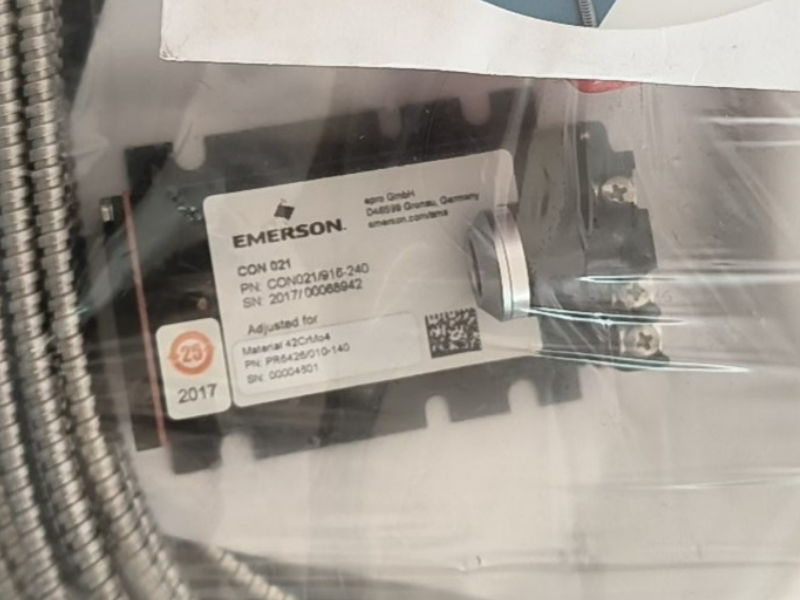

· Select sensor driver such as CON 011/91, 021/91, 041/91, and cable for complete transducer system

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
