Products
The EC318 922-318-000-002/5000 is an Cable Assembly with a 2-pin MIL-C/DTL-5015 type connector and RADOX® 125 2-wire cable with protection tube.
Brand :
VMPart number :
EC318 922-318-000-002/5000Description :
Cable AssemblyOrigin :
SwitzerlandCondition :
NewDimension :
5 mWeight :
1.2 kgPayment :
Bank Transfer
EC318 922-318-000-002/5000 Cable Assembly
Functional Description
The EC 318 cable assembly designed for industrial or laboratory environments, these cable assemblies
facilitate the connection of an accelerometer with integrated electronics and MIL-C-5015 type connector.
The EC 318 cable assembly incorporates a 22 AWG (0.34 mm²) shielded, twisted pair cable. It is terminated
by an MS3106F10SL-4S connector at one end and has a pigtail termination at the other.
Features
• Extension cable for CE-type accelerometer
• Temperature range -54°C to +120°C
• Mates to transducer with MIL-C-5015 connector (or equivalent)

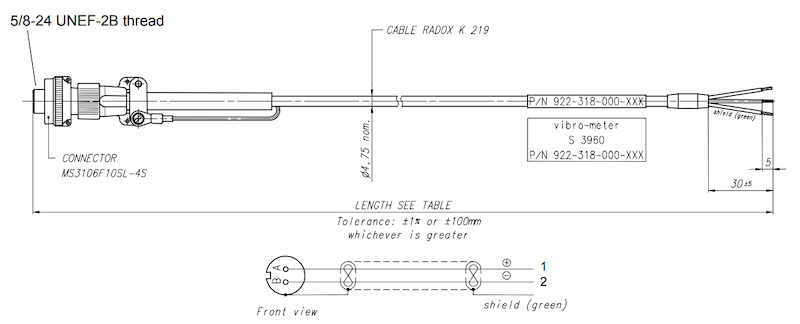

Mechanical Drawing
Technical Specifications
| Manufacturer | VM |
| Part Number | EC318 |
| Ordering Information | 922-318-000-002/5000 |
| Product Catalog | Vibration Monitoring |
| Description | Cable Assembly |
| Voltage | 24 Vdc |
| Current | 1 A |
| Dimensions | 5 m |
| Weight | 1.2 kg |
