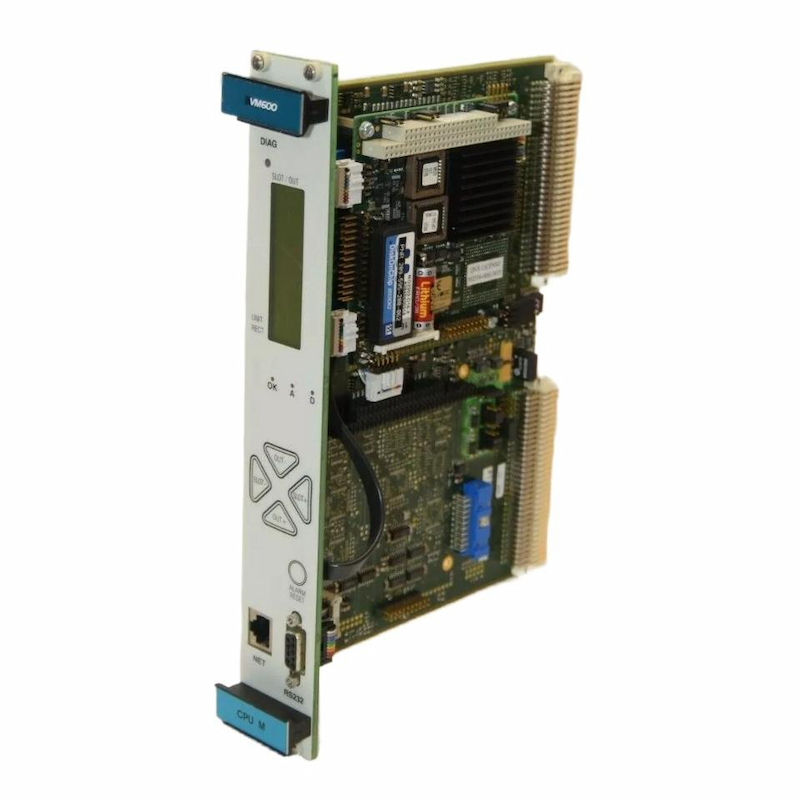

CPUM 200-595-075-122 Modular CPU Card

CPUM 200-595-075-122 Modular CPU Card

Depending on the system requirements, the CPUM can be used alone in the rack (installed in the front card cage) or in conjunction with the associated IOCN input/output card (installed in slot 0 of the rear card cage, directly behind the CPUM).

The modular, highly versatile design of the CPUM means that all VM rack configuration, display and communications interfacing can be performed from a single card in a“networked”rack. The CPUM card acts as a“rack controller”and allows an Ethernet link to be established between the rack and a computer running one of the VM MPSx software packages (MPS1 or MPS2).

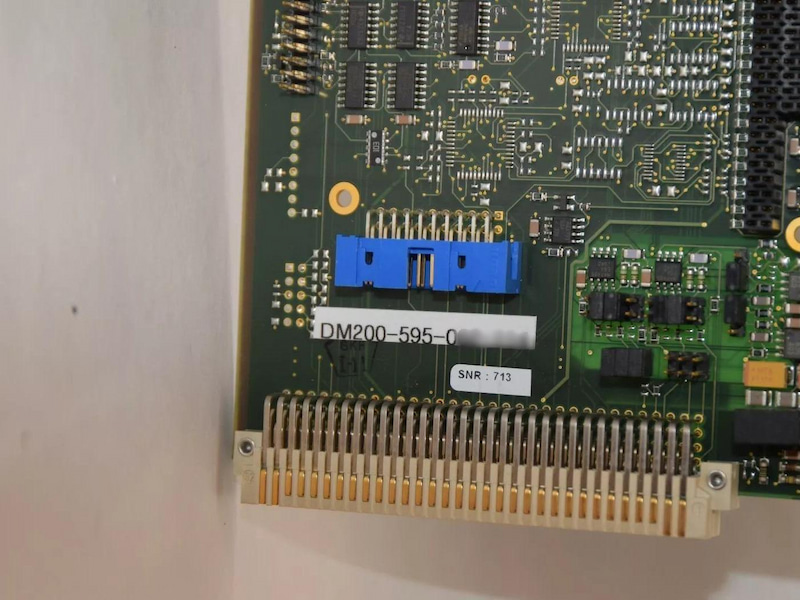

The CPUM card consists of a carrier board with two PC/104 type slots that can accept different PC/104 modules: a CPU module and an optional serial communications module.

All CPUM cards are fitted with a CPU module that supports two Ethernet connections and two serial connections. That is, both the Ethernet redundant and serial redundant versions of the card.

Different versions of the modular CPU card:

– Ethernet redundant

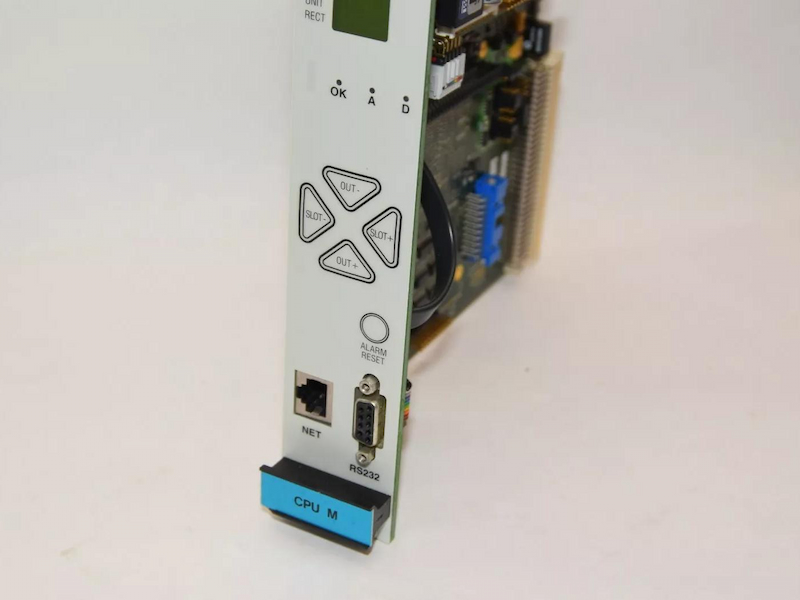

Modular CPU card with a CPU module that supports two Ethernet interfaces and two serial interfaces.This CPUM supports Ethernet interfaces on the front panel (CPUM) and the rear panel (IOCN), a serial interface (RS-232) on the front panel (CPUM) and a serial interface (isolated RS-232/RS-485) on the rear panel (IOCN). A front panel display and an operating system licence are also included.

– Ethernet redundant varnished

Same as the Ethernet redundant version, with a conformal coating for additional environmental protection.

– Serial redundant

Modular CPU card with a CPU module that supports two Ethernet interfaces and two serial interfaces, and a serial communications module that supports additional serial interfaces. This CPUM supports Ethernet interfaces on the front panel (CPUM) and the rear panel (IOCN), a serial interface (RS-232) on the front panel (CPUM) and a serial interface (isolated RS-232/RS-485) on the rear panel (IOCN). It also supports two additional serial interfaces (RS-422/RS-485) on the rear panel (IOCN). A front panel display and an operating system licence are also included.

Technical Specifications
