CP232 143-232-000-232 Piezoelectric Pressure Transducer

CP232 143-232-000-232 Piezoelectric Pressure Transducer

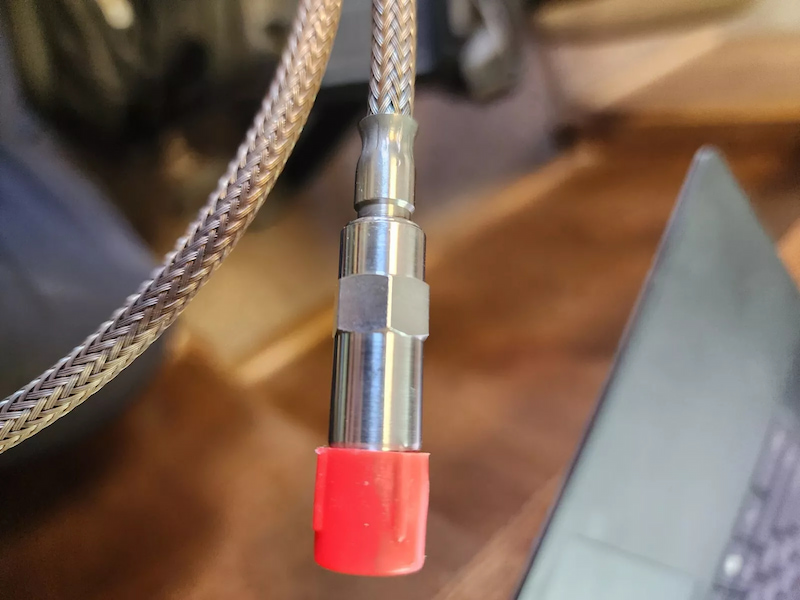

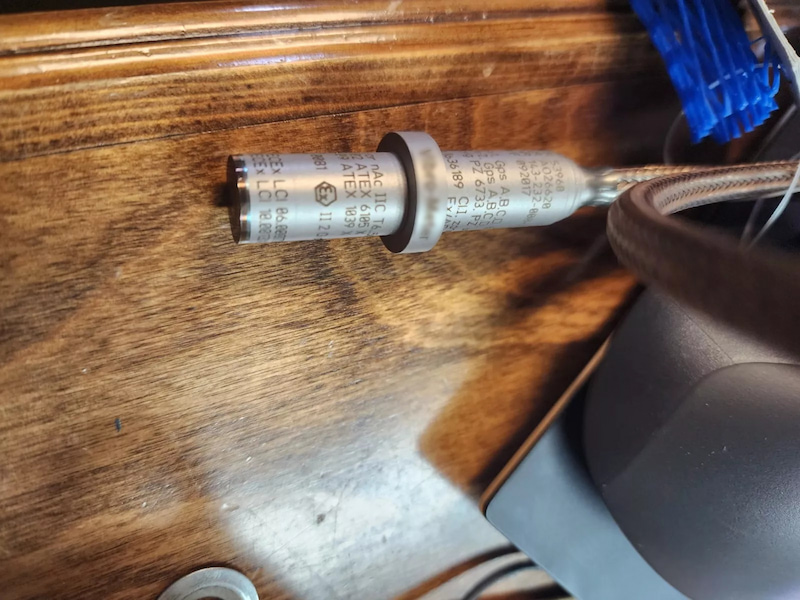

The CP232 is belonged to CP series from VM is a line of piezoelectric pressure transducers for extreme applications. The high quality sensors offer proven durability and accuracy. The dynamic pressure sensors are suitable for extreme temperatures and offer a high sensitivity. The series has all relevant certifications, including ATEX.

It is a fast pressure transducer, it has a high-pressure-and-temperature-resistant RCP.

The high-temperature fast-pressure probe equipment is the measurement chain presented in paper GT2016-56166 [19]. The large optical interfaces that surrounds it is made up of quartz glass SQ1 and was casted for this purpose. Its conical shape allows to resist the strains better due to the dilatation of the metal part. The depth ensures a temperature stoppage so that the air-cooled optical sensors placed behind can operate below 80 ◦C. The sensor board is a Polyamid (PA) part produced with additive manufacturing. It holds the sensors and filters in place, organises the cabling, and distributes the cooling air that flushes the sensors first and the hot surfaces second. Due to the stacking effect, the same part is designed to contain any piece of glass as well as the pressure probe in case of glass rupture. The sealants are high-temperature mortar in the front and high temperature adhesives in the rear. Future versions will include a sapphire glass mounted in the metal frame of the probe, possibly shaped as a Fourier lens to maximise light gathering.

FEATURES

- Internal case insulation

- Frequency response: 2 Hz to 10,000 Hz ±5%

- Sensitivity: 800 pC/bar

Technical Specifications

Please contact us to get the product manual

  One year warranty on sold items

   Available for dispatch immediately
