CA202 144-202-000-205 Piezoelectric Accelerometer

CA202 144-202-000-205 Piezoelectric Accelerometer

The CA202 sensor features a symmetrical shear mode polycrystalline measuring element with internal case insulation in an austenitic stainlesssteel case (housing).

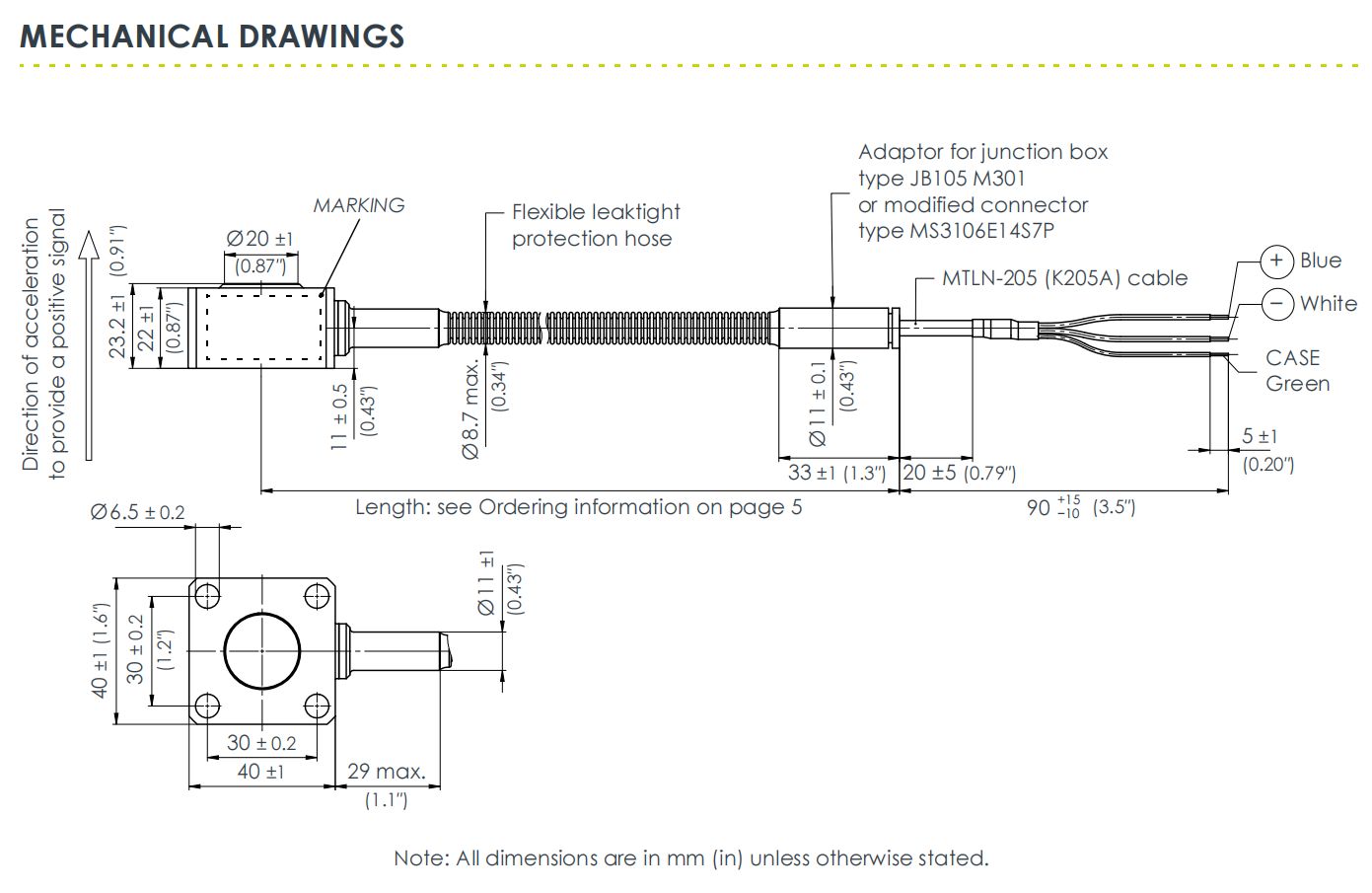

The CA202 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection hose (leaktight) which is hermetically welded to the sensor to produce a sealed leak tight assembly.

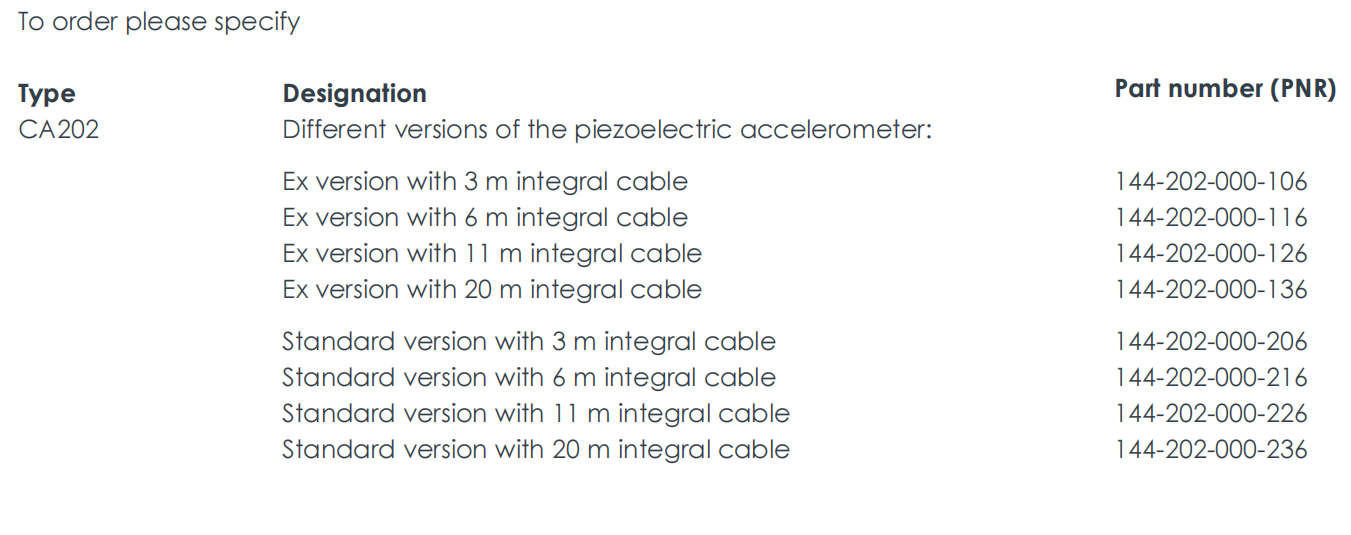

The CA202 piezoelectric accelerometer is available in different versions for different industrial environments: Ex versions for installation in potentially explosive atmospheres (hazardous areas) and standard versions for use in nonhazardous areas.

The CA202 piezoelectric accelerometer is designed for heavy-duty industrial vibration monitoring and measurement.

KEY FEATURES AND BENEFITS

• From the vibro-meter® product line

• High sensitivity: 100 pC/g

• Frequency response: 0.5 to 6000 Hz

• Temperature range: −55 to 260°C

• Available in standard versions and Ex versions certified for use in potentially explosive atmospheres

• Symmetrical sensor with internal case insulation and differential output

• Hermetically welded austenitic stainless-steel case and heat-resistant stainless-steel protection hose

• Integral cable

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
