CA134 144-134-000-613 Piezoelectric Accelerometer

CA134 144-134-000-613 Piezoelectric Accelerometer

The CA134 is a high-temperature piezoelectric accelerometer, designed for the long-term measurement of vibration over wide temperature ranges in extreme environments

The CA134 sensor features a compression-mode measuring element with internal case insulation in a high-temperature nickel alloy case (housing).

The CA134 is available as a sensor only or fitted with an integral mineral-insulated (MI) cable that is protected by a double braid and terminated with a high-temperature connector.

The sensor and cable are hermetically welded to produce a sealed leak tight assembly. The sensor only version allows different cable assemblies to be used depending on the environmental/temperature requirements of the application.

All versions of the CA134 are Ex certified for installation in potentially explosive atmospheres (hazardous areas).

The piezoelectric material used and the design of the CA134 ensures an extremely stable and reliable device that is suitable for the long-term monitoring and measurement of vibration over wide temperature ranges in severe environments, such as gas turbines or cryogenic applications.

Features

• Sensitivity: 10 pC/g

• Frequency response: 0.5 to 6000 Hz

• Temperature range:

−54 to 500°C

−253 °C (20 K) to 500°C for cryogenic version

• Ex certified for use in hazardous areas (potentially explosive atmospheres)

• Symmetrical sensor with internal case insulation and differential output

• Hermetically welded high-temperature nickel alloy case

• Available as a sensor only or with an integral cable

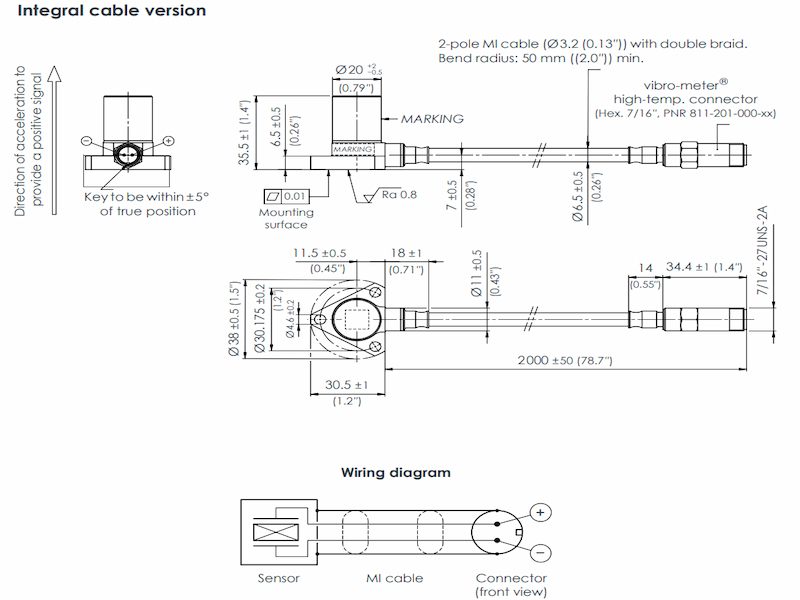

Mechanical Drawings

Ordering Information

Technical Specifications
