The 286566-01 is an Overspeed Detection Module manufactured and designed by Bently Nevada as a part of 3500/54M Series used in overspeed detection applications.
Brand :
Bently NevadaPart number :
3500/54M 286566-01Description :
Overspeed Detection ModuleOrigin :
USACondition :
NewDimension :
241.3 mm x 24.4 mm x 241.8 mmWeight :
0.82 kgPayment :
Bank Transfer

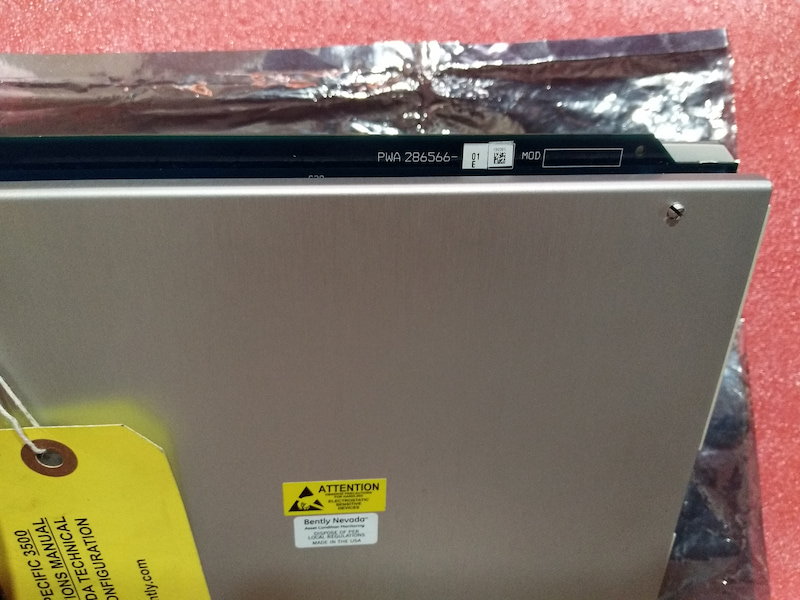

Bently Nevada 3500/54M 286566-01 Overspeed Detection Module
Functional Description
The 3500/54M Overspeed Detection monitoris a one-channel monitor designed to be used in either two or
three monitor groups for overspeed detection applications. The monitor accepts a speed pulse input from
either a proximity transducer or a magnetic pickup and uses the input to drive alarms. The monitor provides
fourfast-response alarm relay outputs for machinery protection purposes. The 3500 Overspeed Detection
System can be configured in a two monitor set forredundant detection capability, or a three monitor set for
triplicated Overspeed detection.
The primary purpose of the 3500/54M Overspeed Detection System is to provide:
· machinery protection by continuously comparing current machine speed against configured alarm
setpoints to drive alarms.
· essential machine speed information to both operator and maintenance personnel.
Technical Specifications
| Manufacturer | Bently Nevada |
| Part Number | 286566-01 |
| Ordering Information | 286566-01 |
| Product Catalog | 3500/54M |
| Description | Overspeed Detection Module |
| Voltage | 24 Vdc |
| Current | 100 mA |
| Dimensions | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight | 0.82 kg |
