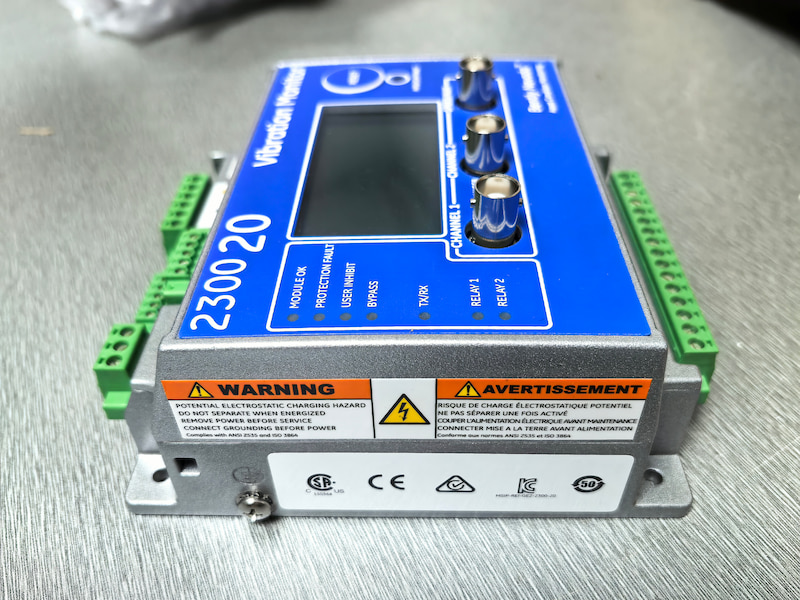

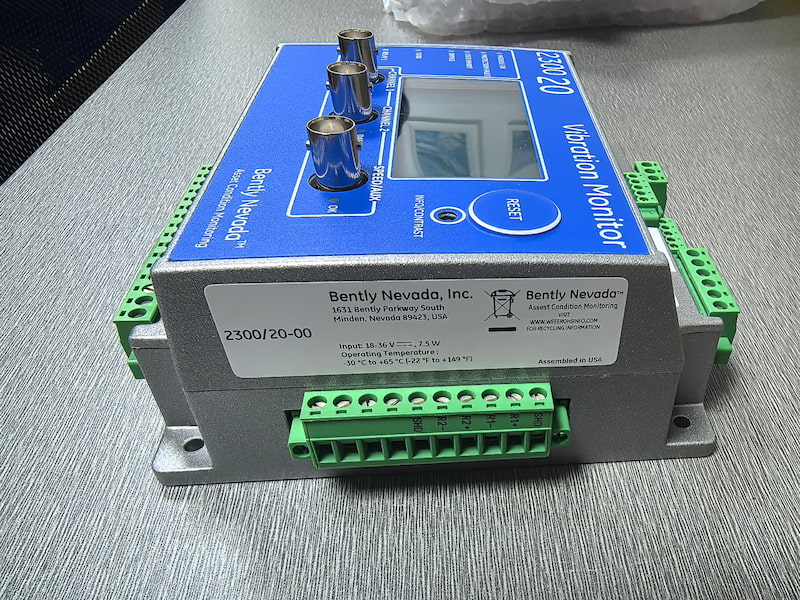

Bently Nevada 2300/20-00 Vibration Monitor

Bently Nevada 2300/20-00 Vibration Monitor

Functional Description

The 2300/20-00 Vibration Monitors provide cost-effective continuous vibration monitoring and protection

capabilities for less critical and spared machinery. They are specifically designed to continuously monitor and

protect essential medium to low criticality machinery in a wide range of industries including: oil & gas, power

generation, water treatment, pulp and paper, manufacturing, mining, cement, and other industries.

Key Features

· Two 4-20 mA outputs with internal current loop power supply.

· Continuous monitoring and protection

· Two acceleration/velocity/proximity inputs with synchronized sampling for advanced diagnostics.

· One dedicated speed channel supporting Proximity probes, Magnetic pickup and Proximity switch type

sensors.

· Supports process variable on all three input channels.

· Key measurements (Acceleration pk, Acceleration rms, Velocity pk, Velocity rms, Displacement pp,

Displacement rms, Speed) real-time provided with alarm configuration.

· Each channel has one measurement group, and can add additional two bandpass measurements and

several nX measurements (depends on the device availability).

· LCD and LED for real time value and status display.

· Ethernet 10/100 Base-T communication for configuration using Bently Nevada Monitor Configuration

software (Included) with RSA encryption.

· Local contacts for positive engagement of monitor bypass, configuration lockout, and latched alarm/relay

reset.

· Two relay outputs with programmable setpoints.

· Three buffered transducer outputs (including Keyphasor signal) providing short circuit and EMI protection.

Buffered outputs for each signal are through BNC connectors.

· Modbus over Ethernet.

· Alarm Data Capture
